Relay Box: Locations

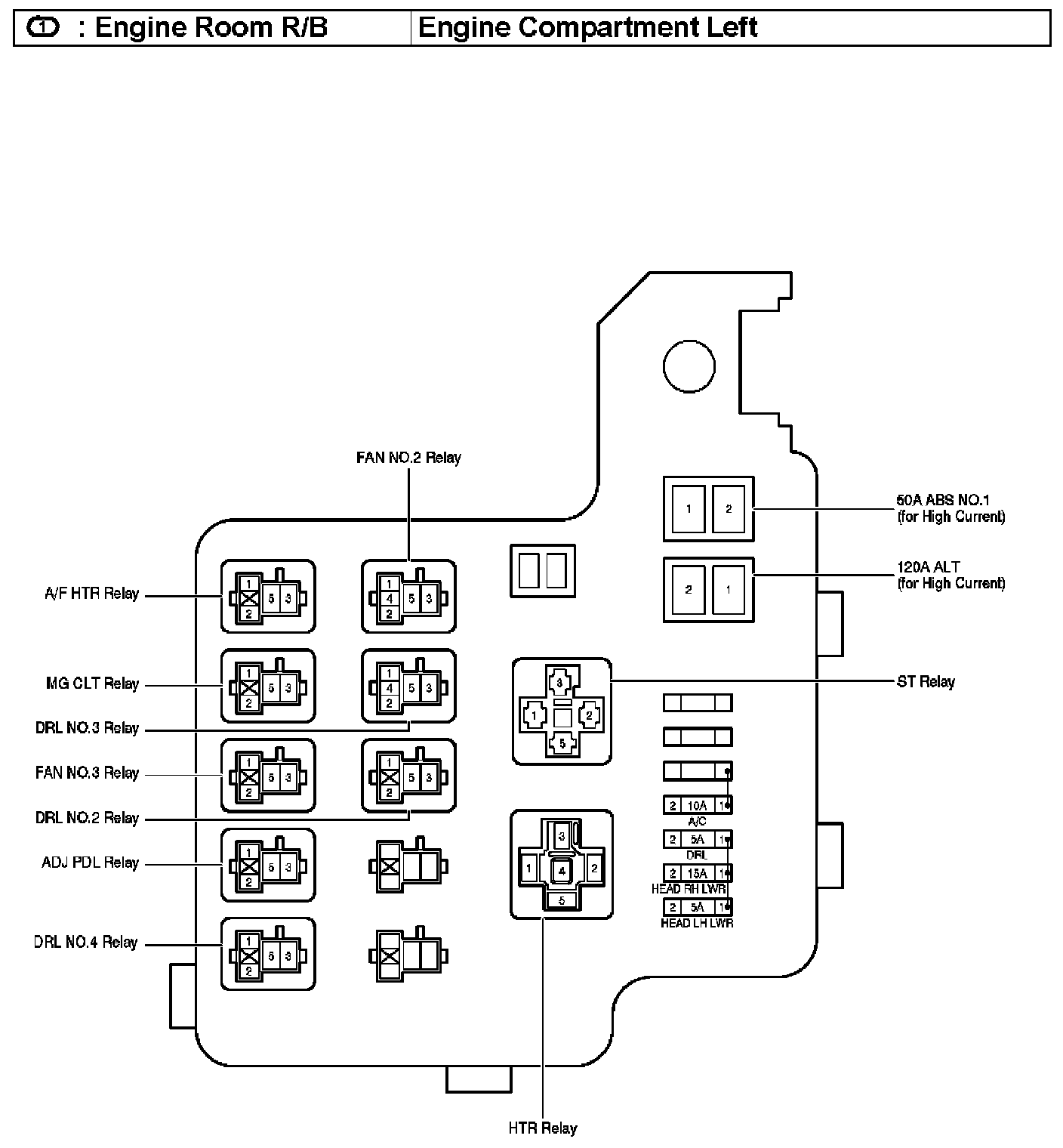

Engine Room R/B - Engine Compartment Left:

ABS R/B - Radiator Side Support LH:

Engine Room J/B - Engine Compartment Left:

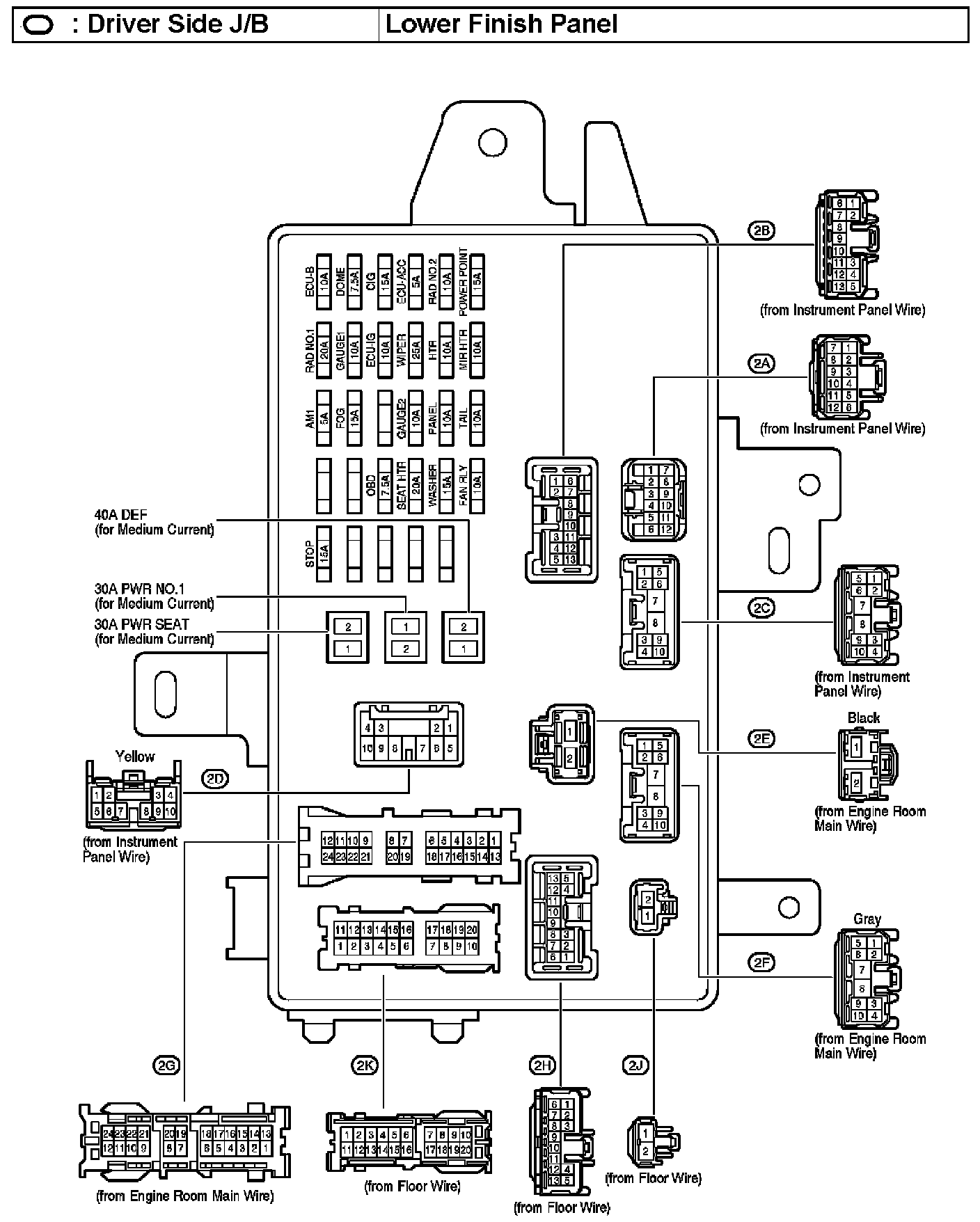

Driver Side J/B - Lower Finish Panel Part 1:

Driver Side J/B - Lower Finish Panel Part 2:

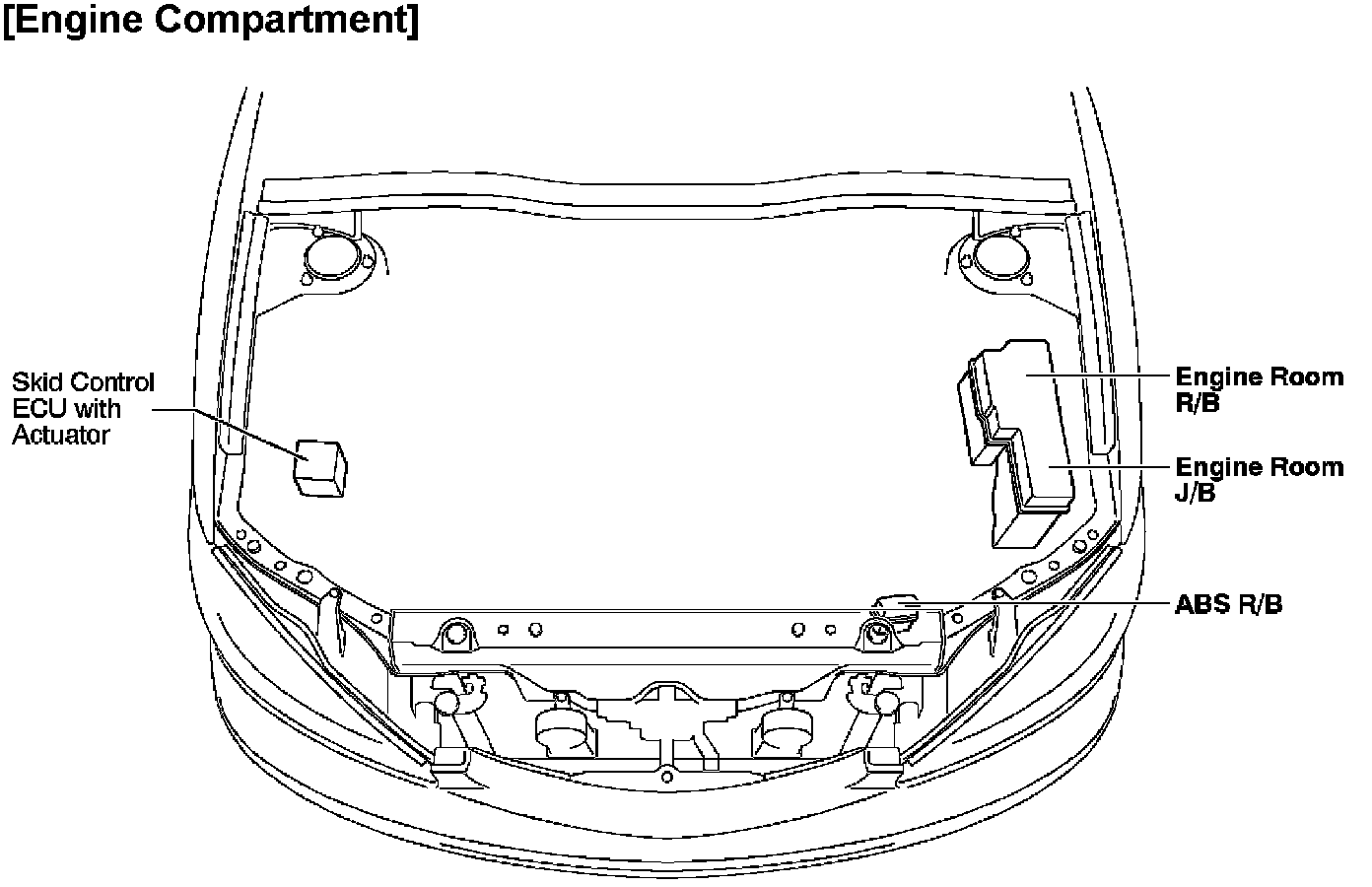

Engine Compartment:

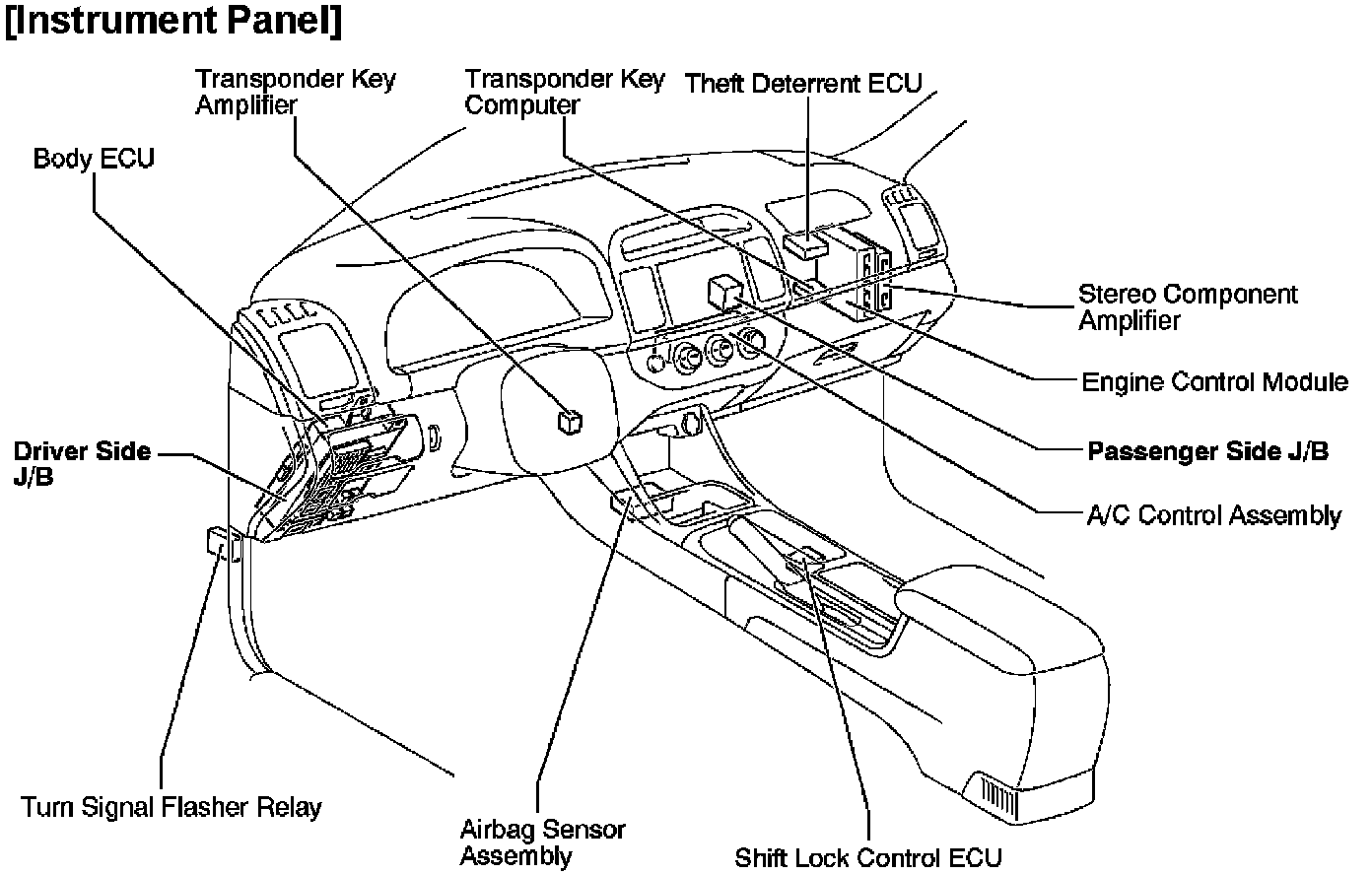

Instrument Panel:
