Audio System - 6 CD Changer AVC - LAN Adapter Harness
ACCESSORIESAX007-03
December 9, 2003
Title
AVC. LAN WIRE HARNESS ADAPTER FOR 6. DISC CD CHANGER
Models
'04 Camry
Introduction
The installation of the 6-Disc CD Changer Trunk Mounted accessory in 2004 model year Camry vehicles equipped with navigation, requires the use of an AVC-LAN wire harness adapter (P/N 08695-00370.)
Applicable Vehicles
^ 2004 model year Camry vehicles with Navigation.

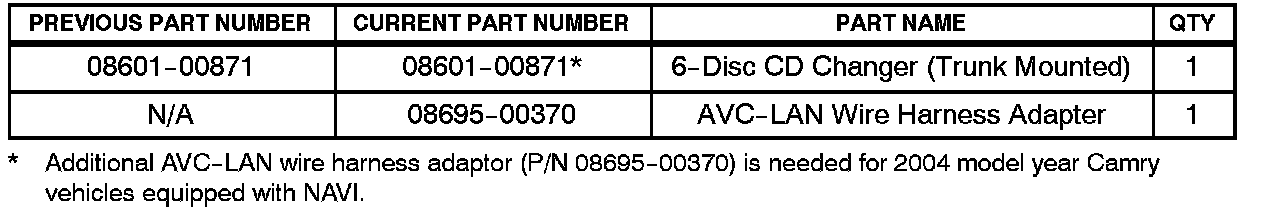

Parts Information

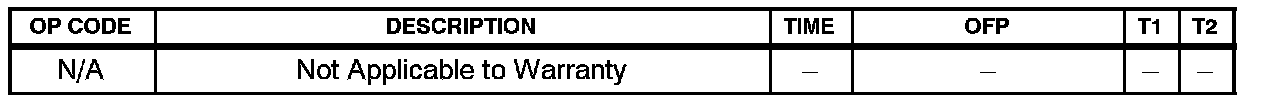

Warranty Information
Installation Procedure
The Camry P9 installation instructions will be updated to reflect the following changes.
1. Cut the foam tape.
A. Cut the two strips of foam tape in sections of approximately 1-inch width to provide 21 strips (total).
2. Route the changer wire harness through the passenger's front foot well.
A. Route the changer wire harness up through the center cluster to the combination unit.

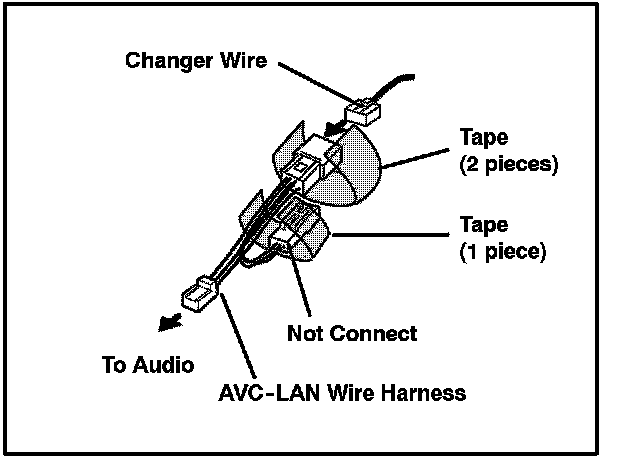

B. Connect the changer wire harness to the large male connector on the AVC-LAN wire harness adapter.
a. Wrap this connector with two (2) pieces of foam tape to prevent rattles.
C. Wrap the small male connector to the AVC-LAN wire harness adapter with one (1) piece of foam tape to prevent rattles.
D. Route the changer wire harness with vehicle harness and secure with foam tape.
E. Continue with current instruction J.3. (Rev. B).
