Canada - Brakes - Pedal Vibration When Applying Brakes

Bulletin
TSB2374

Issue Date
2005-11-10

Market
Canada

Title
BRAKE PEDAL VIBRATION FEELING

Component
BRAKES

Models
'02 - '04 Camry

INTRODUCTION:
In some cases, the customer may feel slight vibration in the brake pedal during initial pedal stroke. The vehicle does not have to be in motion to feel the vibration. A new brake master cylinder service part was developed to address this slight vibration concern.

APPLICABLE VEHICLES:
- 2002 - 2004 model year Camry vehicles with 4-cylinder engines and without ABS.

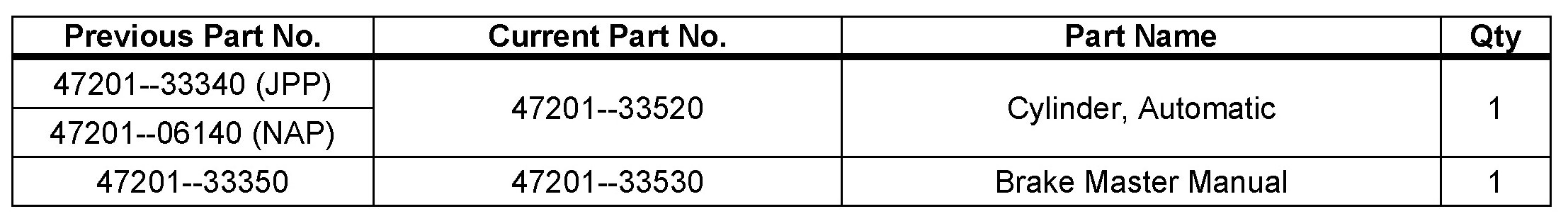

PARTS INFORMATION:

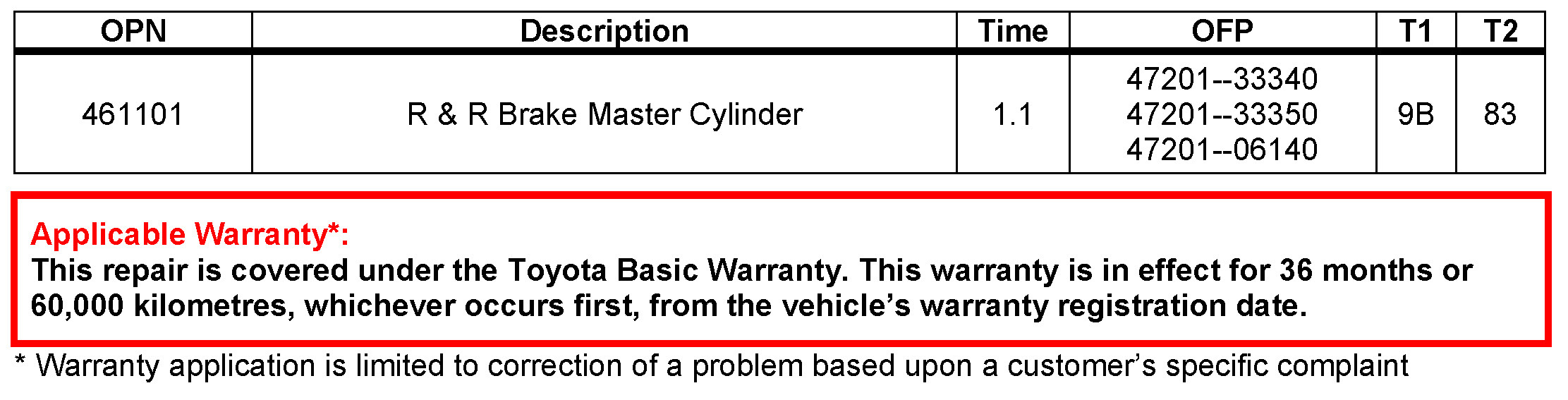

WARRANTY INFORMATION:

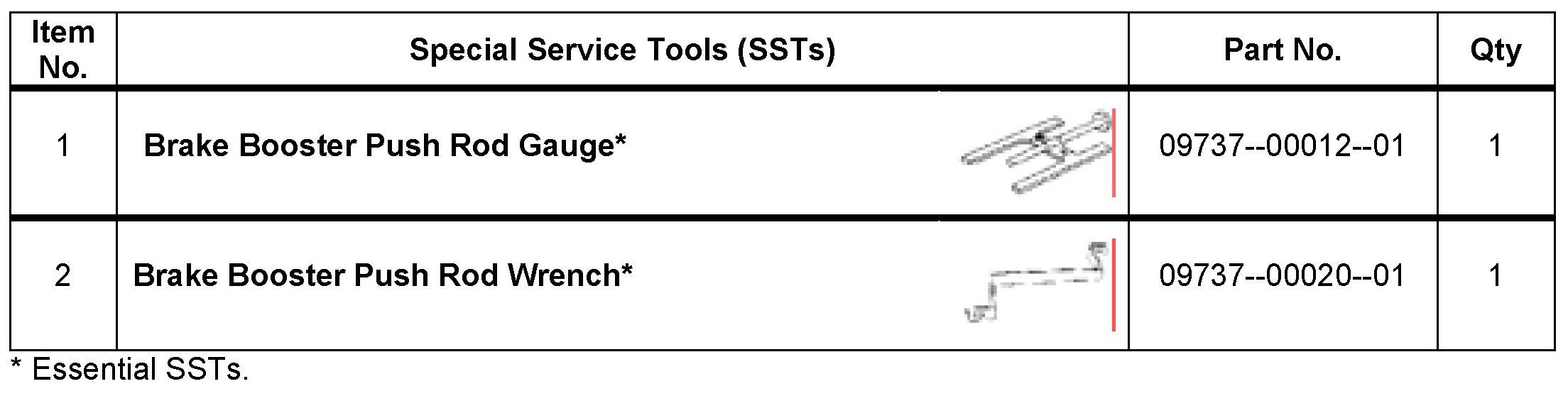

REQUIRED SSTs:

REPAIR PROCEDURE:
Replace the master cylinder according to the procedures in the ETAS, 2002 -- 2004 model year Camry Repair Manual: Brake: Brake Master Cylinder: Overhaul.
