Flex Plate: Specifications

Drive plate & ring gear sub-assy 83 Nm (846 kgf-cm, 61 ft.lbs)

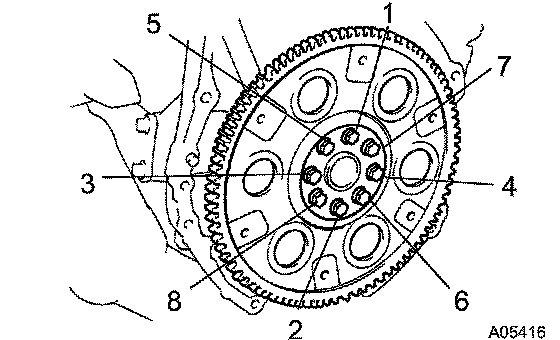

Uniformly install and tighten the 8 bolts in the sequence shown.

Flywheel housing under cover x Automatic transaxle assy 7.8 Nm (80 kgf-cm, 69 inch lbs.)

Drive plate & ring gear x Torque converter 41 Nm (418 kgf-cm, 30 ft. lbs.)
First tighten the green colored bolt and then tighten the 5 bolts.
