ABS (Antilock Brake System)

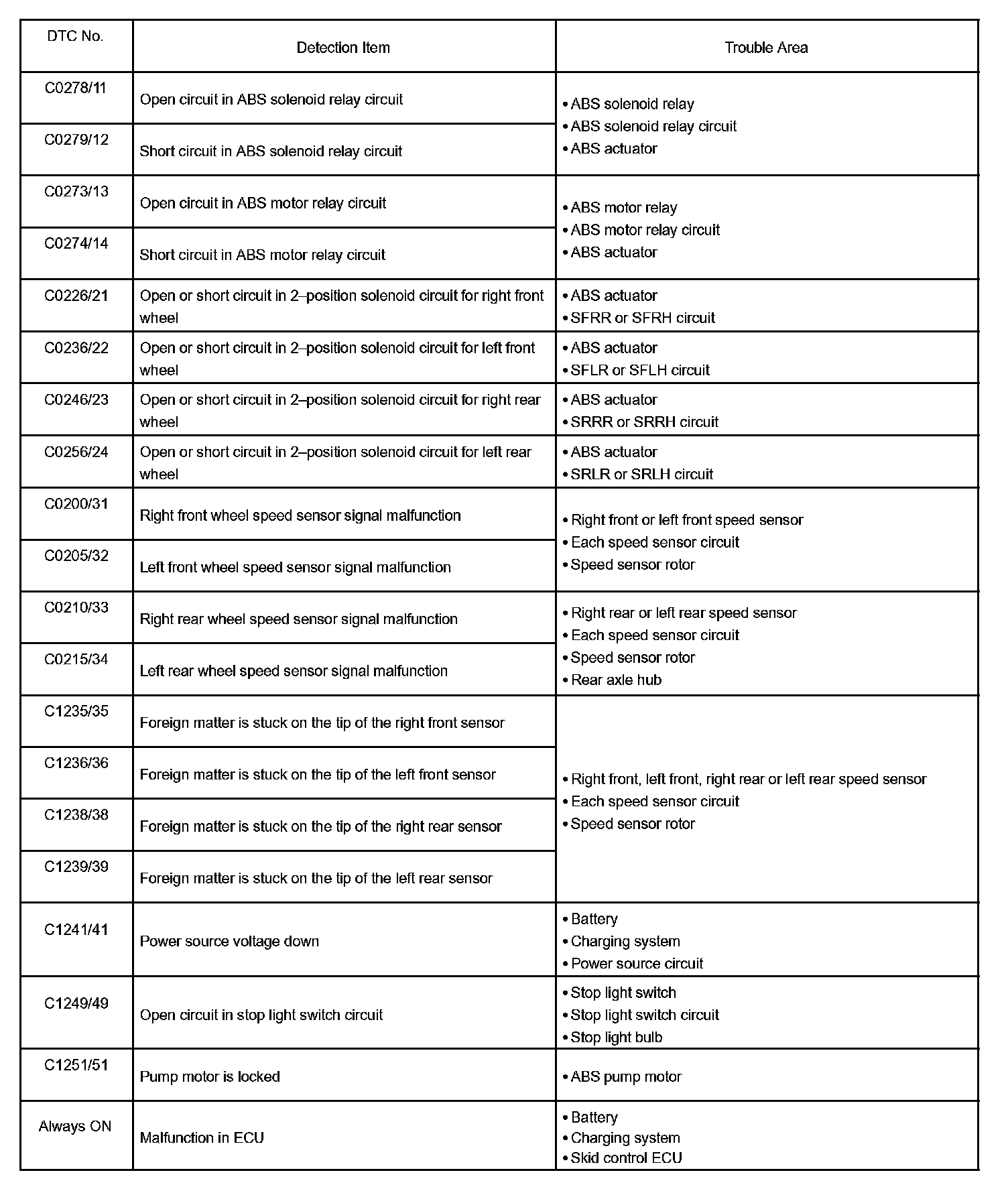

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of the DLC3.
- If any abnormality is not found as inspecting parts, inspect ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer respective "DTC No." in the DTC chart.

C0278/11 - Always ON:

HINT: There is a case that hand held tester cannot be used when the ABS warning light remains ON.

C1271/71 - C1278/78:

DTC of speed sensor check function:
