Engine Control Module
Engine Control Module

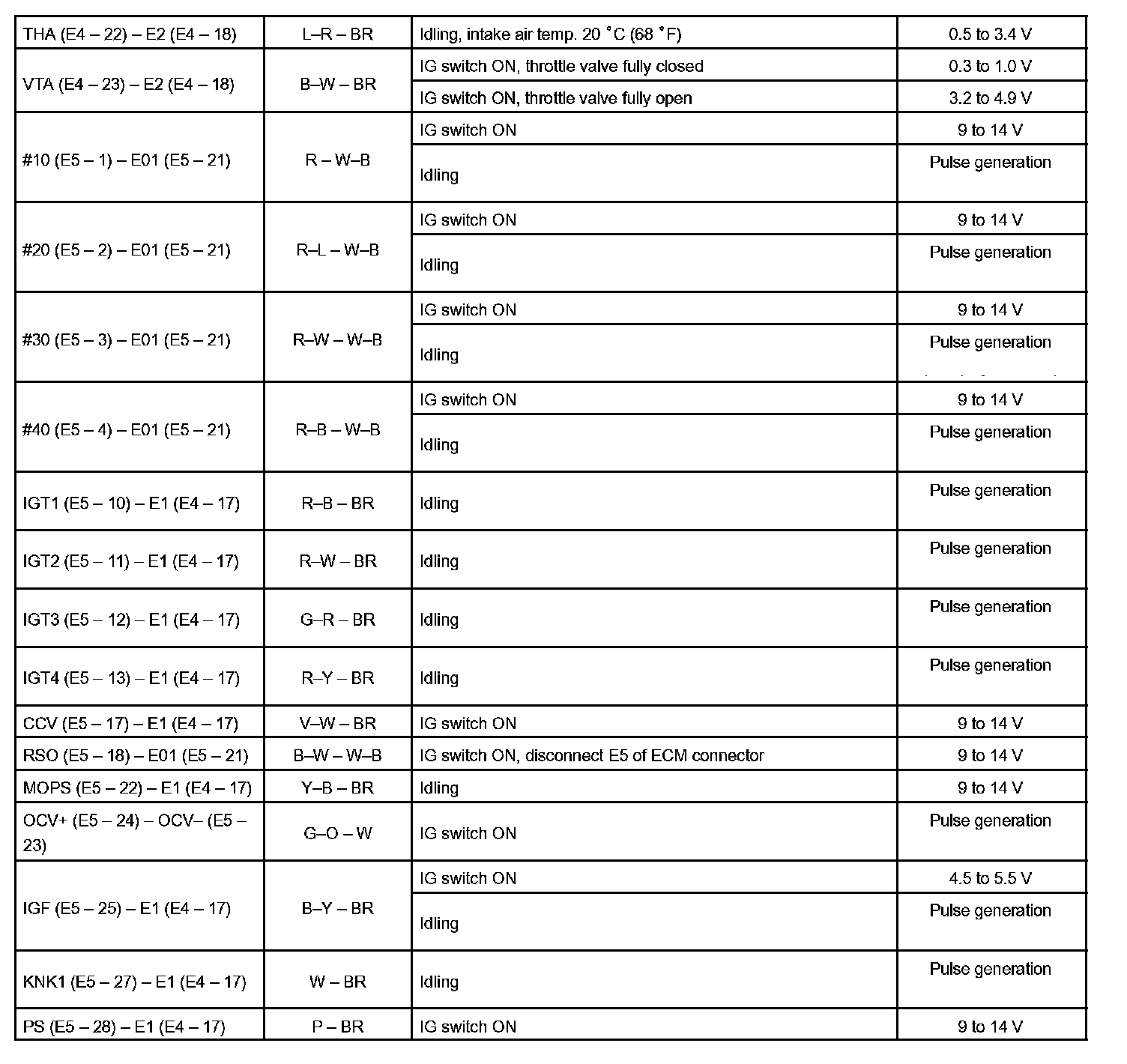

Terminals of ECM/Pinouts Part 1:
Terminals of ECM/Pinouts Part 2:
