Clock: Testing and Inspection
CLOCK TROUBLESHOOTING
HINT:

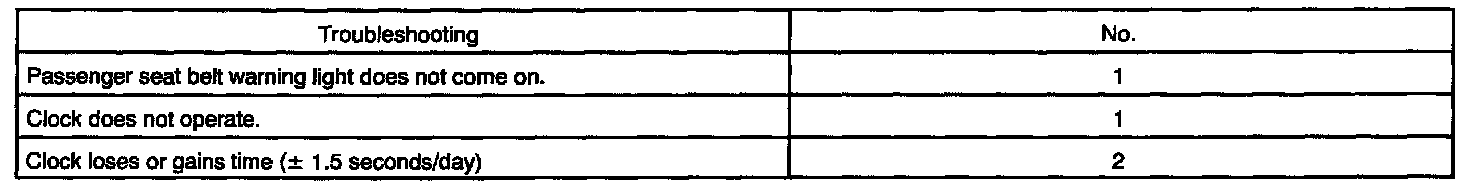

Troubleshoot the clock according to the table.
1.

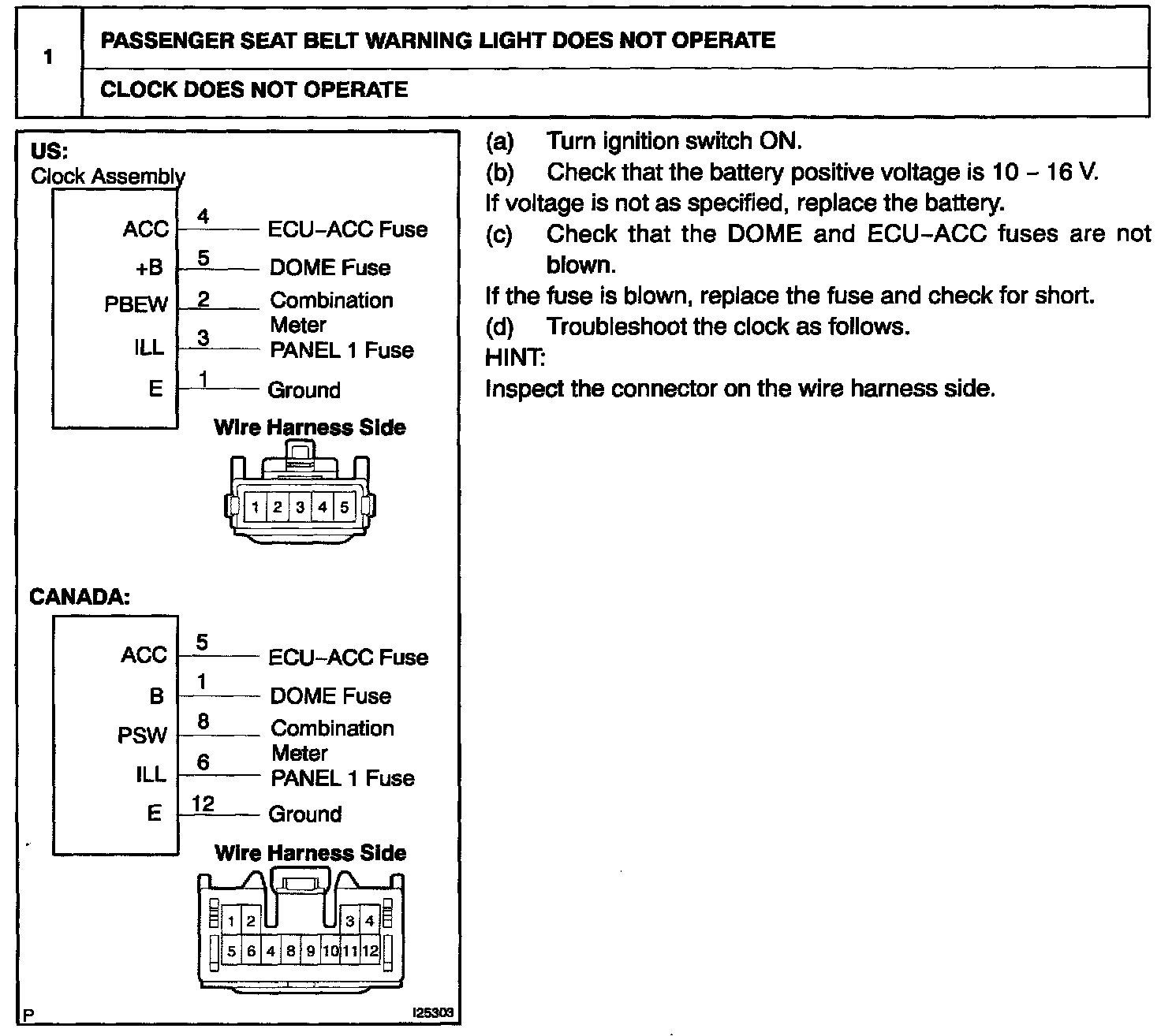

INSPECT CLOCK CIRCUIT
2.

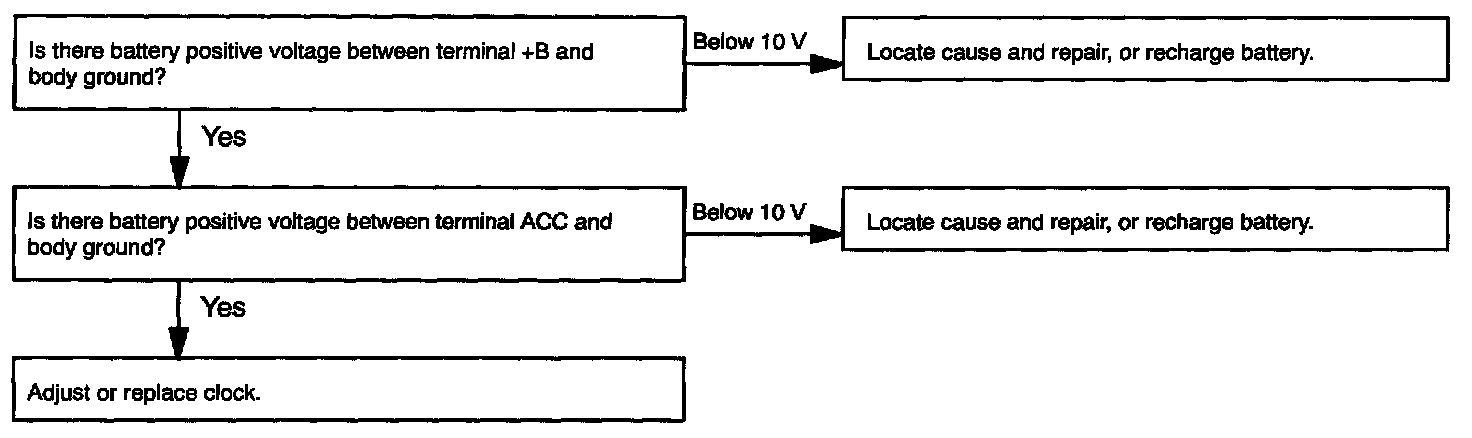

TROUBLESHOOTING NO.1
3.
TROUBLESHOOTING NO.2
