Home >> Toyota >> 2004 >> Celica L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Component Locations

Component Locations

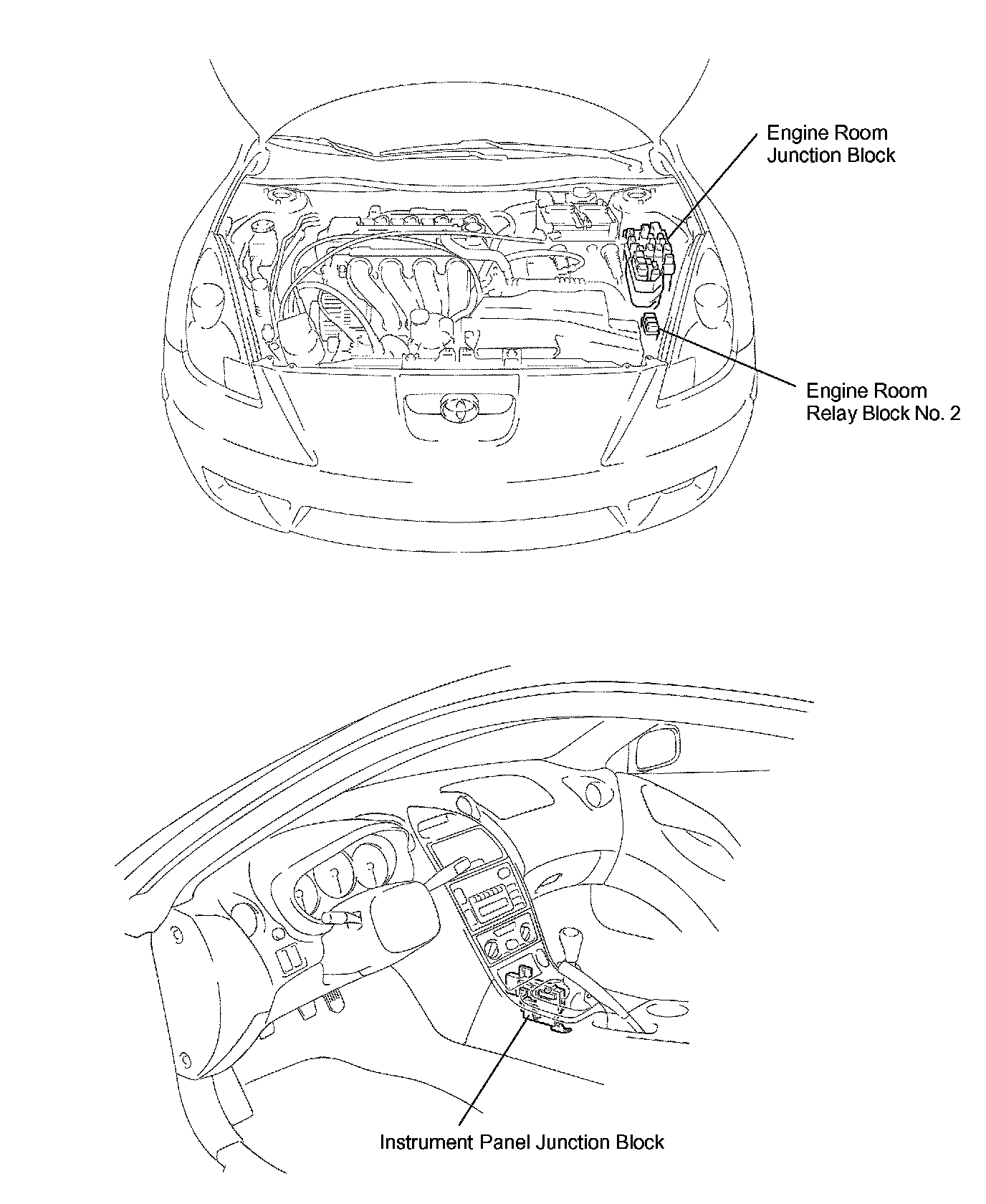

Power Source Locations:

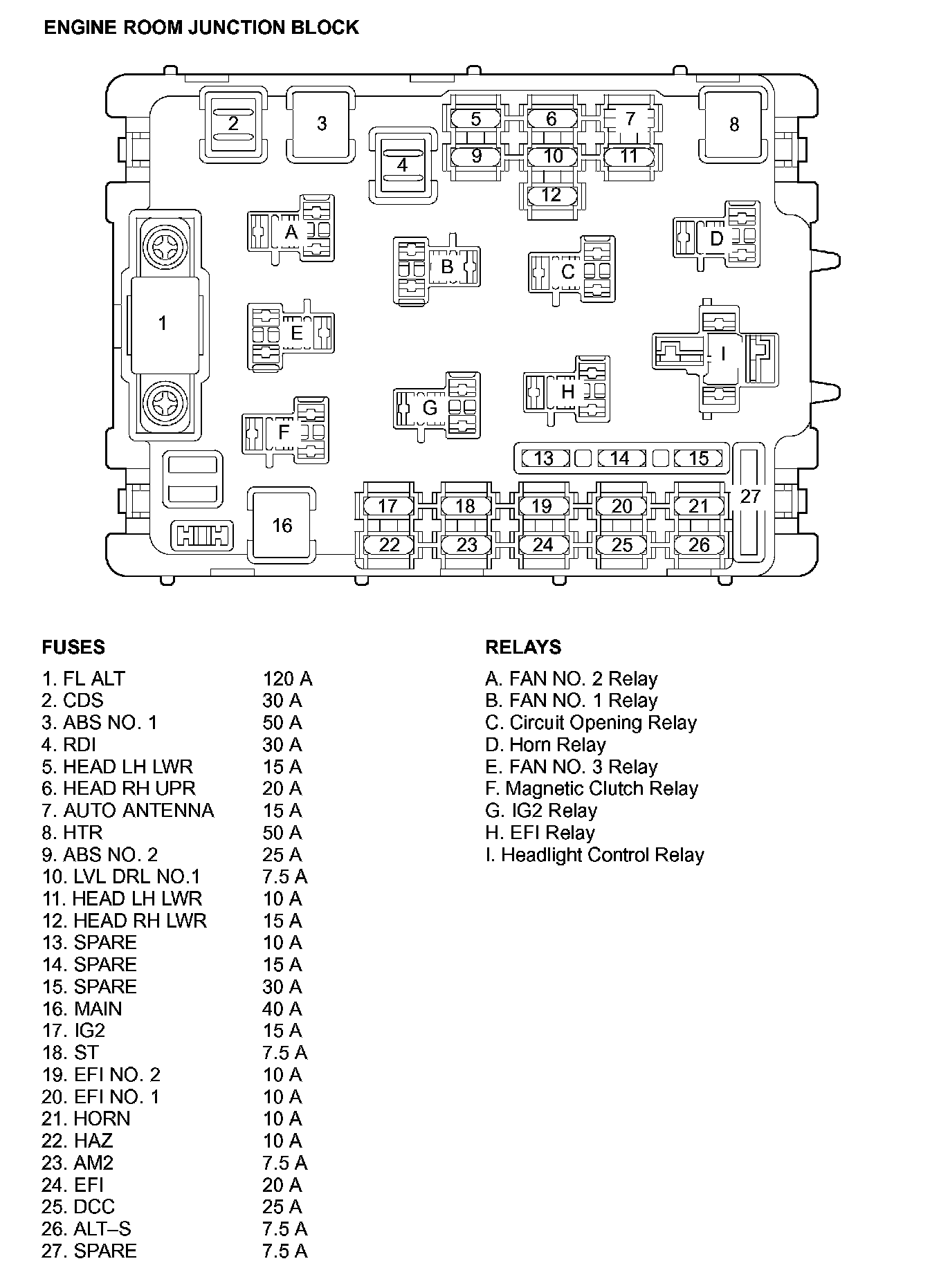

Engine Room Junction Block:

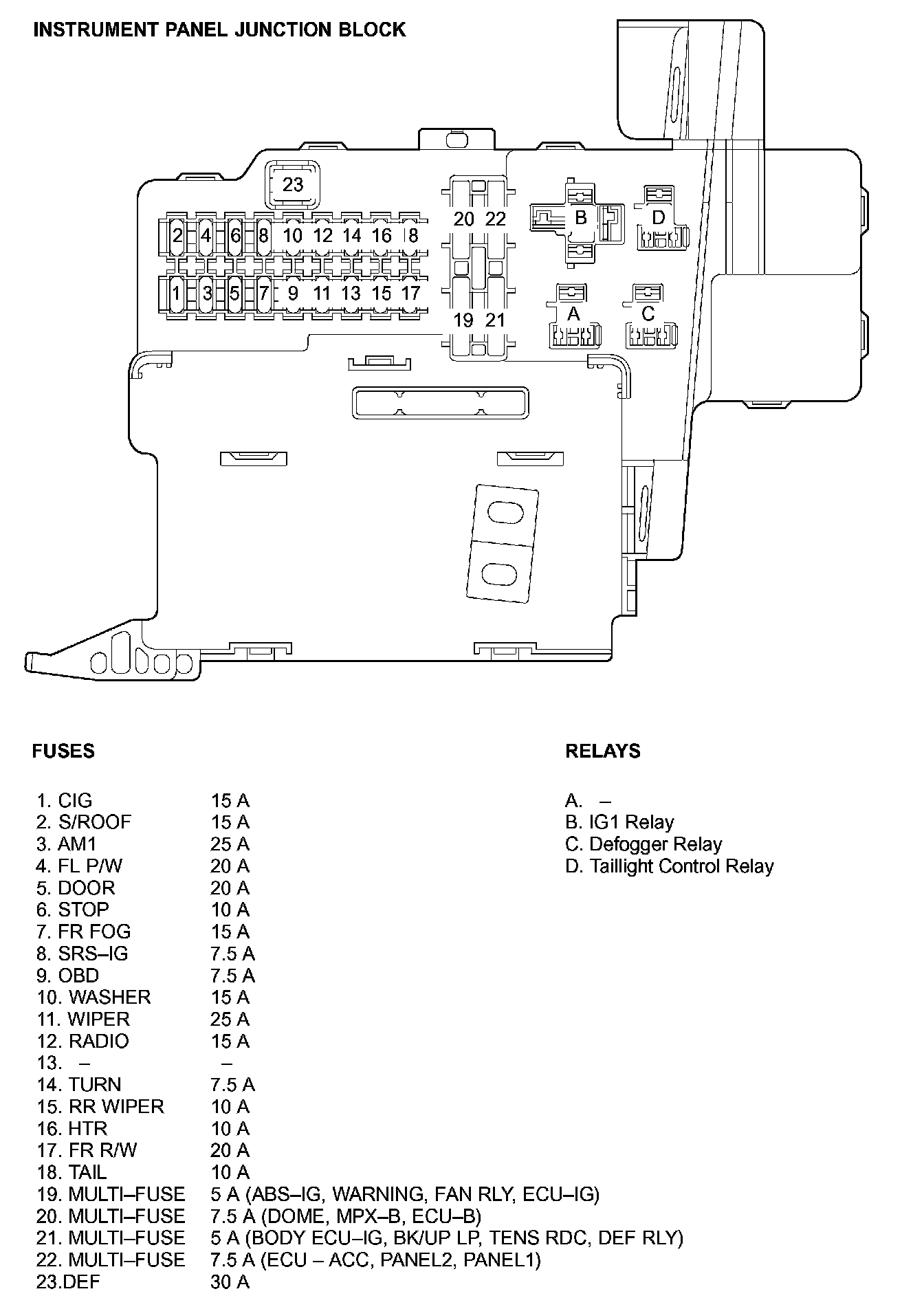

Instrument Panel Junction Block:

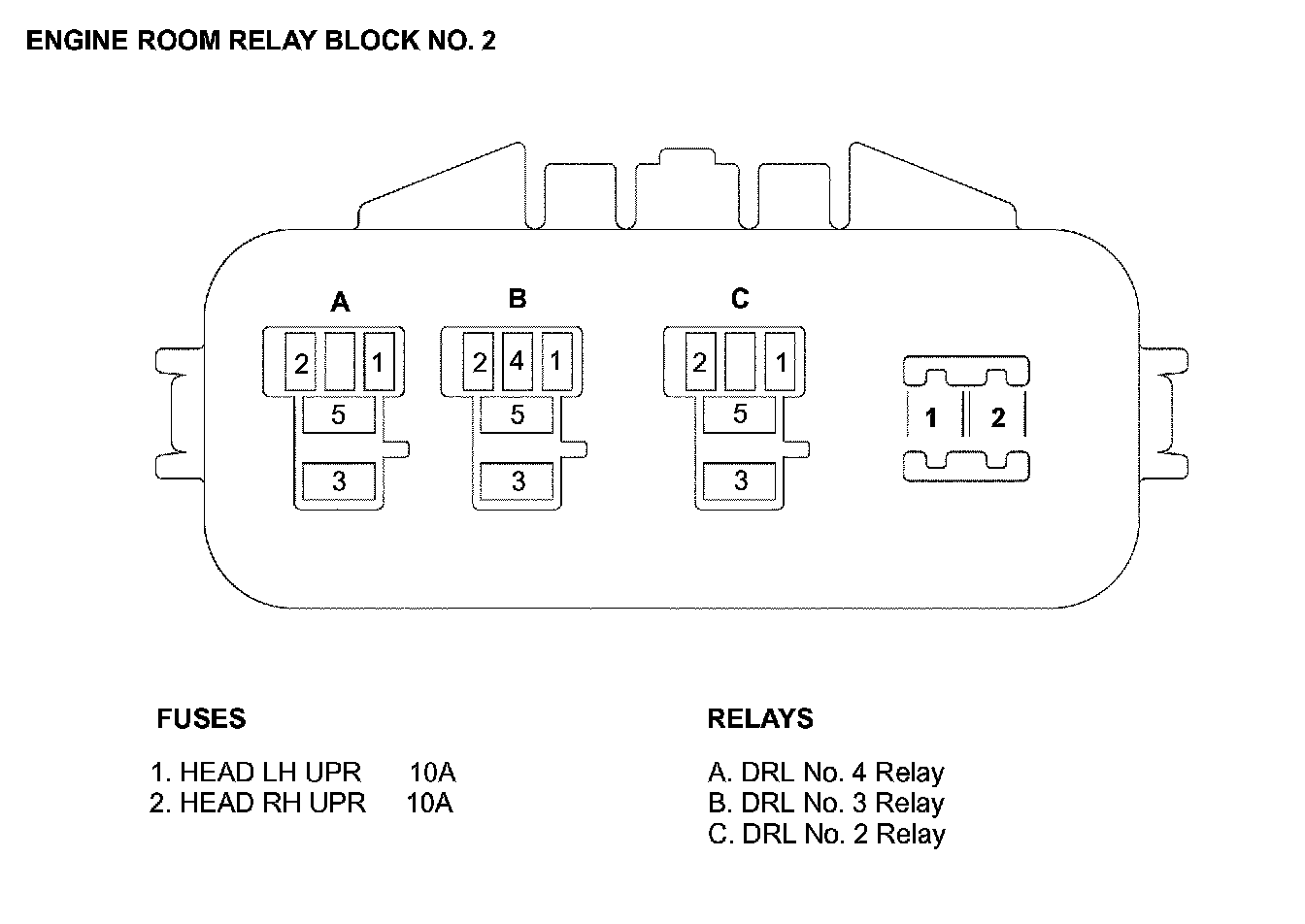

Engine Room Junction Block:





Power Source
