Multiple Junction Connector: Locations

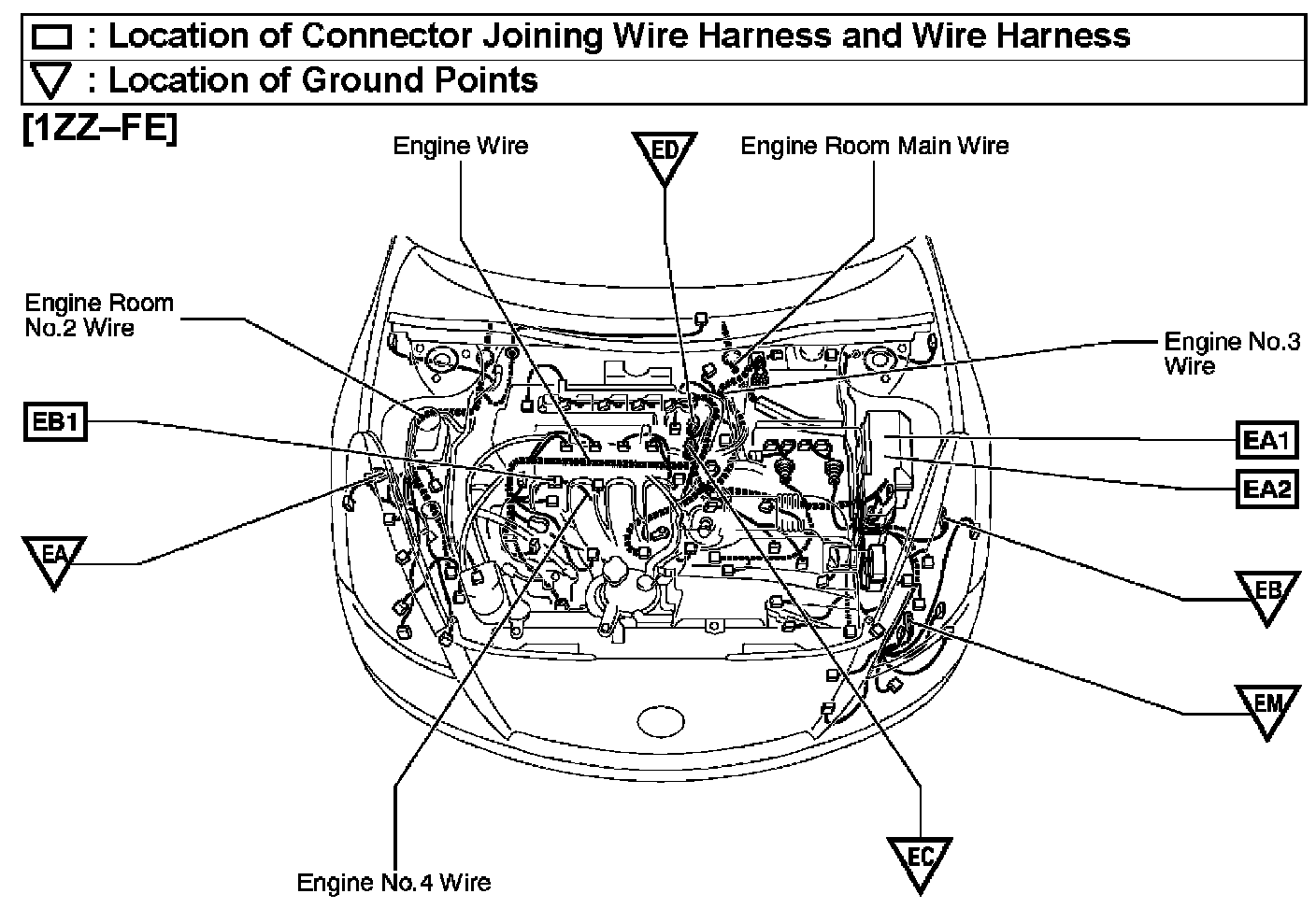

EA1 - EB1, EA - EM:

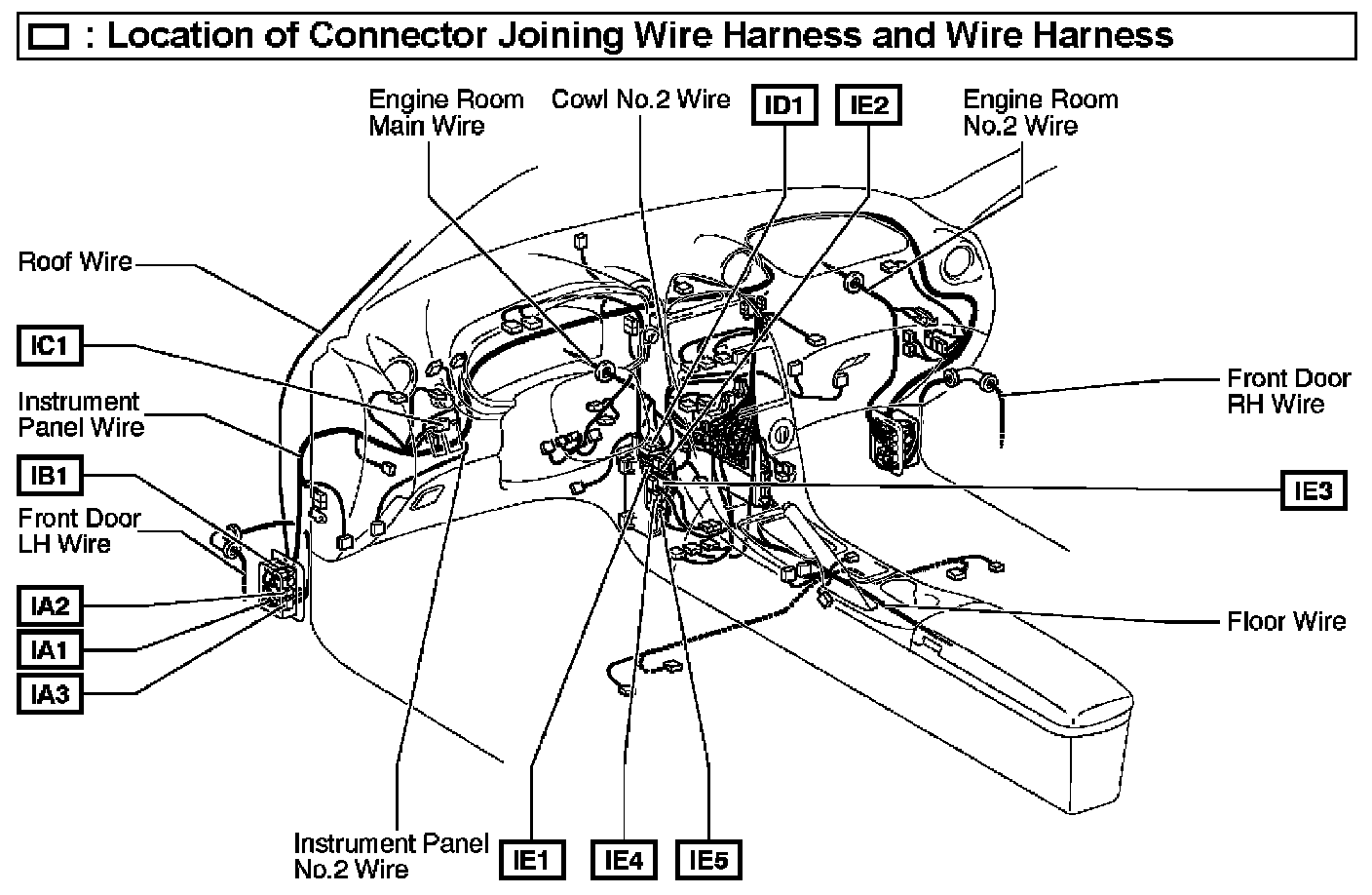

IA1 - IE5:



IF1 - II2:



BA1 - BB2, BI - BL:
