Headlamp: Service and Repair

LH Headlamp Assy:

REPLACEMENT

1. REMOVE RADIATOR GRILLE SUB-ASSY
2. REMOVE FRONT BUMPER COVER

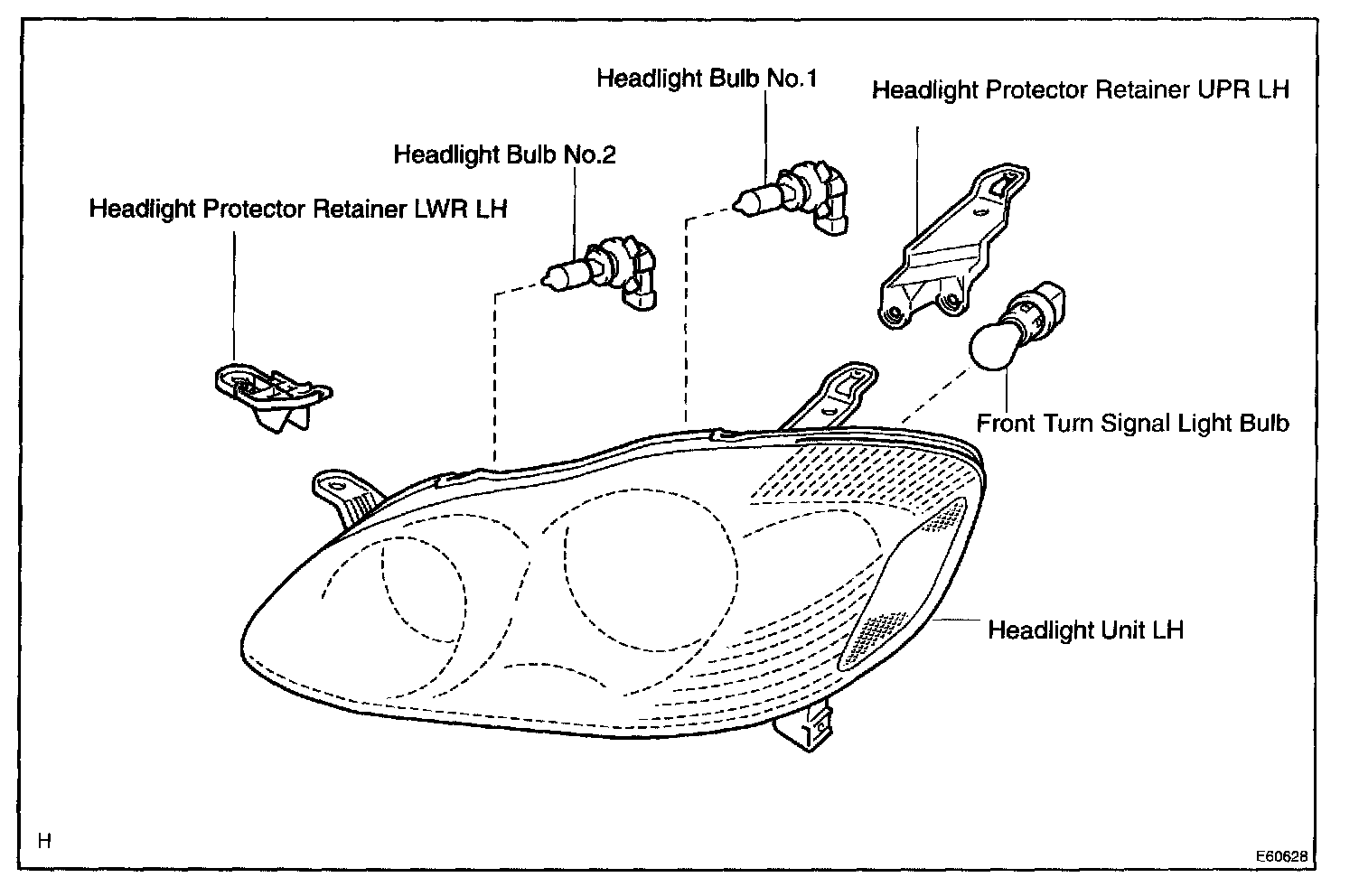

3. REMOVE LH HEADLAMP ASSY
a. Remove the 3 bolts.
b. Pull out the headlight assy LH forward, then disconnect the bracket of body side.




c. Release the claws and disconnect the connectors as shown in the illustration, and remove the headlight assy LH.

4. INSTALL RETAINER, HEADLAMP PROTECTOR, UPR LH

HINT: When only the installation part of the headlight assy LH is damaged, it can be repaired inexpensively by using a headlight protector retainer UPR LH. In this case, however, the headlight assy LH itself should not be damaged.




a. Cut off the part shaded in the illustration and sand smooth with sandpaper.

NOTE: After cutting off the part roughly, place the headlight protector retainer UPR LH against the bosses and gradually file any interfering part until the proper condition for installation is made.

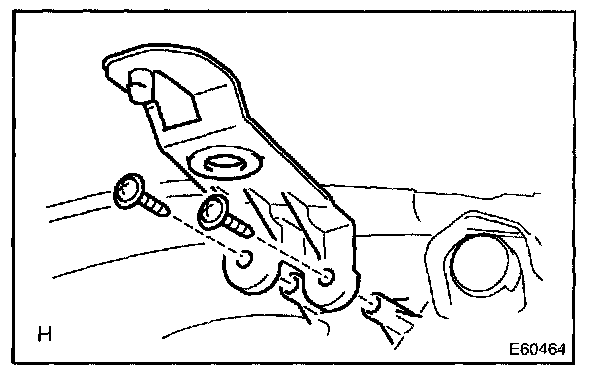

b. Install the headlight protector retainer UPR LH with 2 screws.

5. INSTALL RETAINER, HEADLAMP PROTECTOR, LWR LH




a. Cut off the pan shaded in the illustration and sand smooth with sandpaper.

NOTE: After cutting off the part roughly, place the headlight protector retainer LWR LH against the bosses and gradually file any interfering part until the proper condition for installation is made.

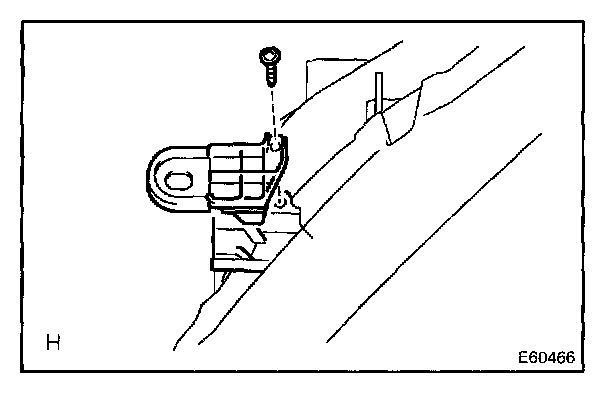

b. Install the headlight protector retainer LWR LH with a screw.

6. PUT VEHICLE THESE CONDITIONS
7. ADJUST FOG LIGHT AIM
8. HEADLIGHT AIM ONLY
