Tail Lamp: Service and Repair

REAR COMBINATION LAMP ASSY LH

REPLACEMENT

1. REMOVE REAR COMBINATION LAMP ASSY LH




a. Using a clip remover, remove the 2 clips and disconnect the luggage compartment trim cover LH.

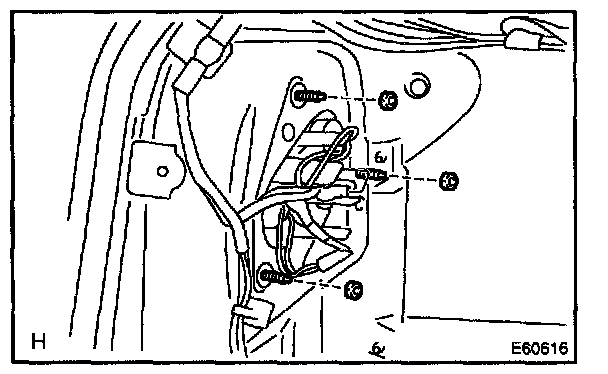

b. Disconnect the connector and remove the 3 nuts.




c. Pull out the rear combination light assy LH to the back of the vehicle, and remove.
