Body - Roof Molding Deformed/Warped
BODYBO022-03
November 19, 2003
Title:
ROOF MOLDING DEFORMATION
Models:
'03 - '04 Corolla
Introduction

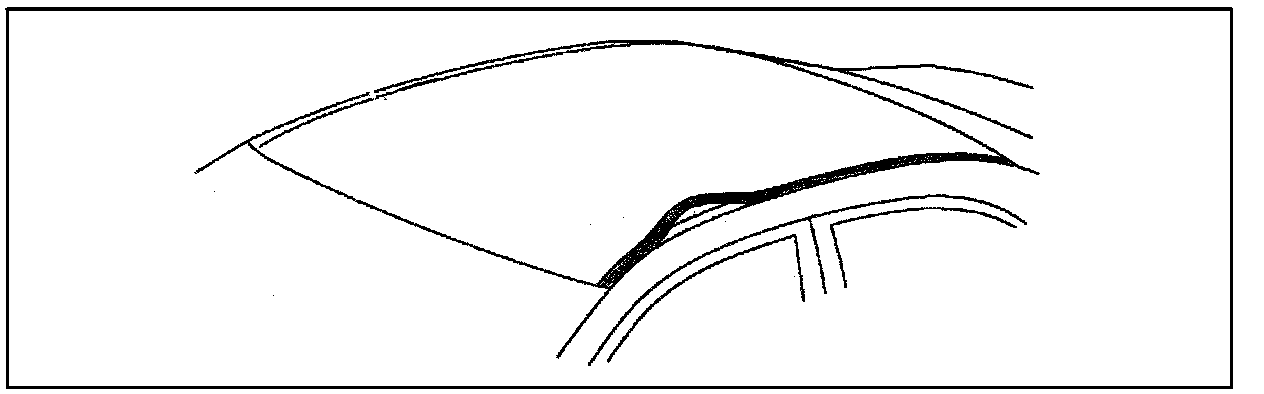

This bulletin provides the recommended repair procedure in cases where the 2003 and 2004 model year Corolla roof molding warps or lifts away from the roof.
Applicable Vehicles
^ 2003 - 2004 model year Corolla vehicles produced BEFORE the Production Change Effective VINs shown below.

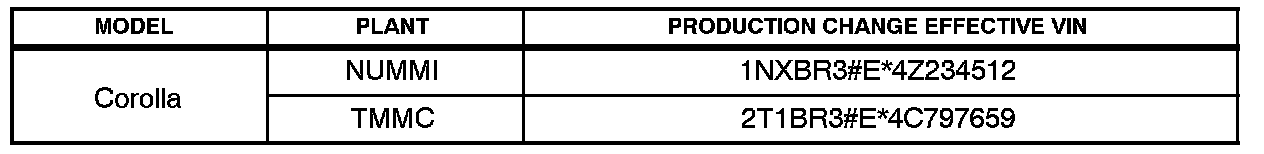

Production Change Information

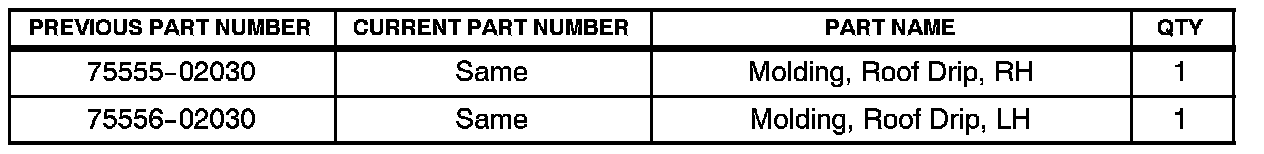

Parts Information
Warranty Information
Applicable Warranty:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Repair Procedure
1. Before removing the roof molding tape the body panels surrounding each molding to protect the paint.
2. Starting from the rear of the vehicle use a plastic pry tool to carefully detach the molding from the clip. Once molding is detached from the rear dip, slowly peel it up and carefully remove the molding from the front clip. Repeat this procedure on the other molding.
NOTE:
Work slowly and carefully. Do not damage the front and rear clips.
3. Install the service part molding by laying it flat into the roof channel and press fitting it into place. It will "click into the clips.
NOTE:
When installing the service part molding be careful not to bend the molding during installation, as this could cause a wavy appearance.
For additional information refer to the Technical Information System (TIS) 2004 model year Corolla Repair Manual: Exterior/Interior Trim, Roof Drip Side Finish Molding Center LH.
