Canada - Body - Rear Door Weatherstrip is Loose

Bulletin
TSB2149R

Issue Date
December 03, 2004

Market
Canada


Title
REAR DOOR WEATHERSTRIP LOOSE

Component
BODY COMPONENT

Models
'03 - '05 Corolla

TSB REVISION NOTICE:
- November 08, 2005: Production Change Information has been revised.
Previous versions of this TSB should be discarded.

INTRODUCTION:

Some customers may complain that the rear door weatherstrip is loose. A procedure has been developed to remedy this condition.

APPLICABLE VEHICLES:
- 2003 - 2005 model year Corolla (TMMC) vehicles.

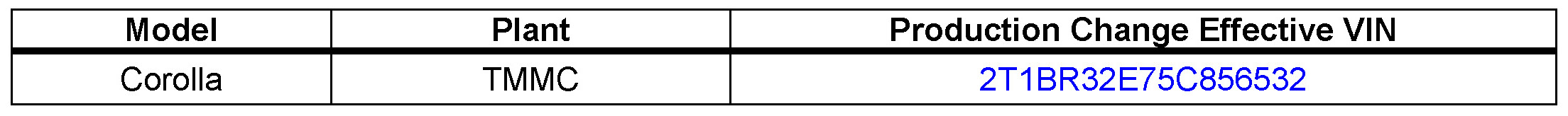

PRODUCTION CHANGE INFORMATION:

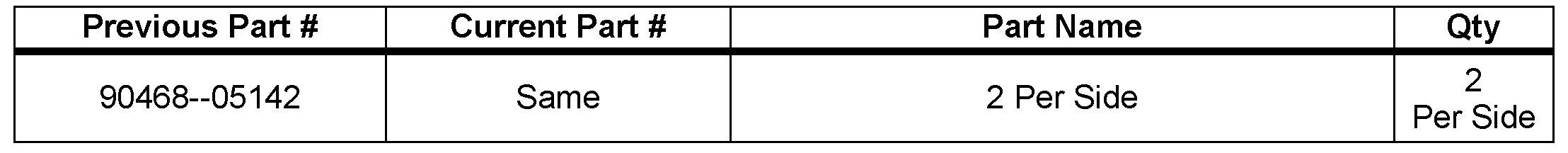

PARTS INFORMATION:

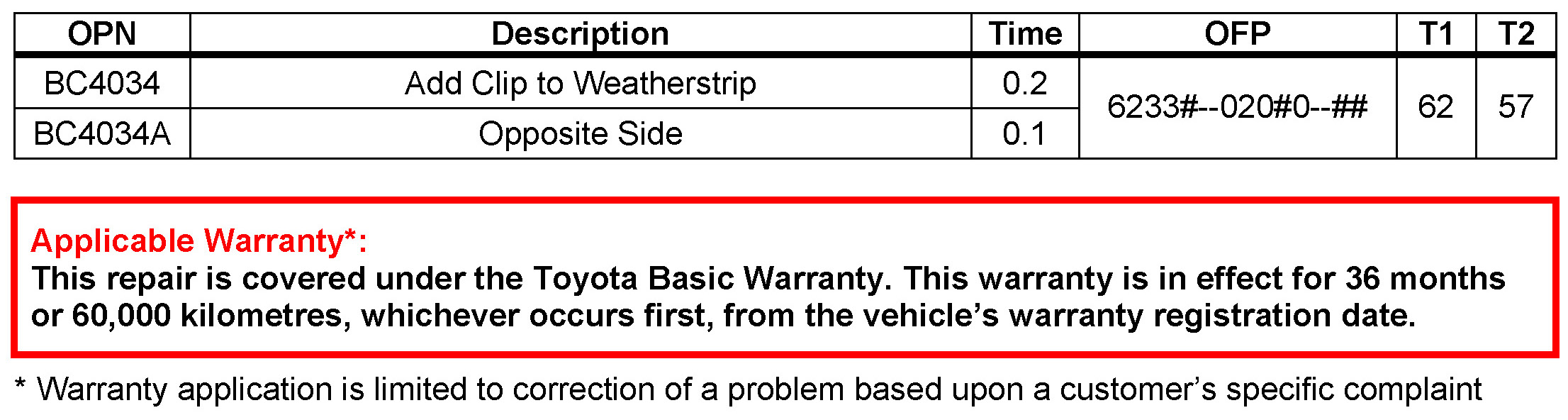

WARRANTY INFORMATION:

REPAIR PROCEDURE:

1. Partially remove door opening weatherstrip where it contacts "C"--pillar.







2. Install the 2 clips to the quarter panel flange as indicated by the illustration.
3. Reinstall the rear door opening weatherstrip onto the new clips.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
