Canada - Interior - Water Dripping From Headliner Near A-Pillar

Bulletin
TSB3251

Issue Date
November 17, 2009

Market
Canada

Title
WATER CONDENSATION DRIPPING FROM HEADLINER

Component
BODY COMPONENTS

Models
'03-'08 Corolla

INTRODUCTION:
Some 2003-2008 Corolla vehicles may exhibit a condition where water condensation drips from the gap between the headliner and front A-pillar garnish. The condition is mostly noticeable in freezing temperatures.
Use the following repair procedure to correct this condition.





APPLICABILITY:

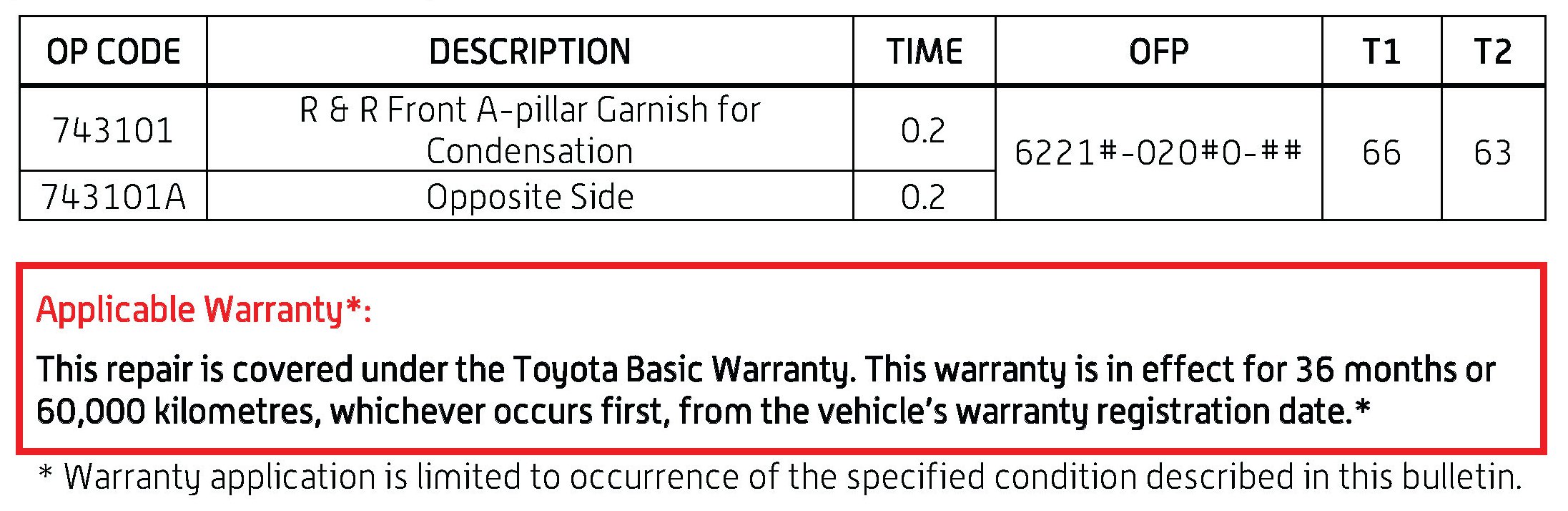

WARRANTY INFORMATION:

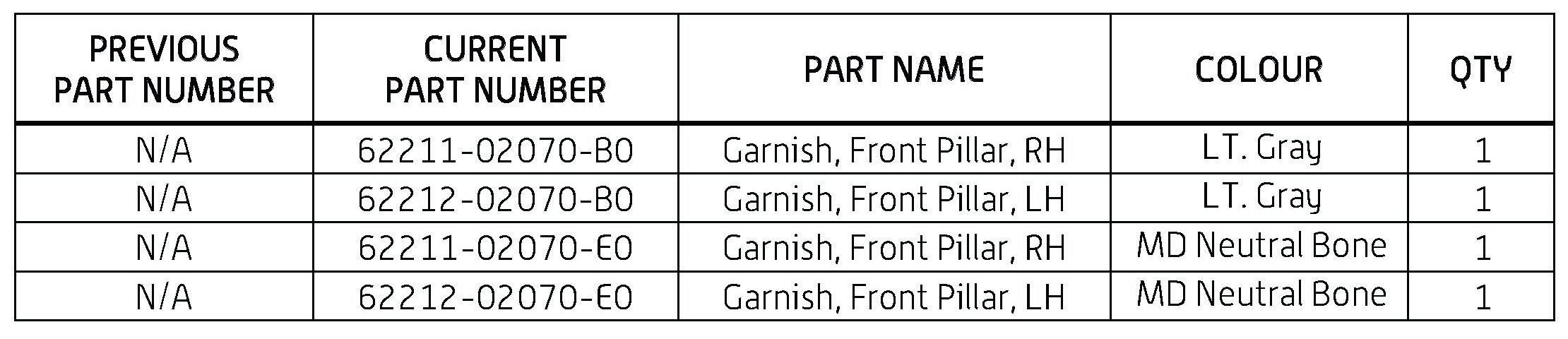

PARTS INFORMATION:

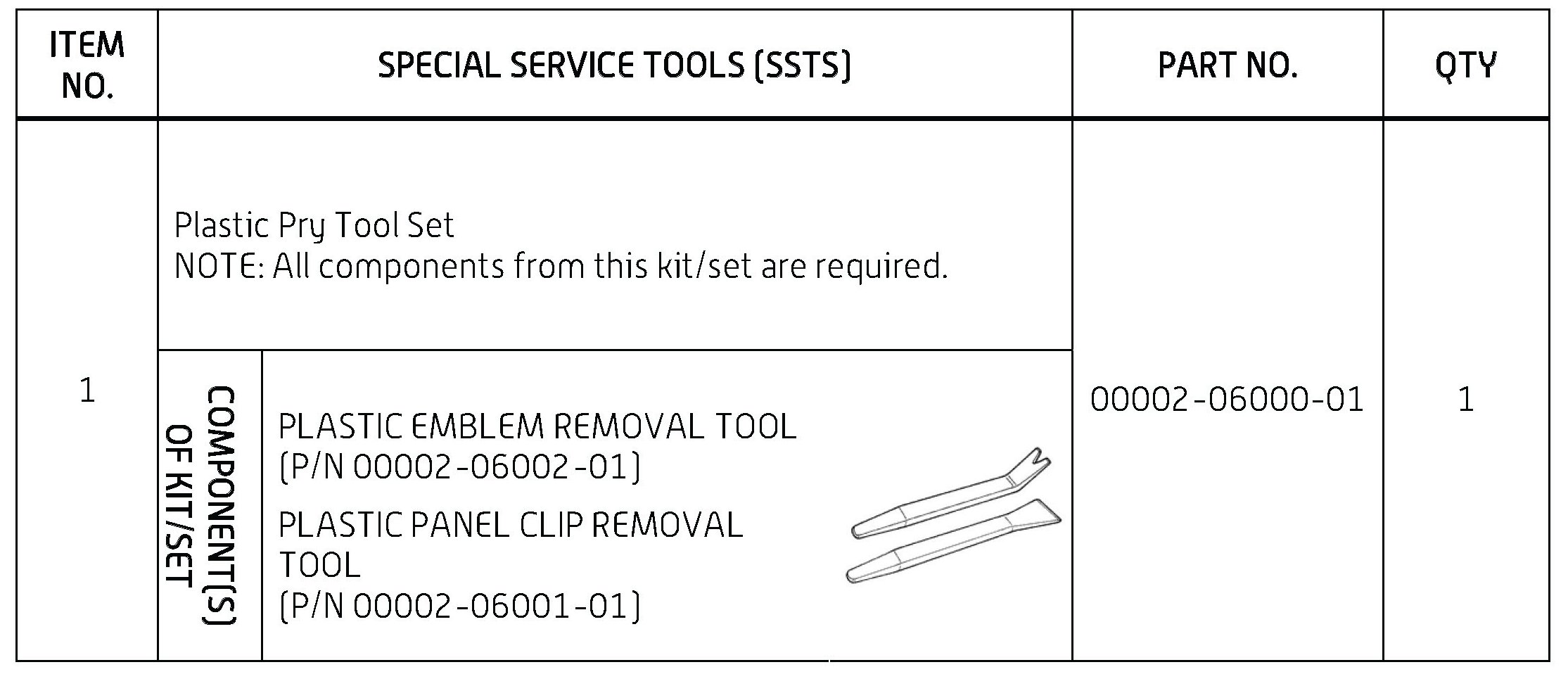

REQUIRED TOOLS & EQUIPMENT:

NOTE
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:
1. Inspect vehicle for signs of water leakage around both front A-pillar garnishes.
2. Confirm if the water stains can be easily removed by wiping/cleaning.
- If Yes - Continue with step 3.
- If No - Order a new A-pillar garnish and proceed to step 3.

3. Remove the front A-pillar garnish.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Corolla
- Year: 2003/ 2004/ 2005/ 2006/ 2007/ 2008
- Service Category: Vehicle Interior
- Section: Interior Panels/Trim
- Keyword: Roof Headlining: Removal

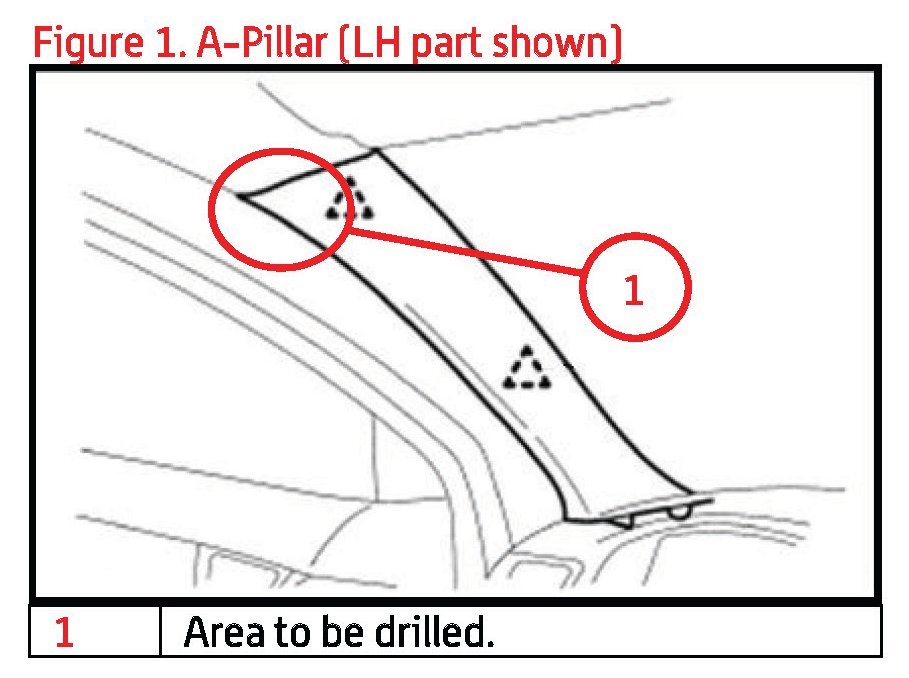

4. Using a screwdriver, remove the front pillar garnish LH. Perform the same operation on the RH side.

HINT:
Tape the screwdriver tip before use.

5. Wipe down the front A-pillar beams with a dry towel.

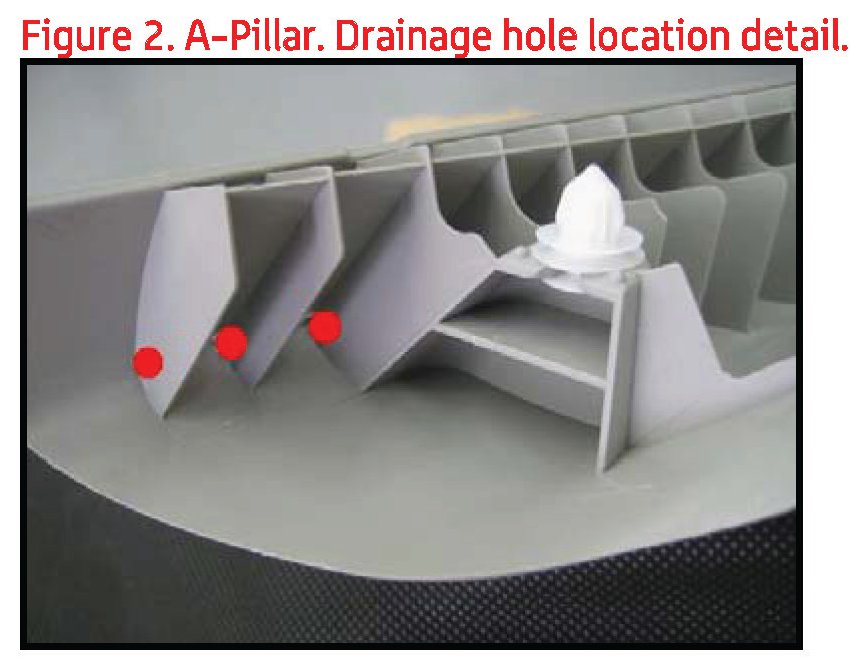

6. Drill holes in the Ribs on the backside of the A-pillar Garnish in order to drain water condensation. Perform the same operation on the opposite side.







NOTE
- Drill a 3mm diameter hole in the top 3 ribs of the A-Pillar Garnish.

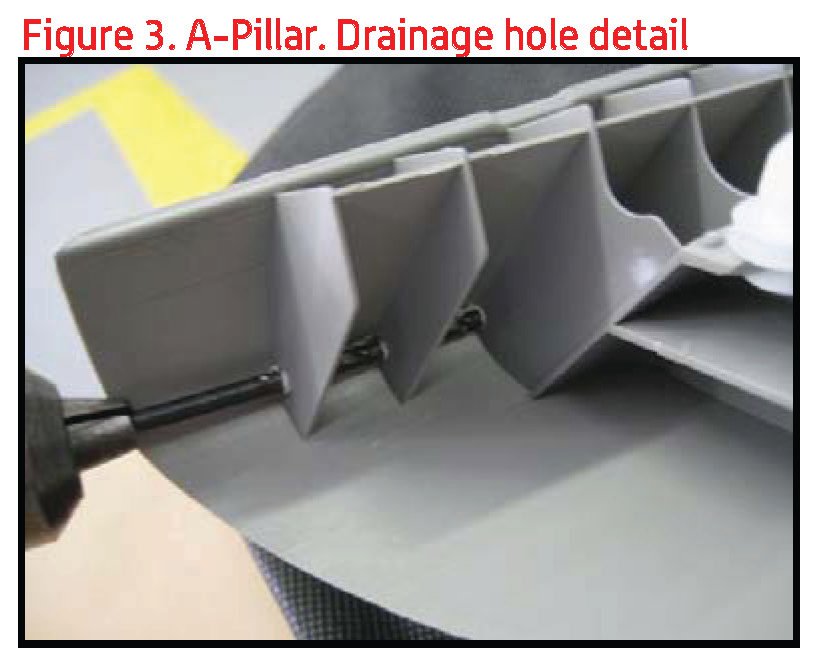

- The hole should be as close as possible to the back surface of A-Pillar Garnish. Drill direction is indicated in figure 3.
- Be sure not to leave any burrs after drilling the holes.

7. Install the front A-pillar garnish in the reverse order of removal. Perform the same operation on the opposite side.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Corolla
- Year: 2003/ 2004/ 2005/ 2006/ 2007/ 2008
- Service Category: Vehicle Interior
- Section: Interior Panels/Trim
- Keyword: Roof Headlining: Installation

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
