Flywheel: Specifications

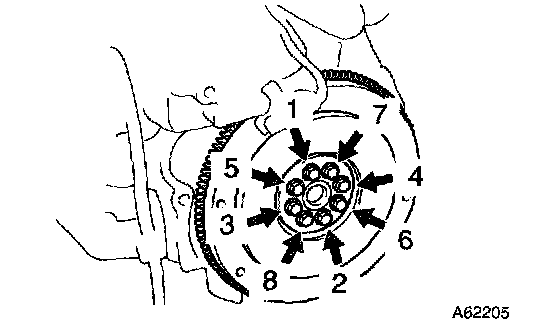

Flywheel bolts
First pass 49 Nm (500 kgf-cm, 36 ft.lb)
Second pass Turn 90°
Flywheel sub-assy runout
Maximum 0.1 mm (0.004 inch)
Clutch cover assy x Flywheel sub-assy 19.1 Nm (195 kgf-cm, 14 ft. lbs.)
