Windshield Washer Spray Nozzle: Adjustments





WASHER NOZZLE
ADJUSTMENT

1. INSPECT WASHER NOZZLE

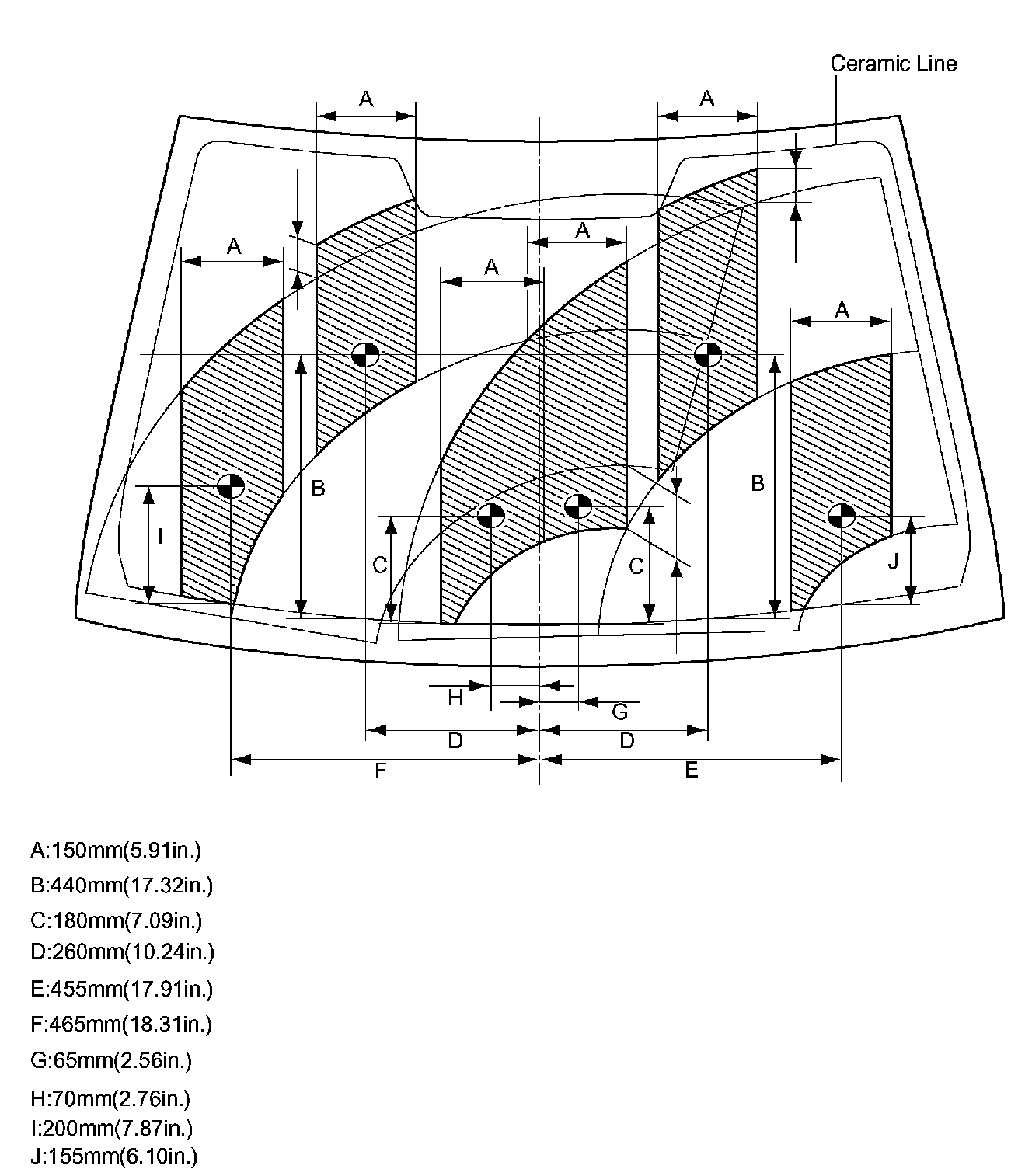

(a) With the engine running, check that the point where the washer fluid hits the windshield and the rear window is within the range indicated by the hatched line.
