B0100

DTC B0100 Short in D Squib Circuit

CIRCUIT DESCRIPTION

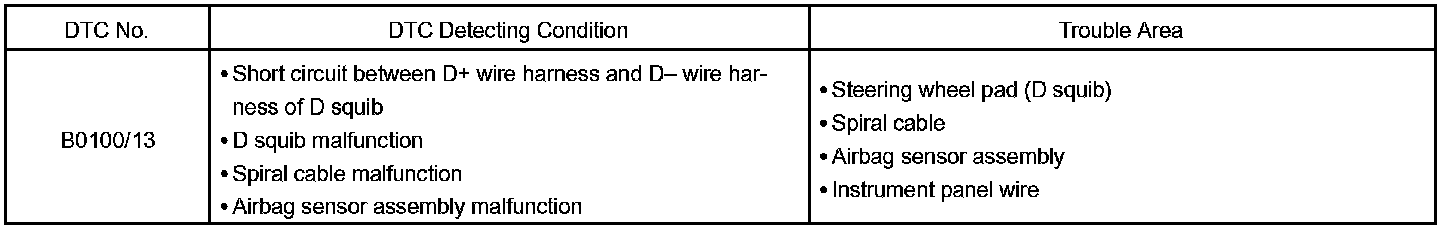

DTC Detection Condition:

The D squib circuit consists of the airbag sensor assembly, the spiral cable and the steering wheel pad. The circuit instructs the SRS to deploy when the relevant conditions are met.

For details of the functions of each component, see DESCRIPTION AND OPERATION.
DTC B0100/13 is recorded when a short circuit is detected in the D squib circuit.

Wiring Diagram:

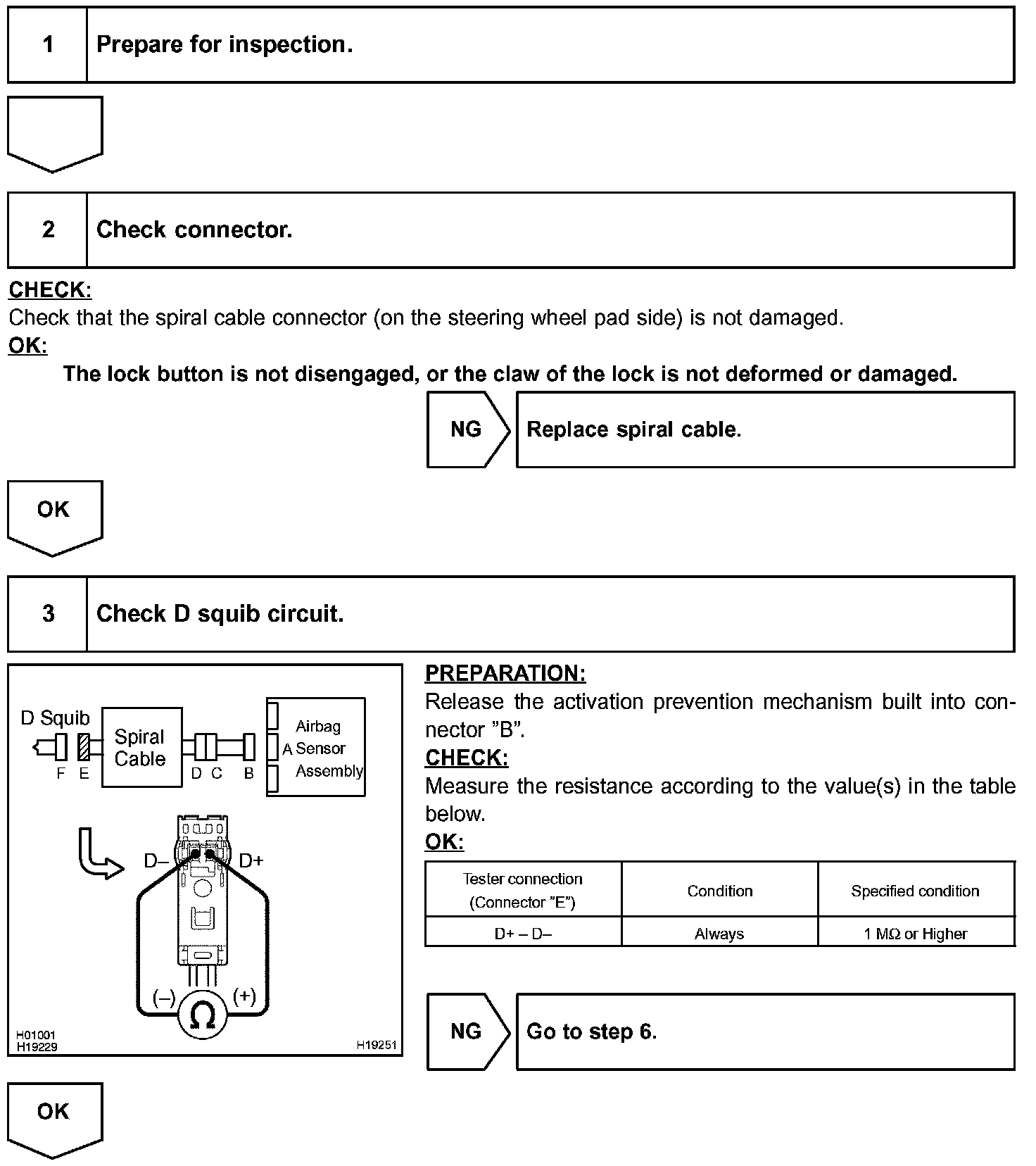

Step 1 - 3:

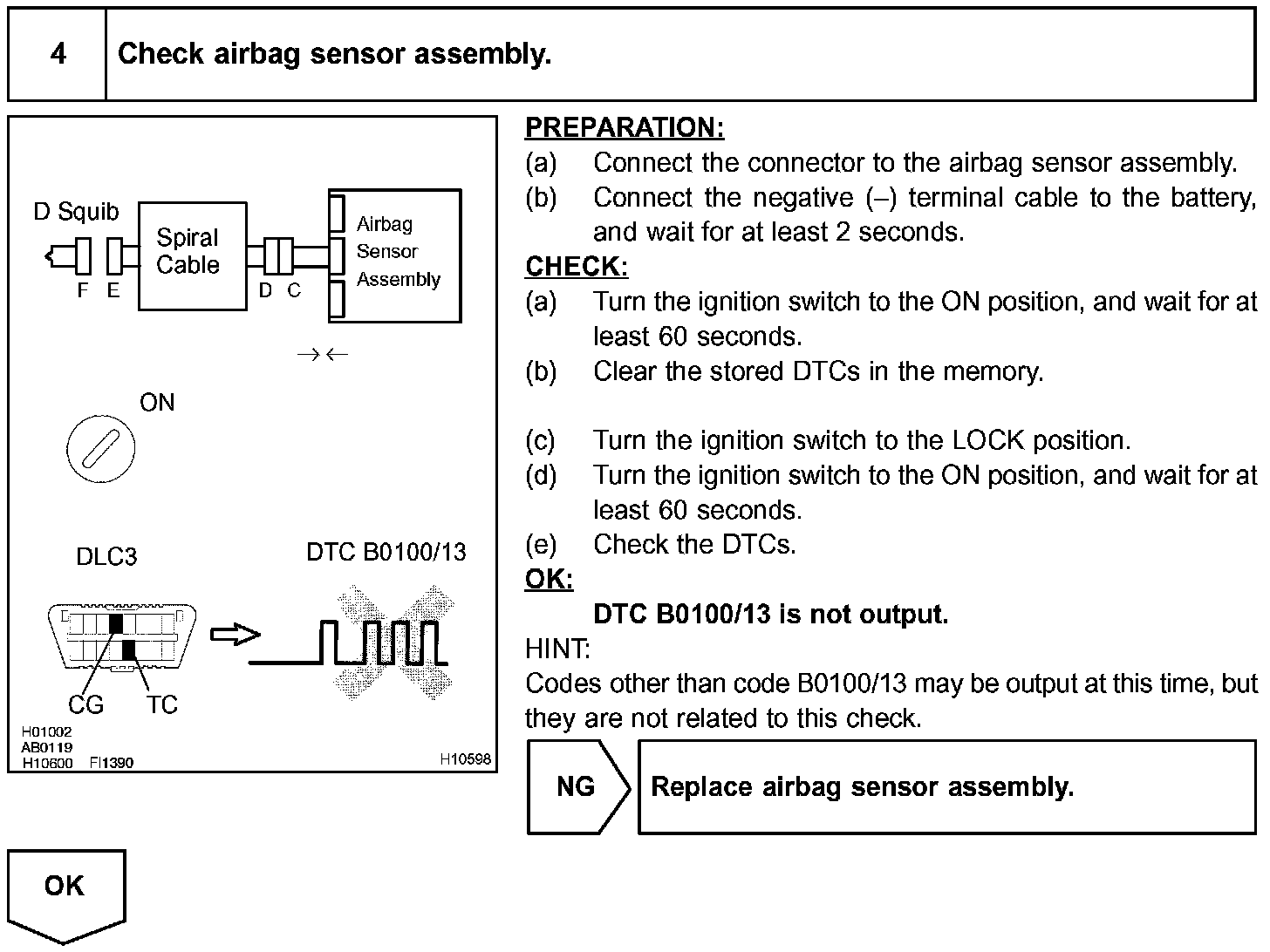

Step 4:

Step 5:

Step 6 - 7:

INSPECTION PROCEDURE
