B0113

DTC B0113 Short in Side Squib RH Circuit (to B+)

CIRCUIT DESCRIPTION

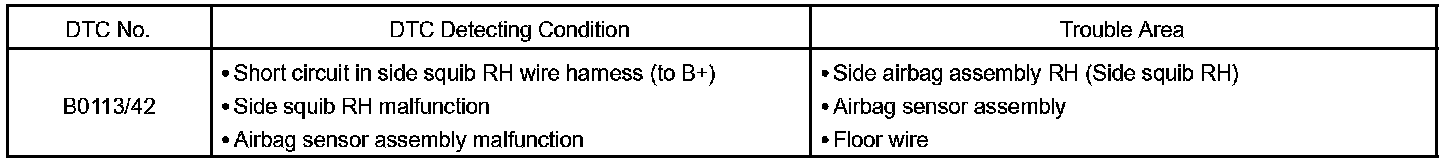

DTC Detection Condition:

The side squib RH circuit consists of the airbag sensor assembly and the side airbag assembly RH.

The circuit instructs the SRS to deploy when the relevant conditions are met. For details of the functions of each component, see DESCRIPTION AND OPERATION.
DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
