B0118

DTC B0118 Short in Side Squib LH Circuit (to B+)

CIRCUIT DESCRIPTION

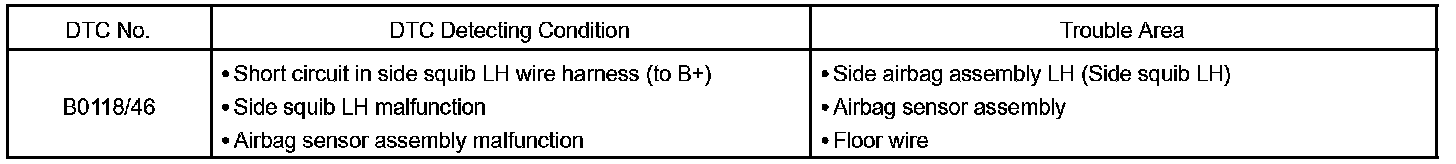

DTC Detection Condition:

The side squib LH circuit consists of the airbag sensor assembly and the side airbag assembly LH.

The circuit instructs the SRS to deploy when the relevant conditions are met. For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0118/46 is recorded when a short to B+ is detected in the side squib LH circuit.

Wiring Diagram:

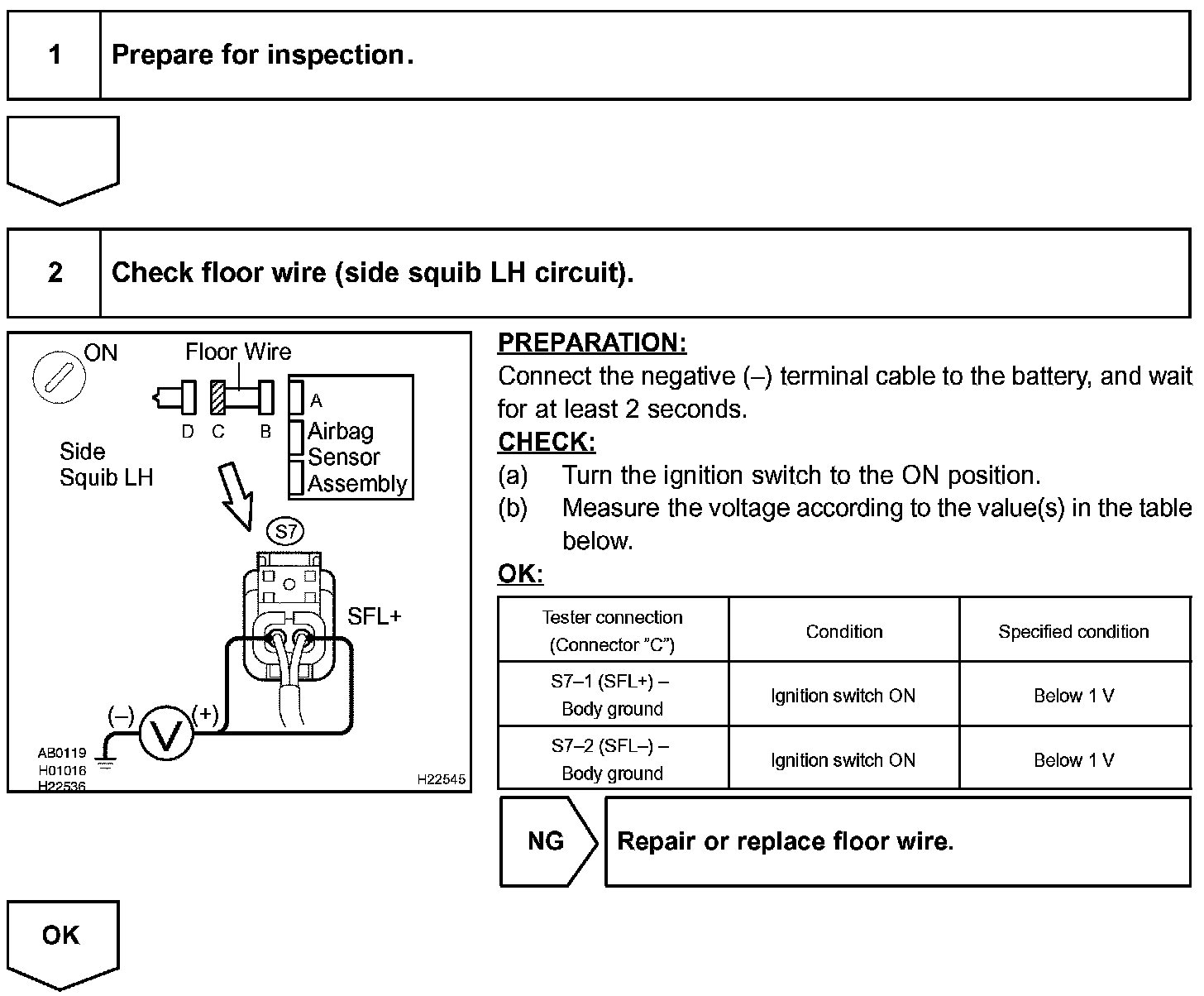

Step 1 - 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
