DTC B0131 Open in P/T Squib RH Circuit

CIRCUIT DESCRIPTION

DTC Detection Condition:

The P/T squib RH circuit consists of the airbag sensor assembly and the seat belt pretensioner RH.

The circuit instructs the SRS to deploy when the relevant conditions are met. For details of the functions of each component, see DESCRIPTION AND OPERATION.

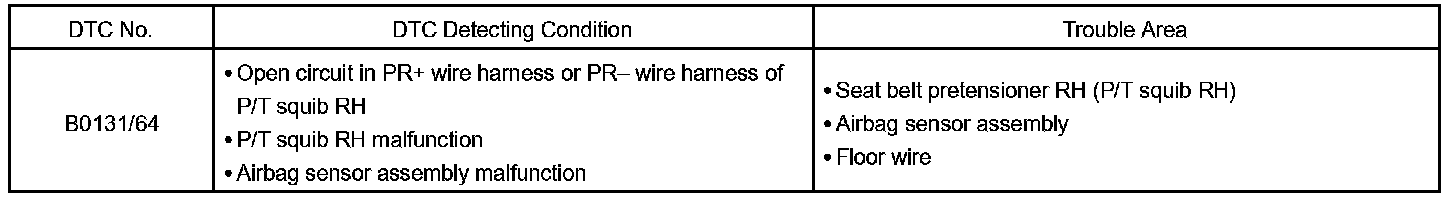

DTC B0131/64 is recorded when an open circuit is detected in the P/T squib RH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

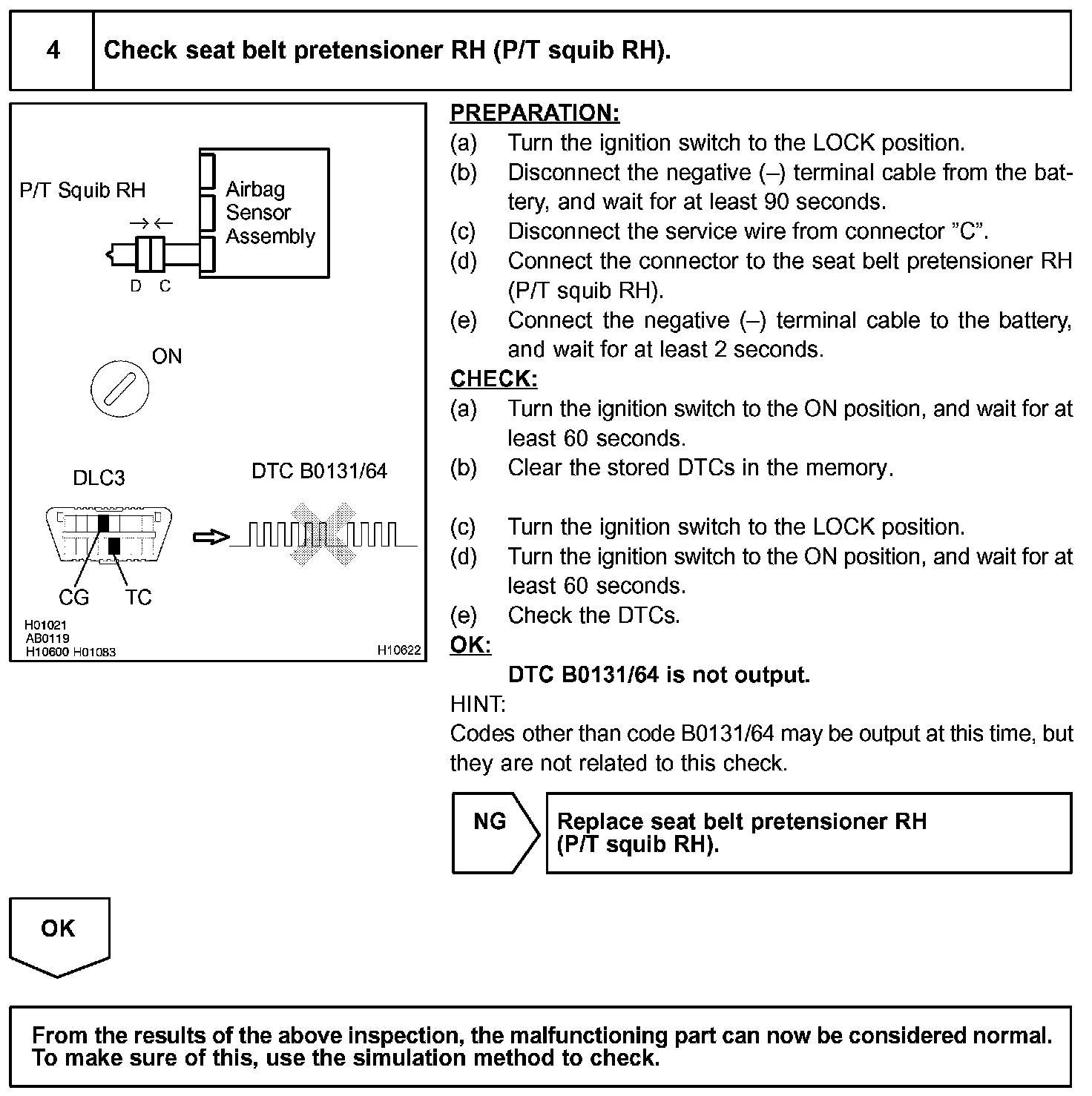

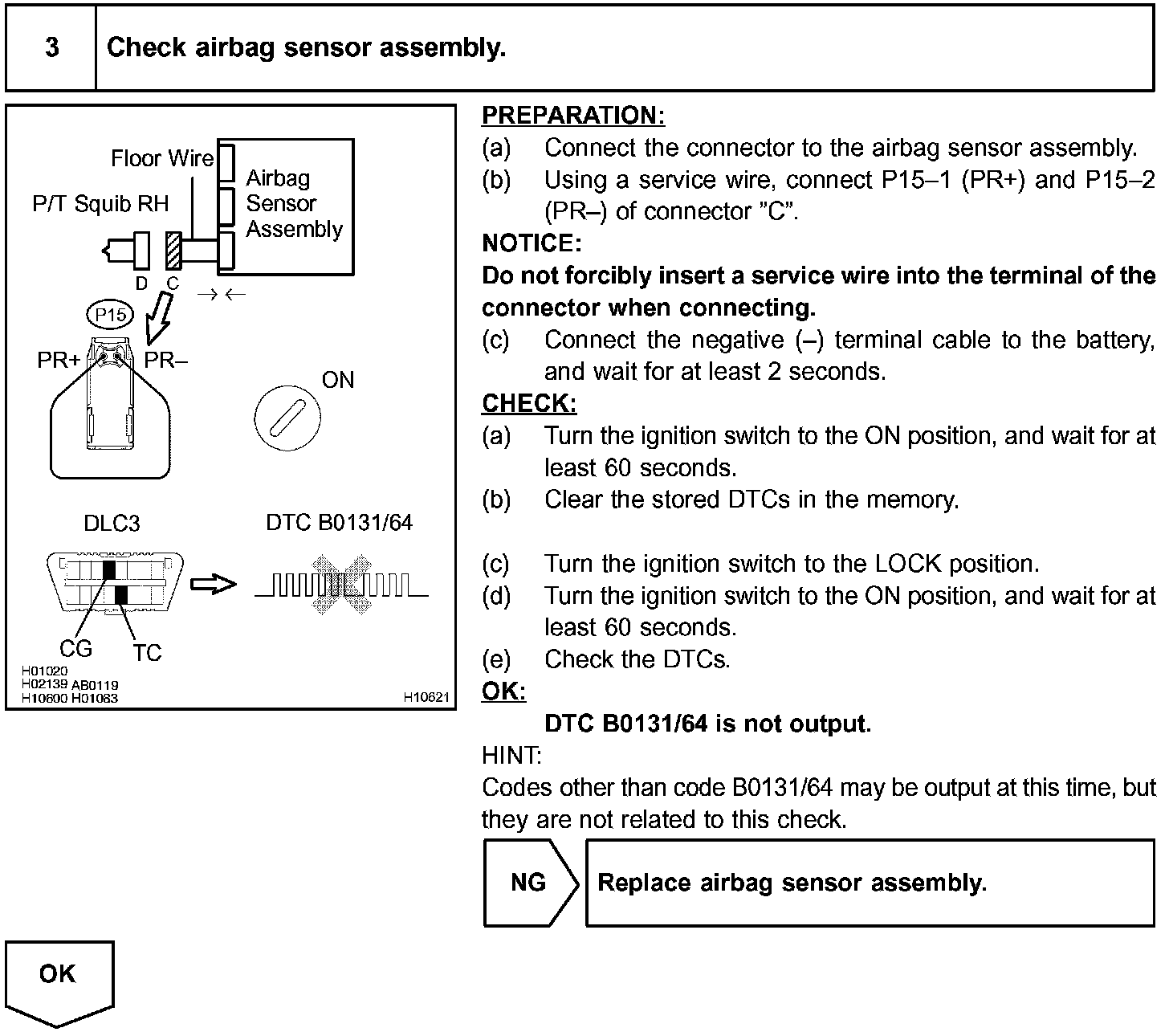

INSPECTION PROCEDURE
