B0133

DTC B0133 Short in P/T Squib RH Circuit (to B+)

CIRCUIT DESCRIPTION

DTC Detection Condition:

The P/T squib RH circuit consists of the airbag sensor assembly and the seat belt pretensioner RH.

The circuit instructs the SRS to deploy when the relevant conditions are met. For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0133/62 is recorded when a short to B+ is detected in the P/T squib RH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

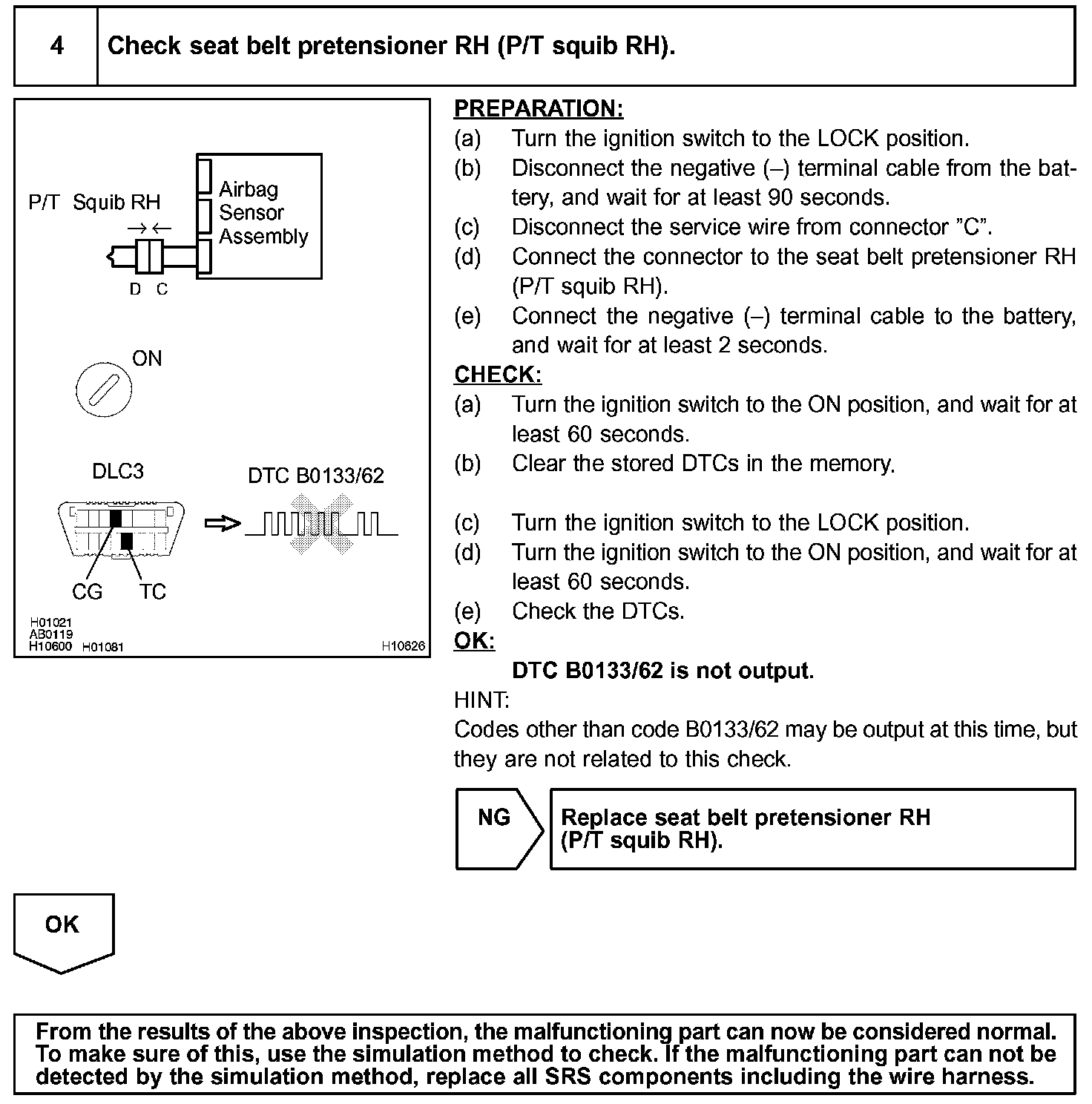

INSPECTION PROCEDURE
