B1142

DTC B1142 Right side door sensor open (2-Door only)

CIRCUIT DESCRIPTION

DTC Detection Condition:

The door side airbag sensor RH circuit consists of the airbag sensor assembly and the door side airbag sensor RH. For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B1142/34 or B1143/34 is recorded when a malfunction is detected in the door side airbag sensor RH circuit.

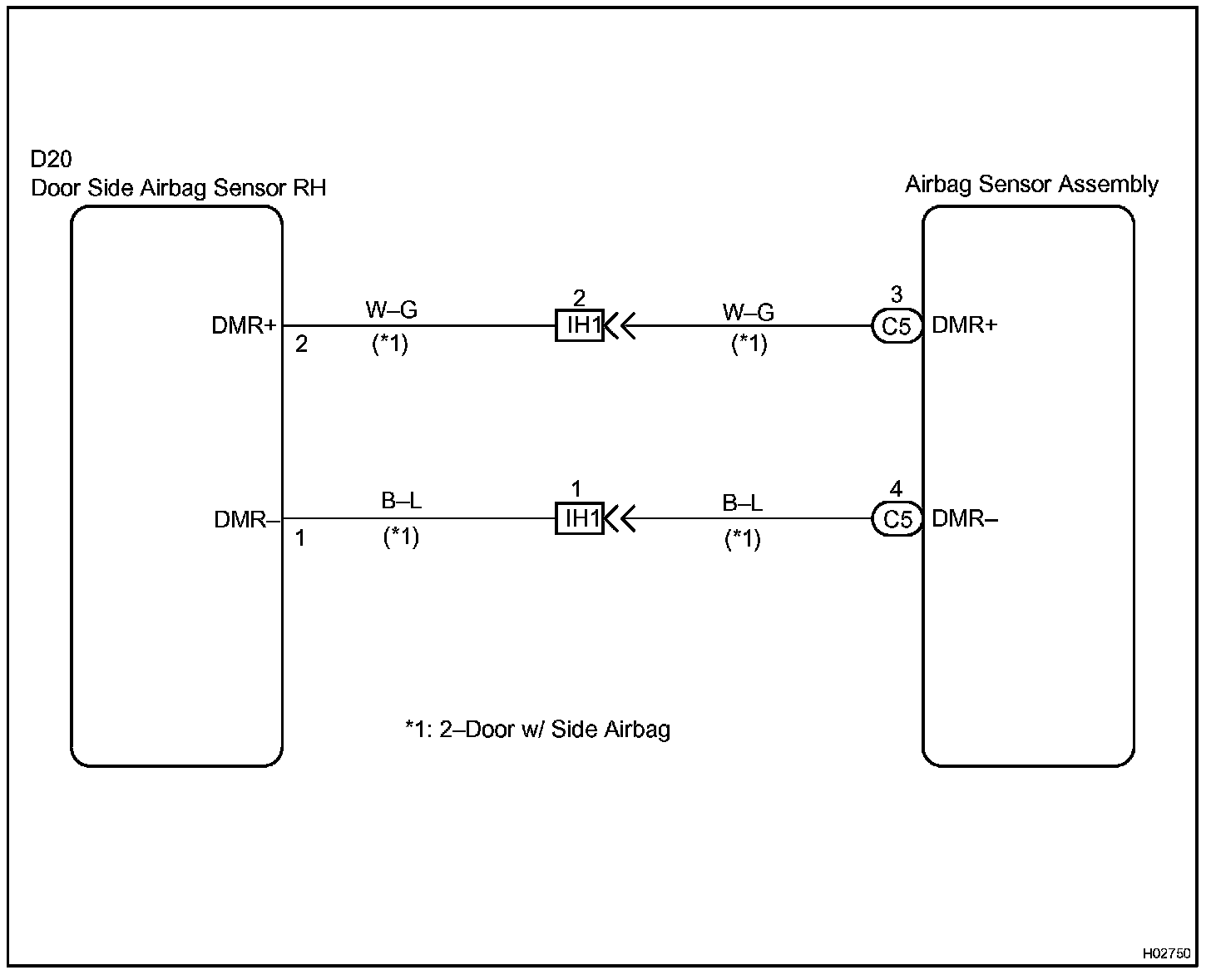

Wiring Diagram:

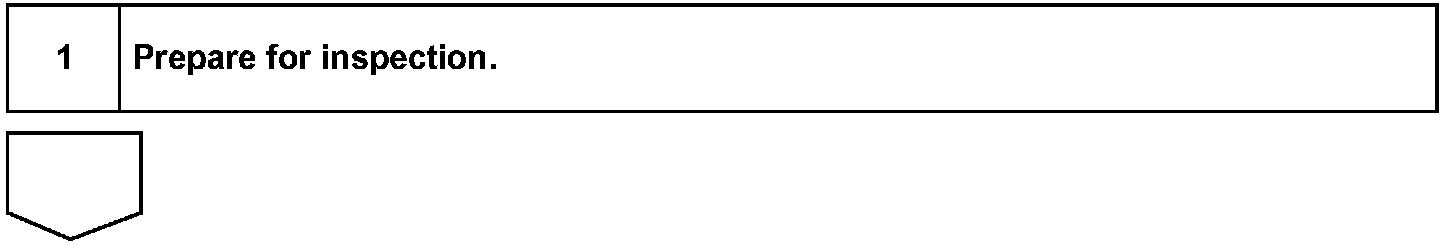

Step 1:

Step 2 - 3:

Step 4 - 5:

Step 6:

Step 7:

Step 8:

Step 9 - 10:

Step 11:

INSPECTION PROCEDURE
