B1145

DTC B1145 Left side door sensor GND short (2-Door only)

CIRCUIT DESCRIPTION

DTC Detection Condition:

The door side airbag sensor LH circuit consists of the airbag sensor assembly and the door side airbag sensor LH. For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B1144/35 or B1145/35 is recorded when a malfunction is detected in the door side airbag sensor LH circuit.

Wiring Diagram:

Step 1:

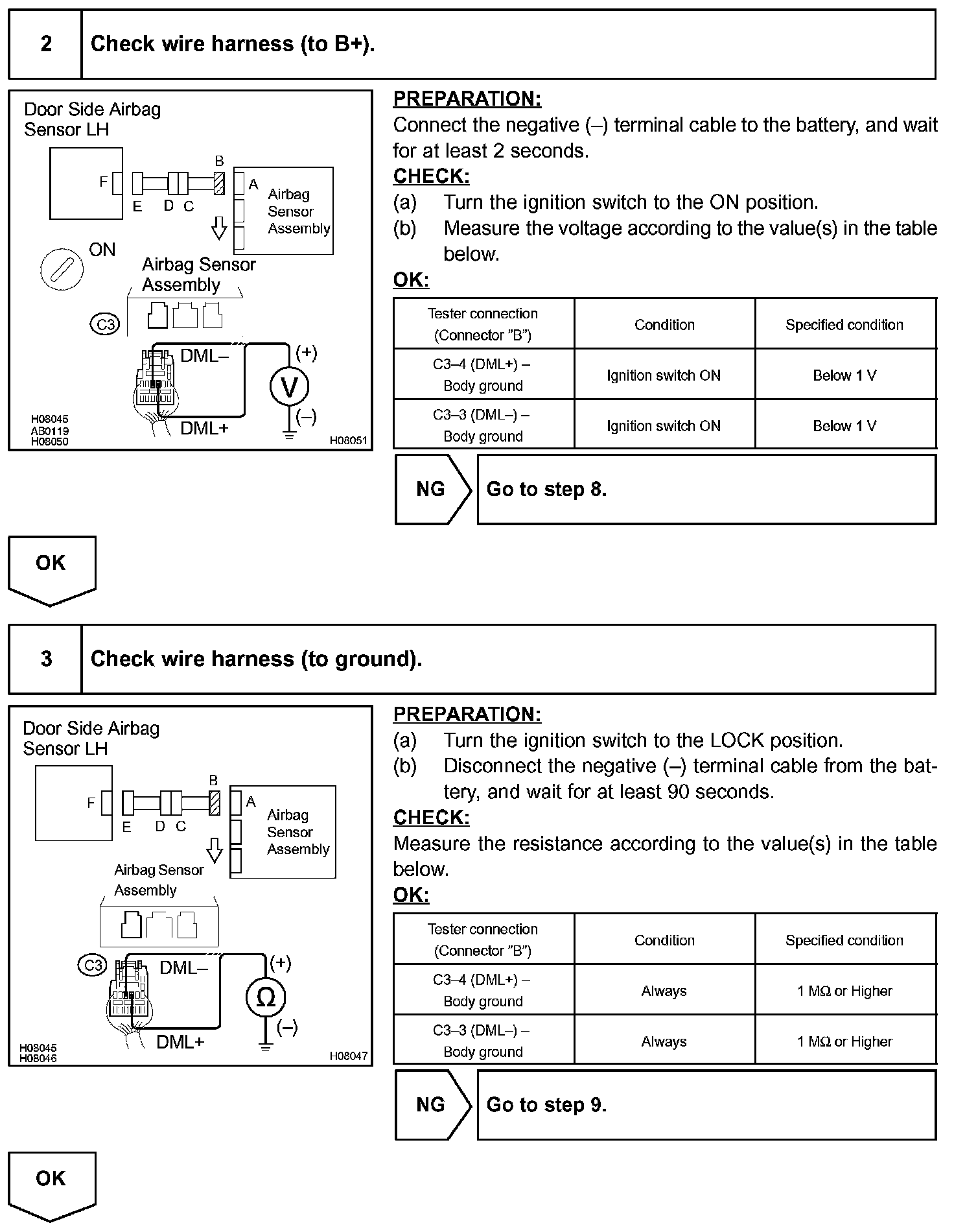

Step 2 - 3:

Step 4 - 5:

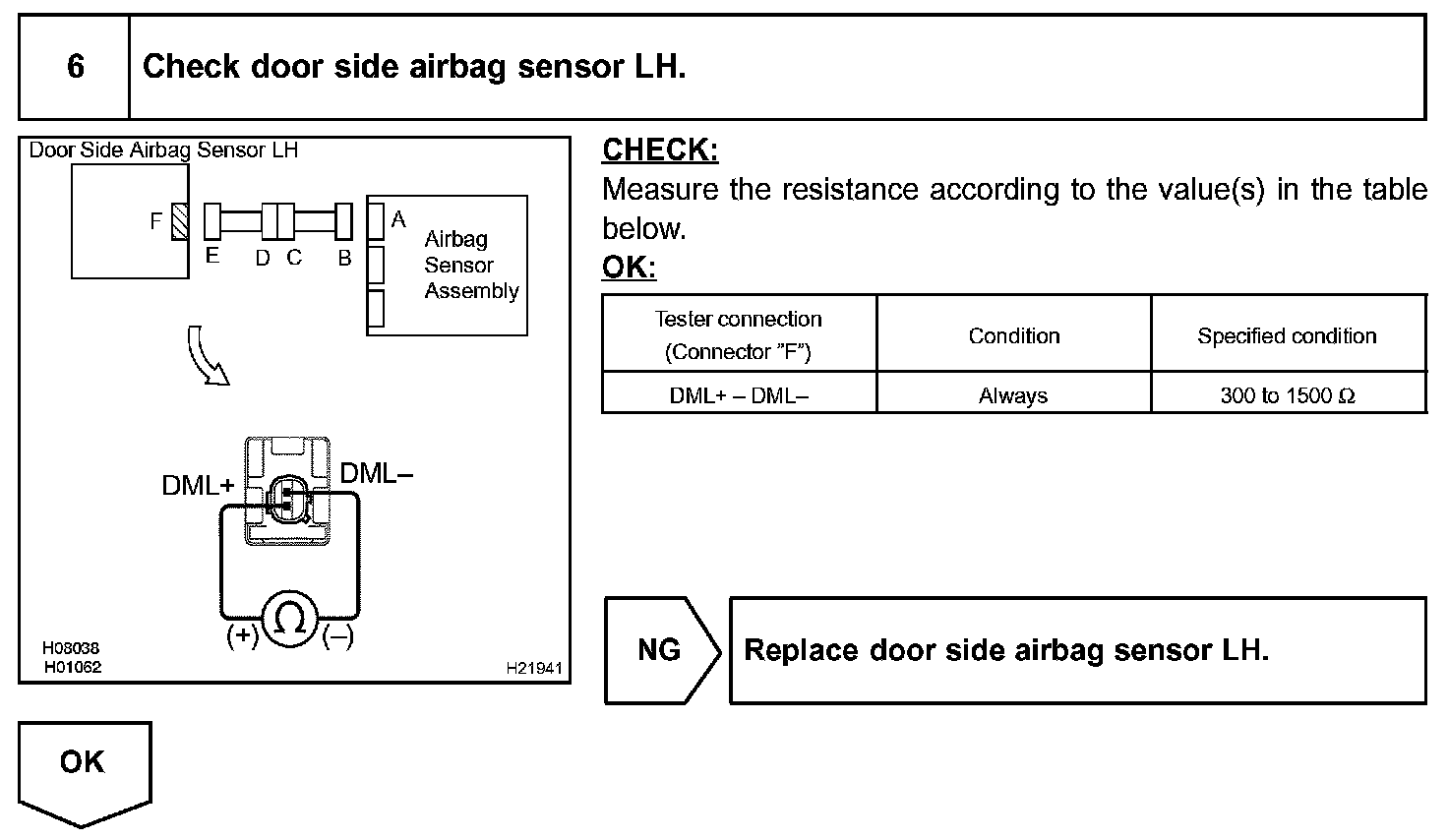

Step 6:

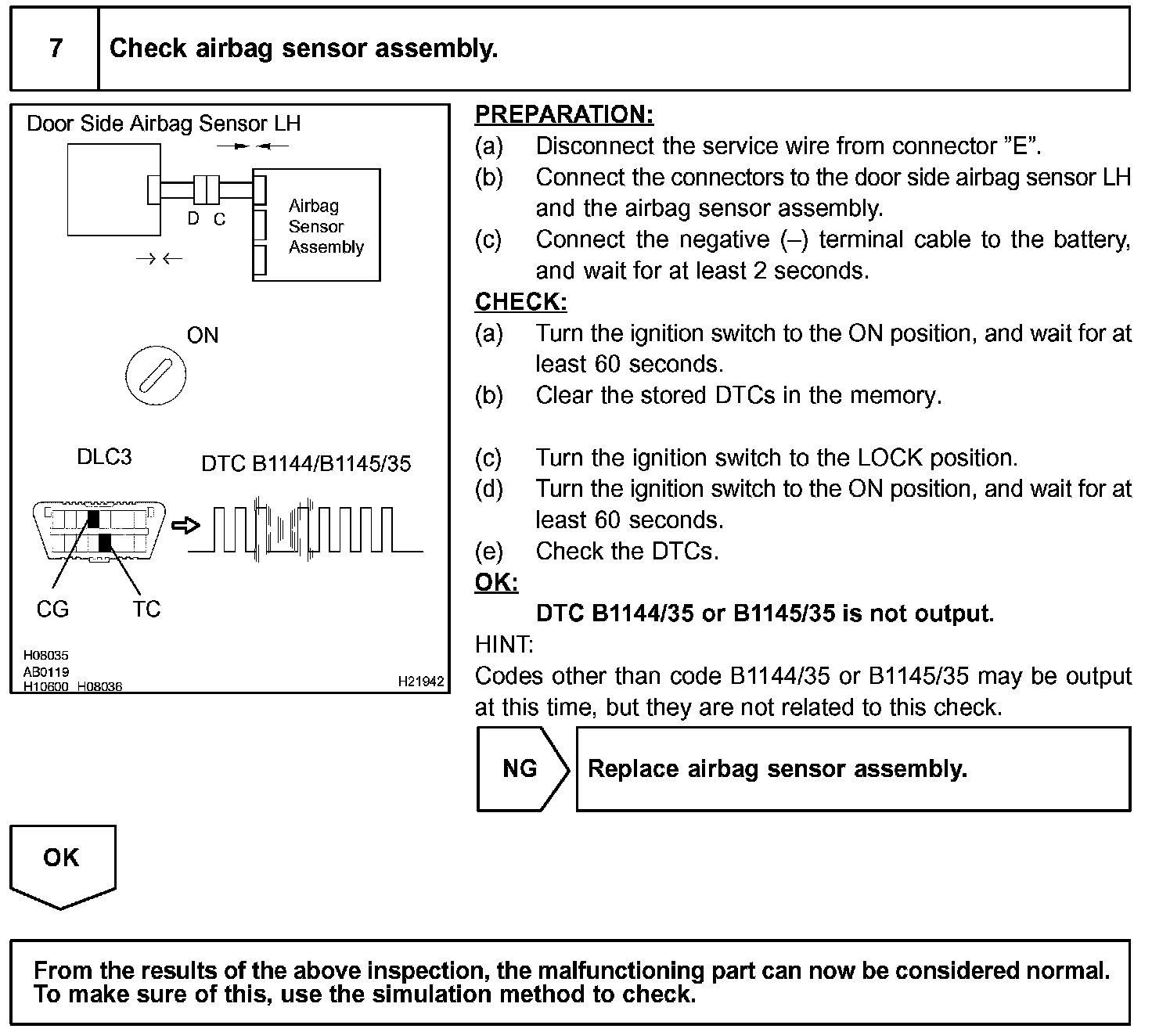

Step 7:

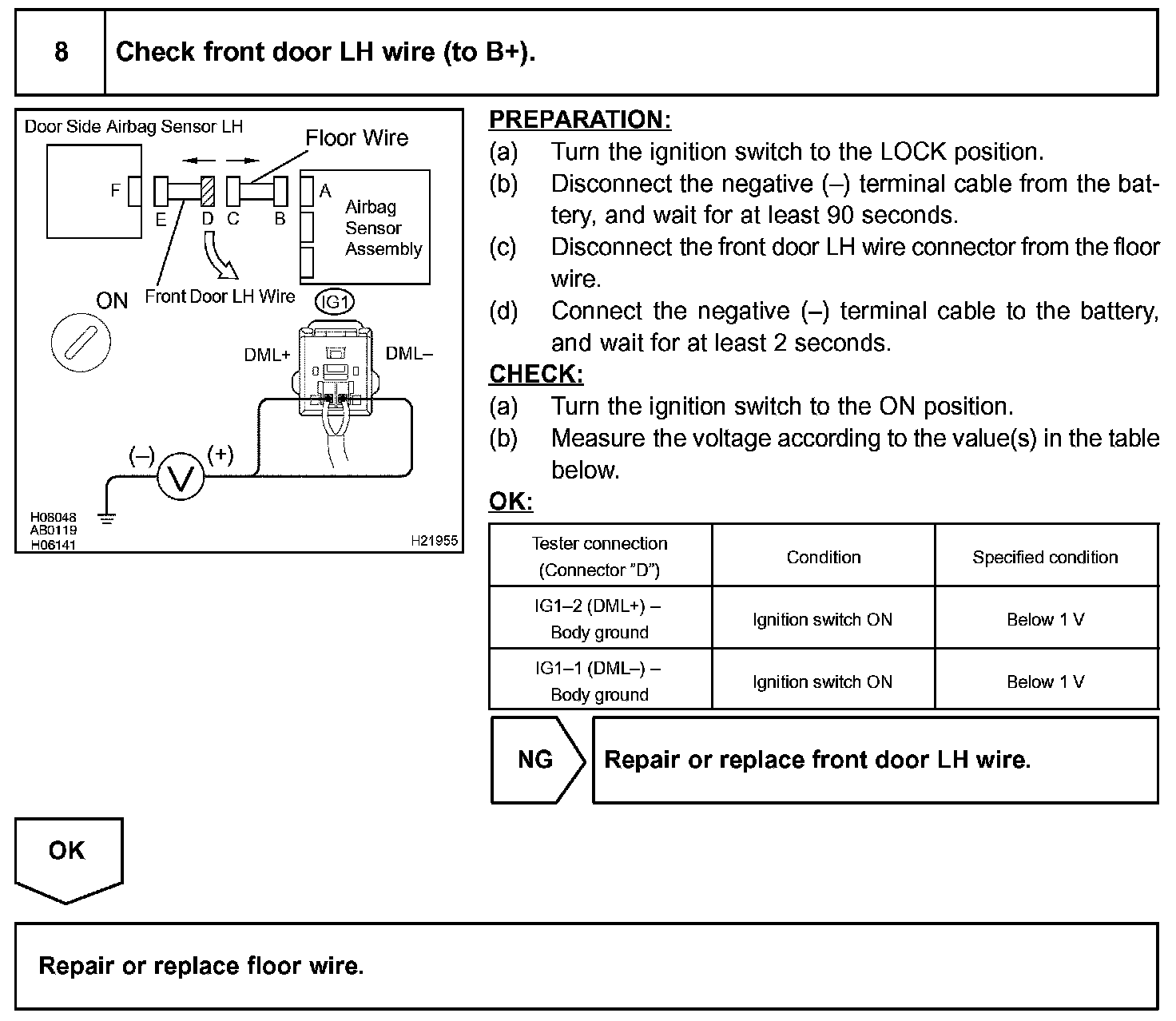

Step 8:

Step 9 - 10:

Step 11:

INSPECTION PROCEDURE
