B1159

DTC B1159 Front Airbag Sensor LH Malfunction

CIRCUIT DESCRIPTION

DTC Detection Condition:

The front airbag sensor LH circuit consists of the airbag sensor assembly and the front airbag sensor LH. For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B1158/16 or B1159/16 is recorded when a malfunction is detected in the front airbag sensor LH circuit.

Wiring Diagram:

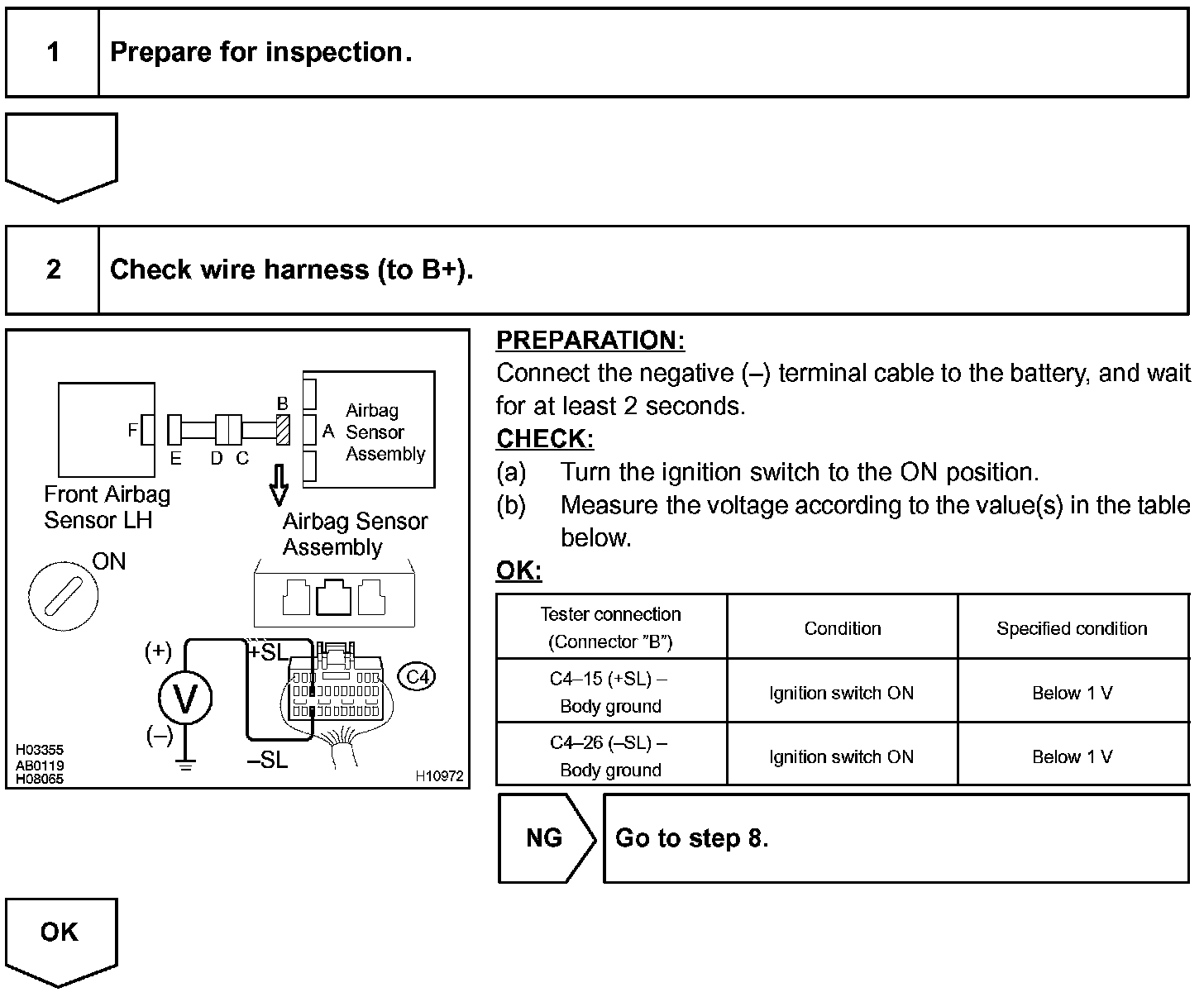

Step 1 - 2:

Step 3 - 4:

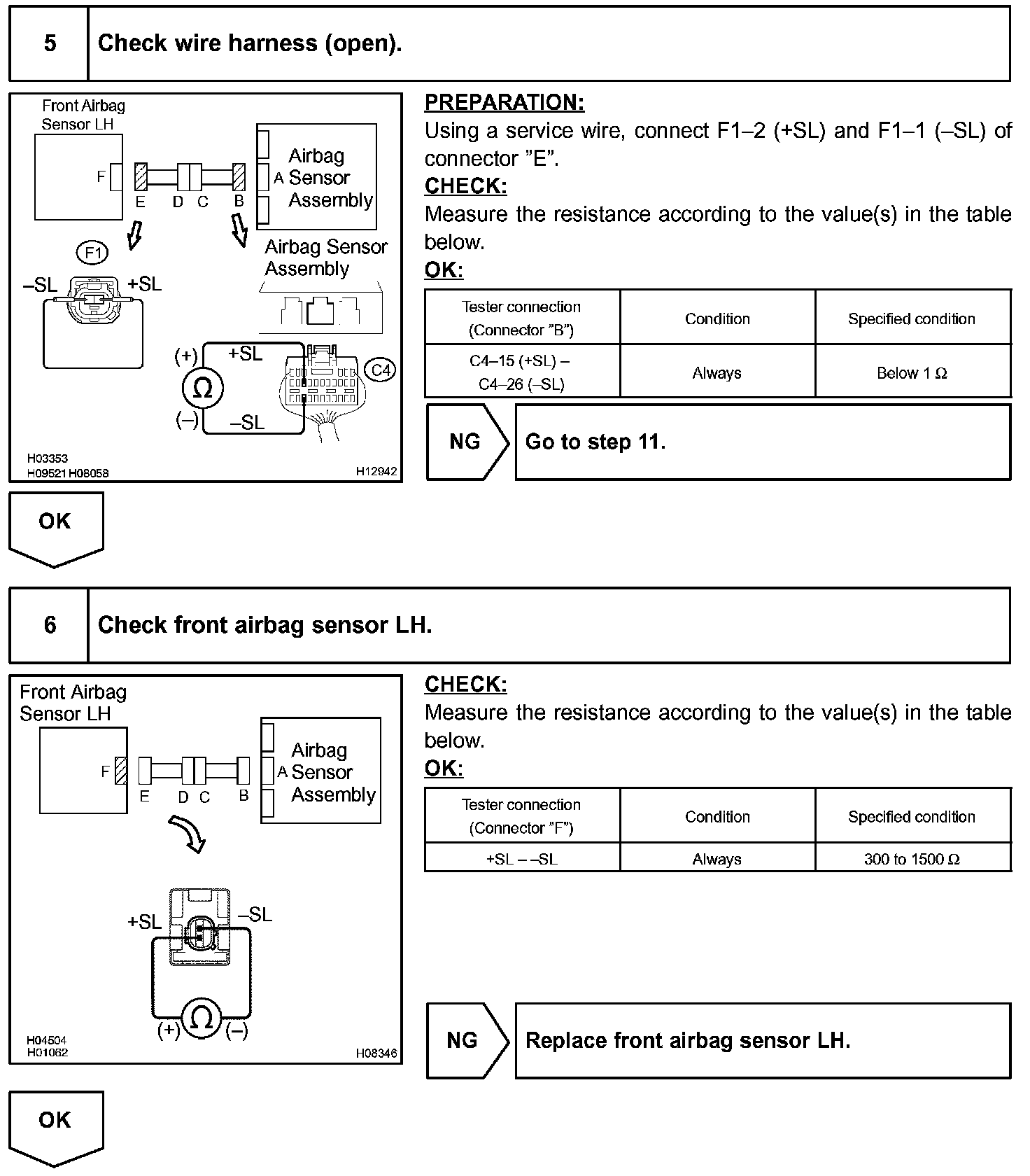

Step 5 - 6:

Step 7:

Step 8:

Step 9 - 10:

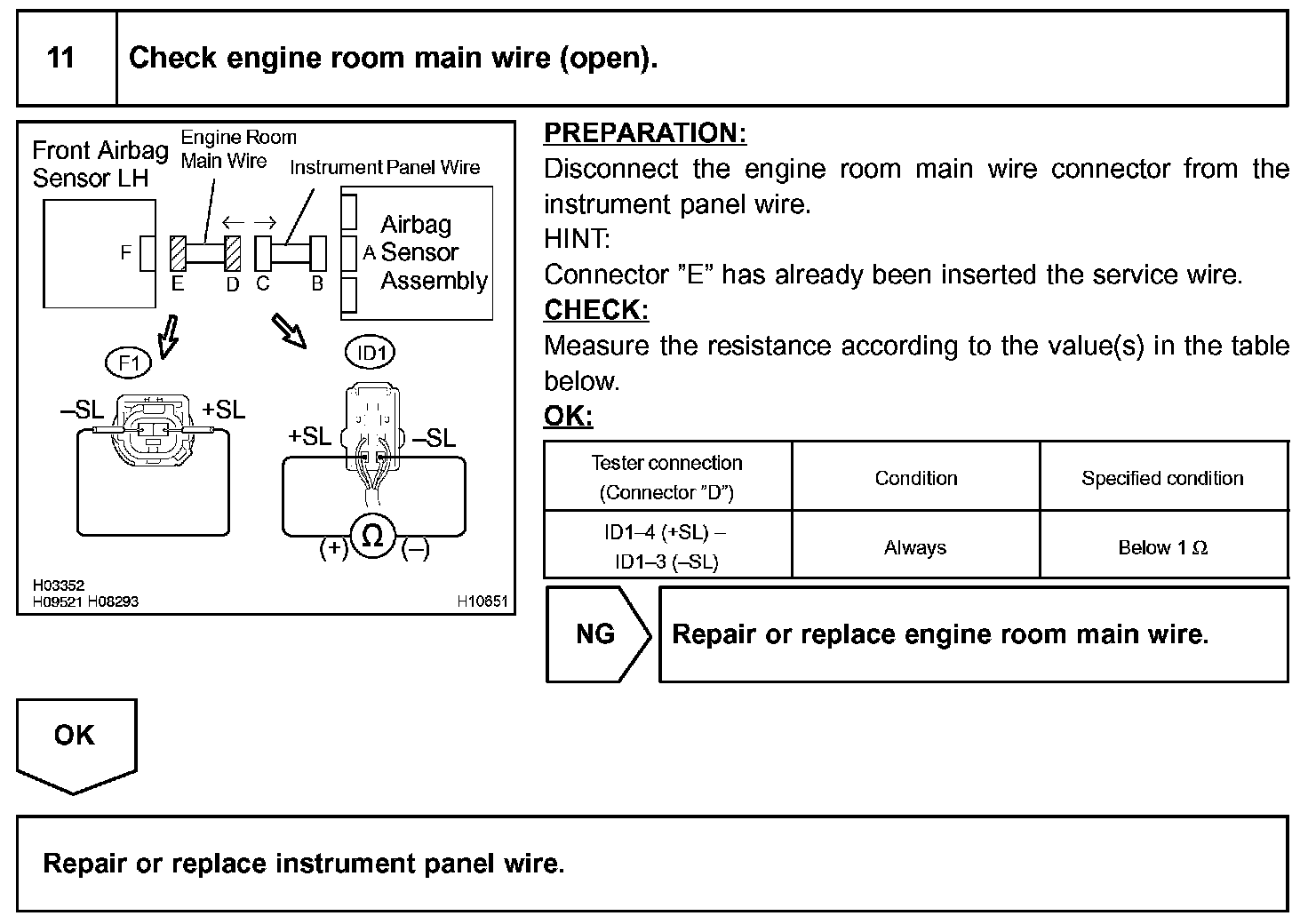

Step 11:

INSPECTION PROCEDURE
