Specifications
>>
Mechanical Specifications
Mechanical Specifications

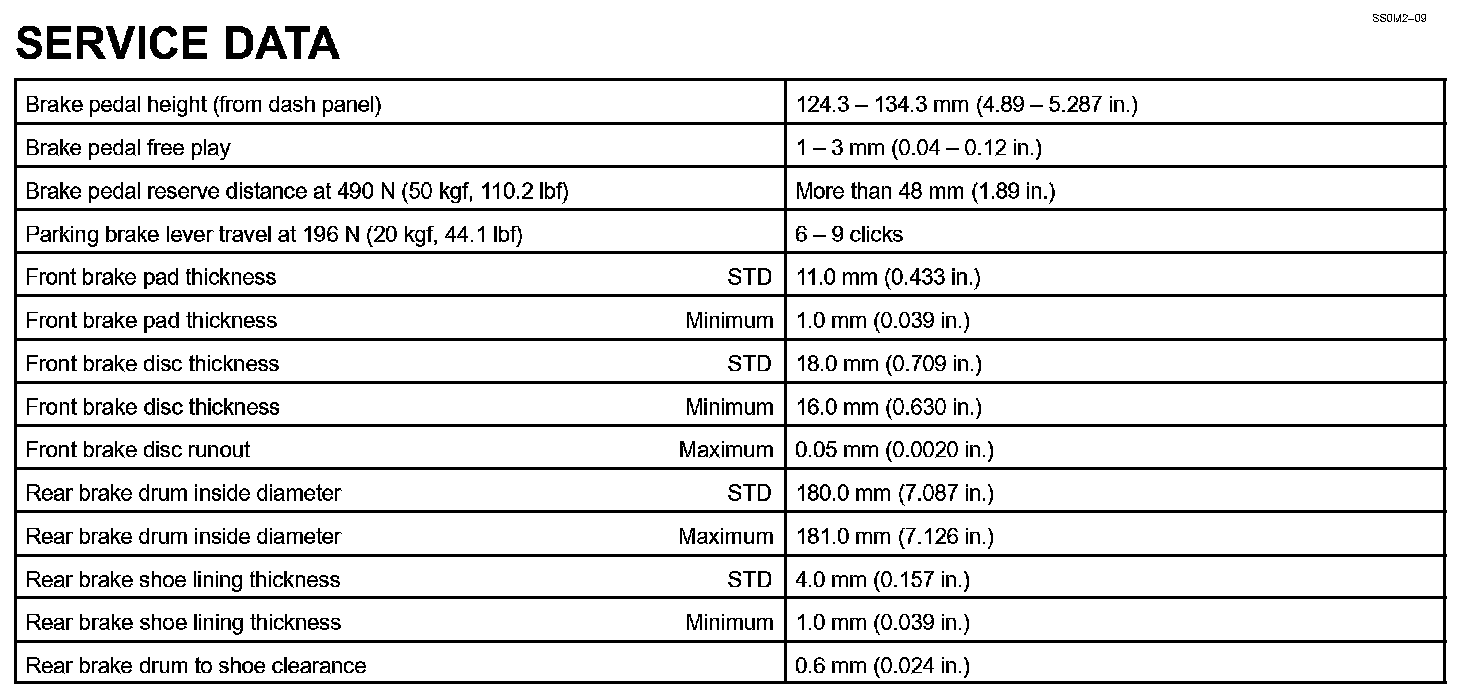

Brake - Service Data:

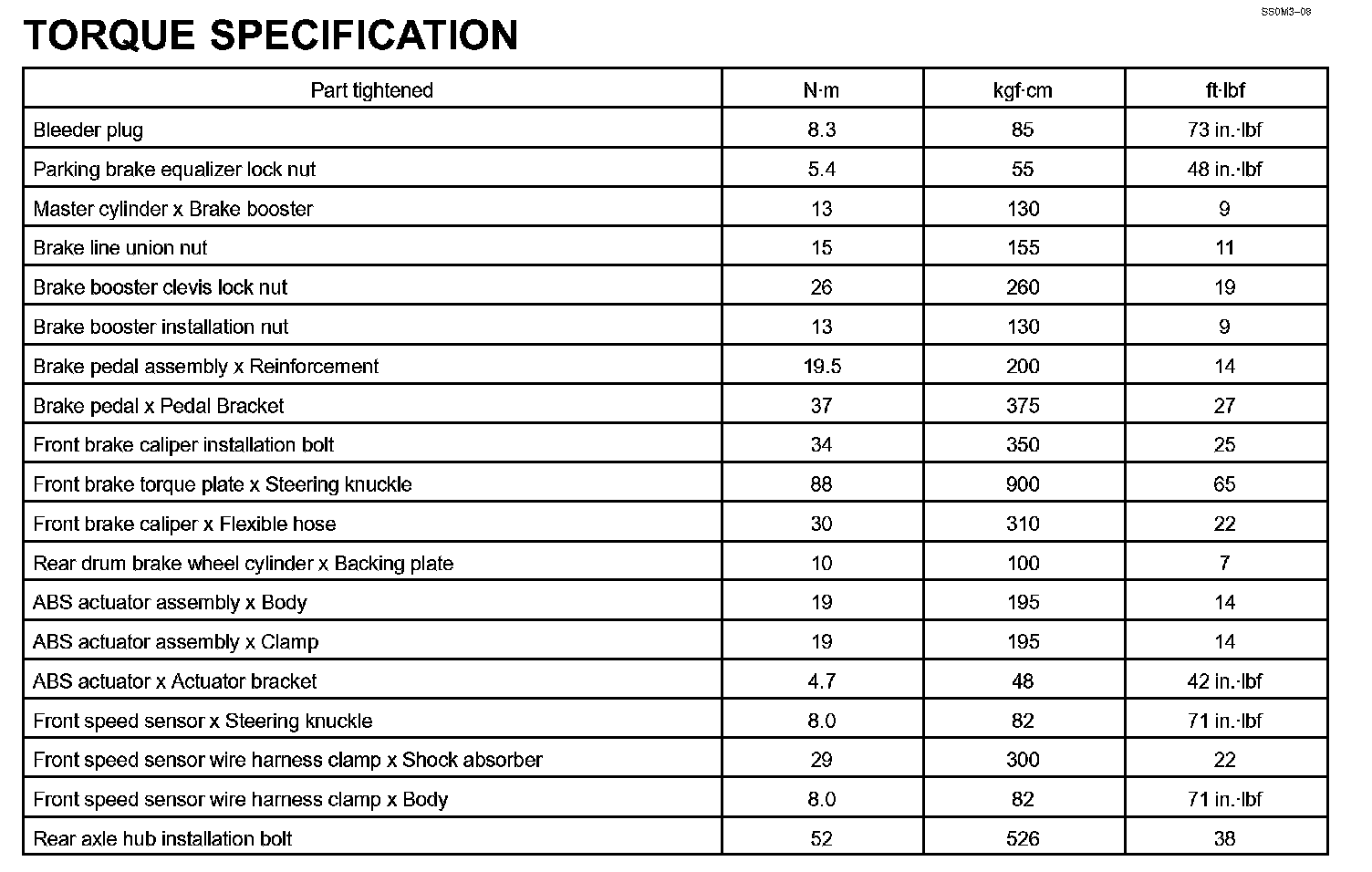

Brake - Torque Specification:
