Home >> Toyota >> 2004 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door

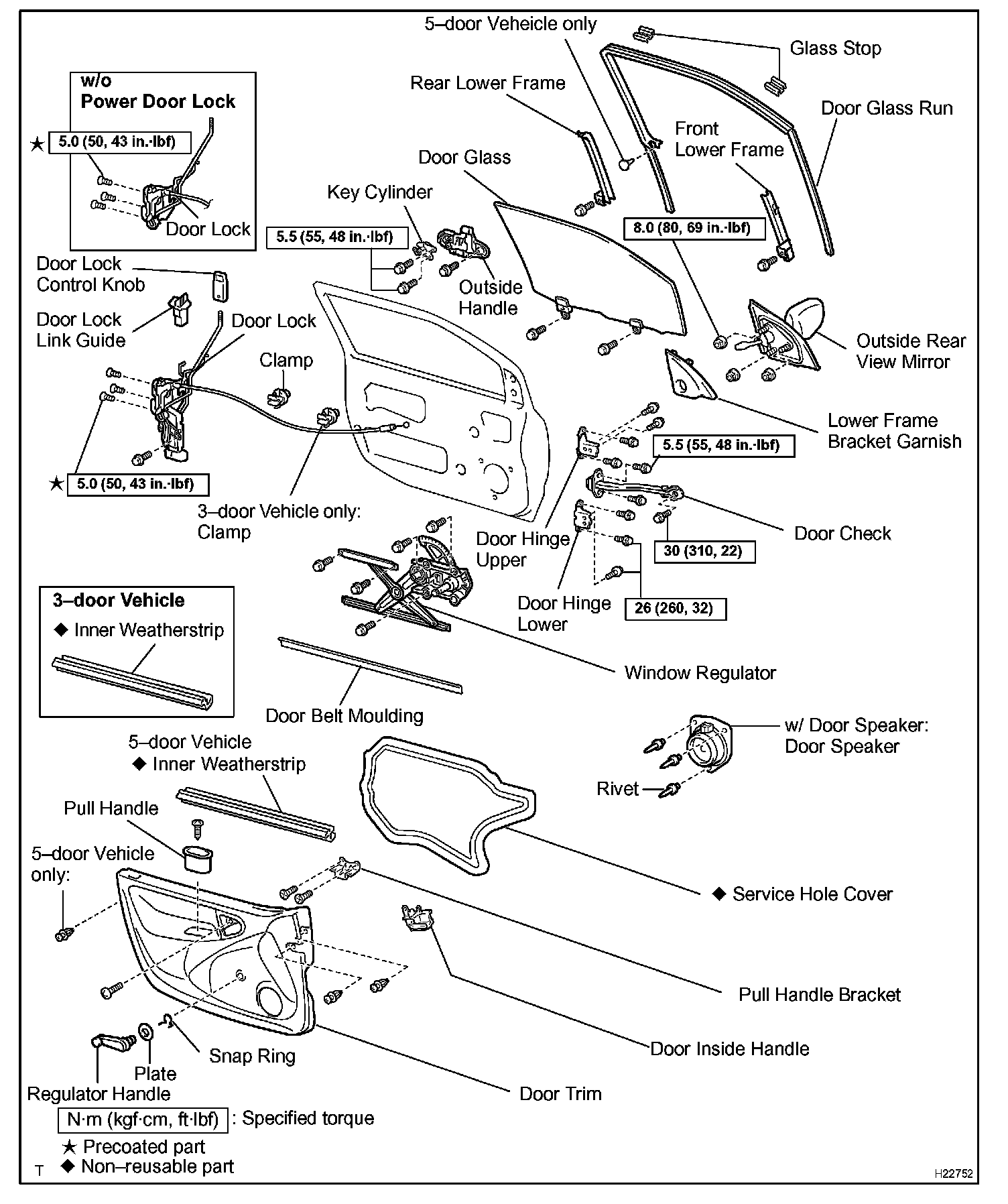

Front Door

Front Door (Sedan):



Front Door (Hatchback):
