Trunk / Liftgate
Trunk / Liftgate

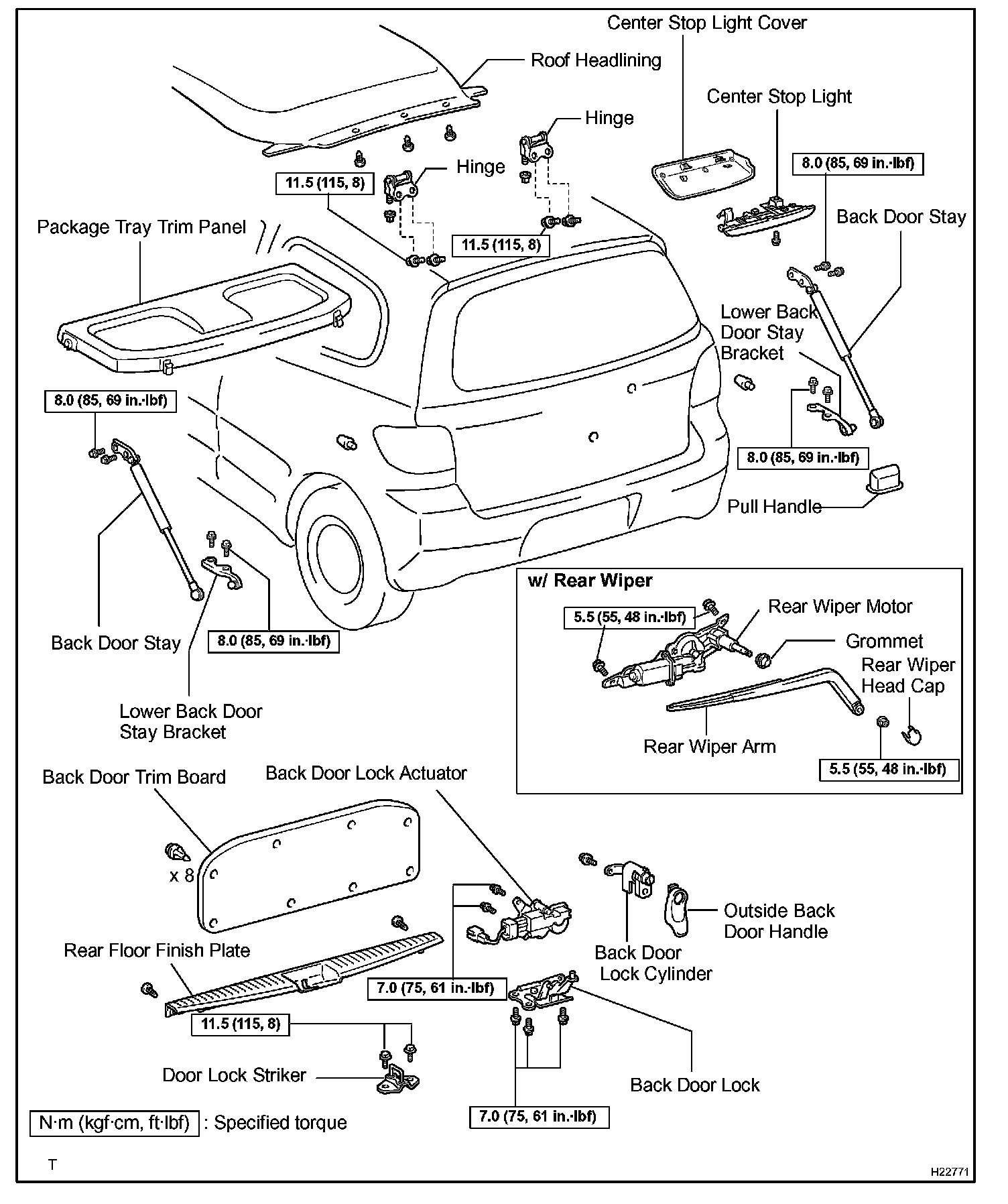

Back Door (Hatchback):
Luggage Compartment Door And Hinge (Sedan):
Luggage Compartment Door And Hinge (Sedan):
