Cabin Air Filter / Purifier: Service and Repair

AIR REFINER FILTER REPLACEMENT







1. REMOVE GLOVE COMPARTMENT DOOR
2. REPLACE AIR REFINER FILTER

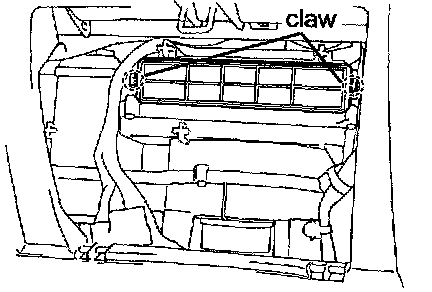

(a) Release the 2 claws and pull out the filter case.
(b) Remove the filter.
(c) Install the new filter.
(d) Install the filter case to A/C unit.

3. INSTALL GLOVE COMPARTMENT DOOR
