Compressor Clutch Relay: Testing and Inspection
MAGNETIC CLUTCH RELAYINSPECTION

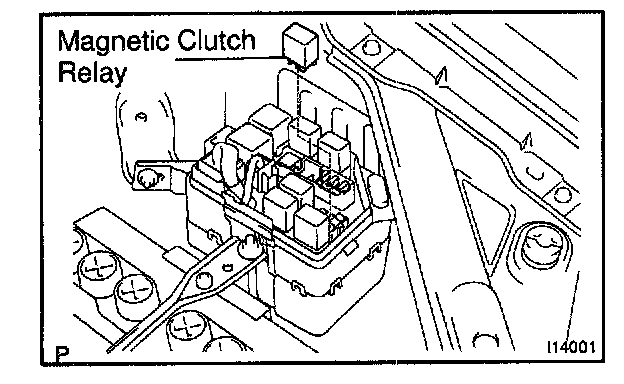

1. REMOVE MAGNETIC CLUTCH RELAY (Marking: A/C MG) FROM ENGINE ROOM RELAY BLOCK

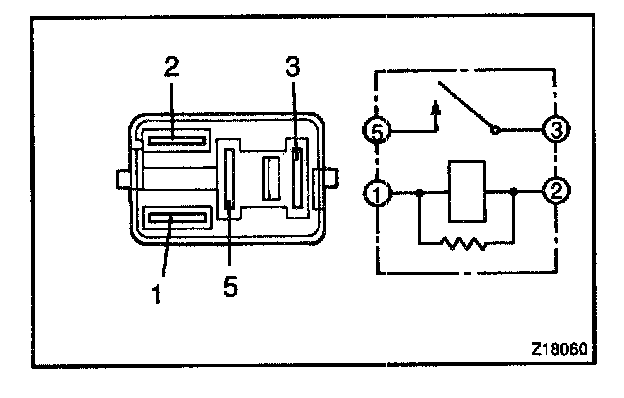

2. INSPECT MAGNETIC CLUTCH RELAY (Marking: A/C MG) CONTINUITY
If continuity is not as specified, replace the relay.
3. INSTALL MAGNETIC CLUTCH RELAY TO ENGINE ROOM RELAY BLOCK
