Multiple Junction Connector
>>
Locations
Multiple Junction Connector: Locations

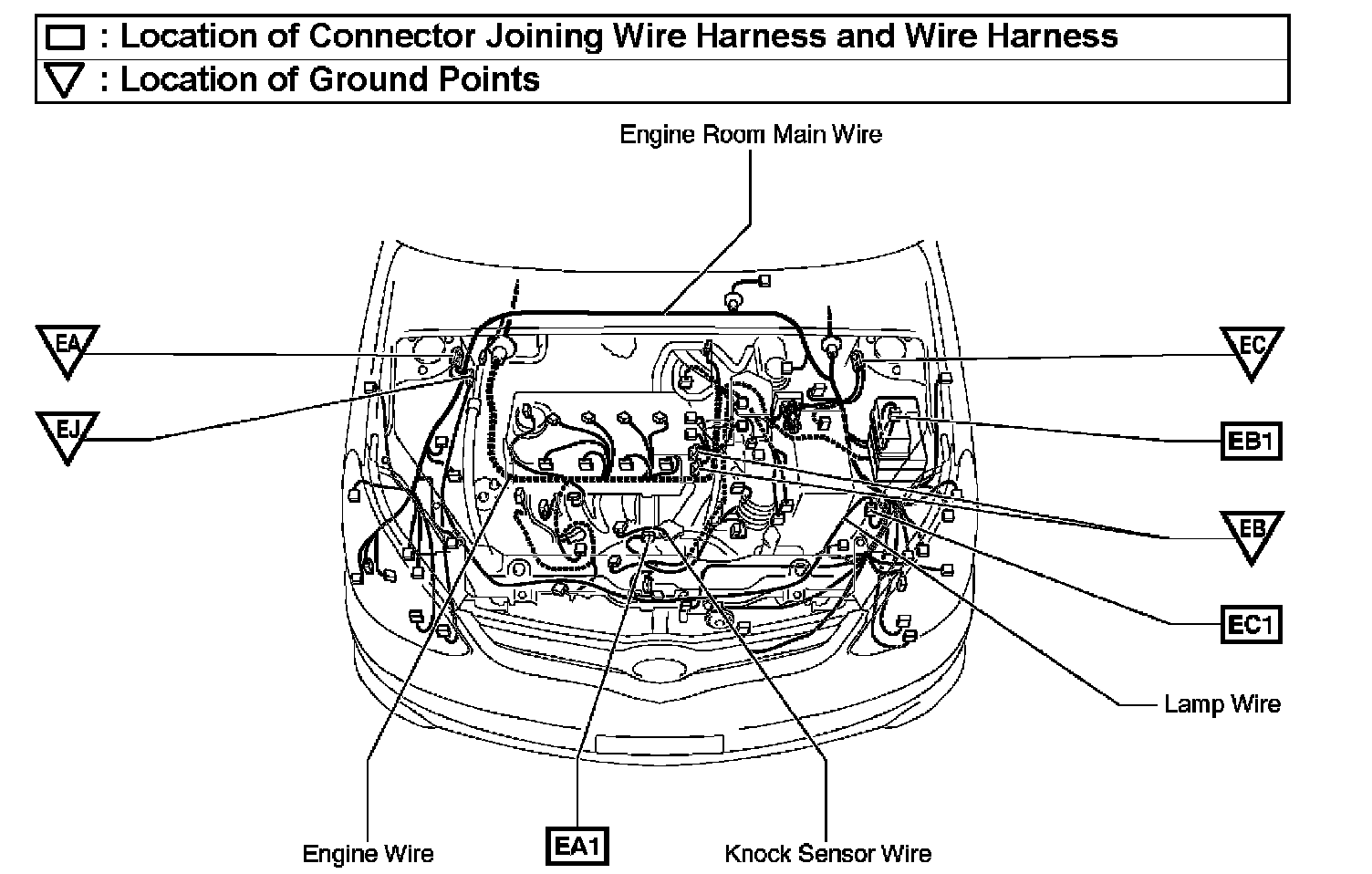

EA - EJ, EA1 - EC1:

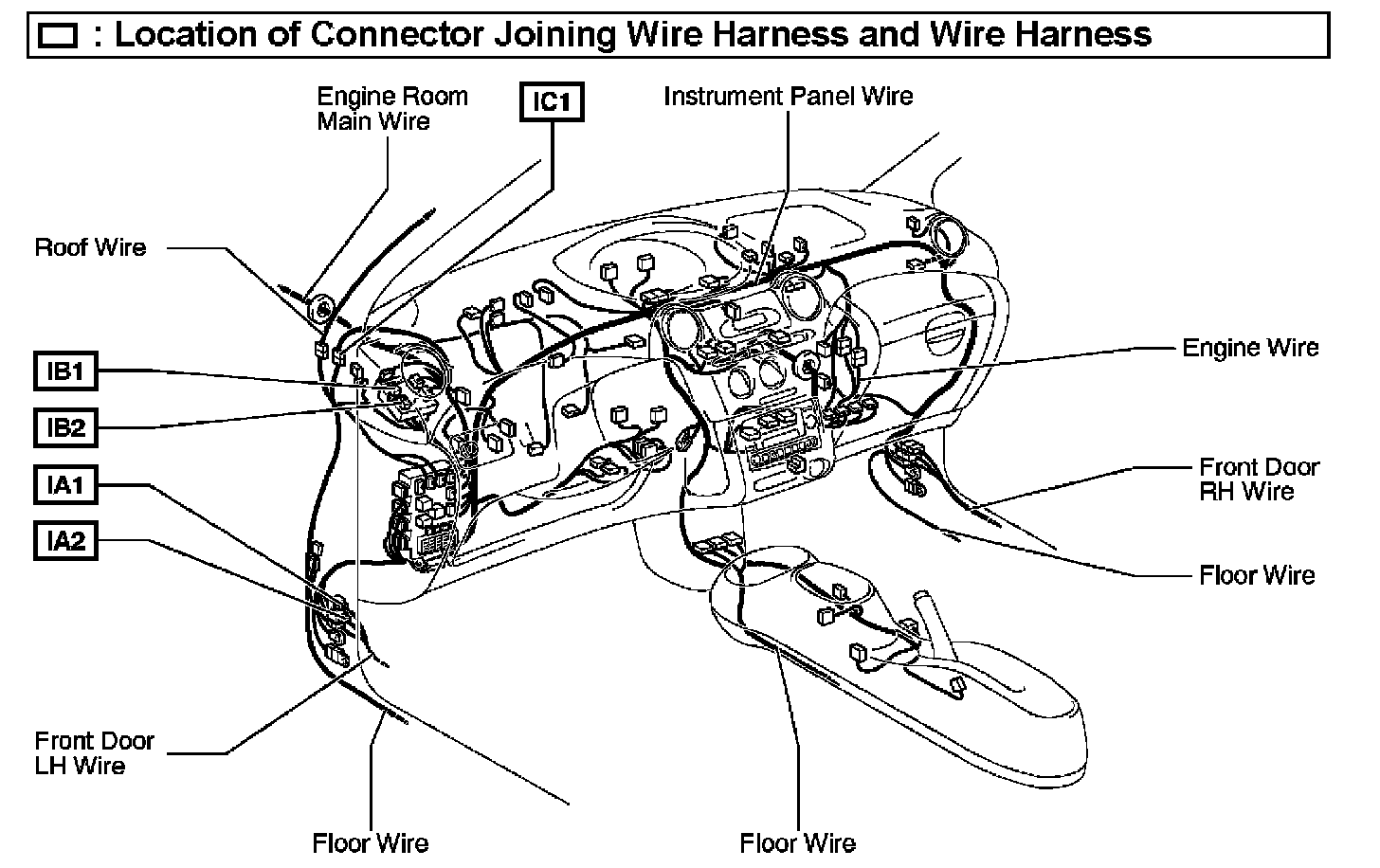

IA1 - IC1:
ID1 - II1:
BA1 - BD1, BG - BI:

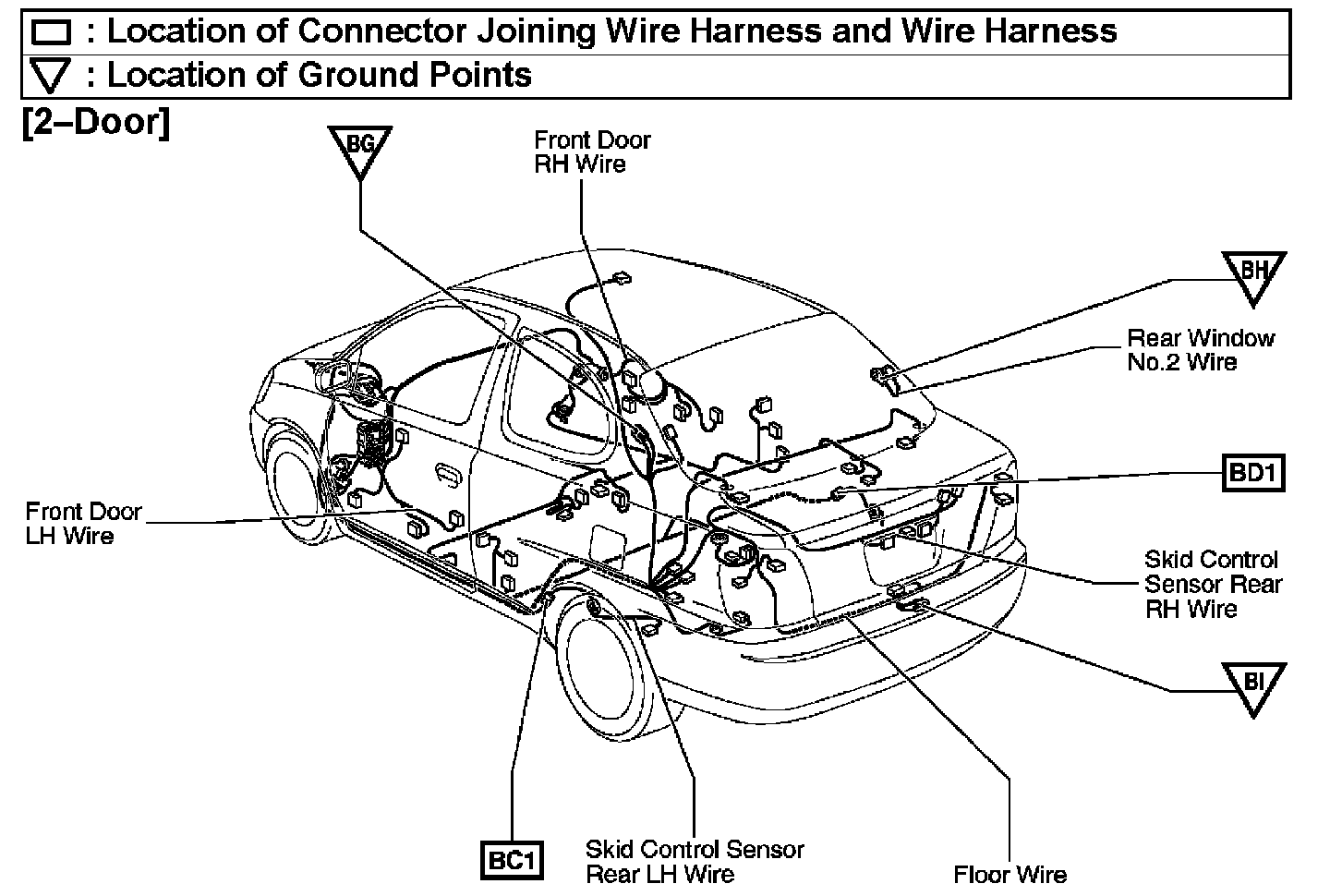

BC1 - BD1, BG - BI:
BA1 - BG1, BG - BH:
BC1 - BG1, BG - BH:
