B1188

DTC B1188 SHORT IN SQUIB (2ND STEP) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1188/56 is recorded when a B+ short is detected in the P squib (2nd step) circuit.

Wiring Diagram:

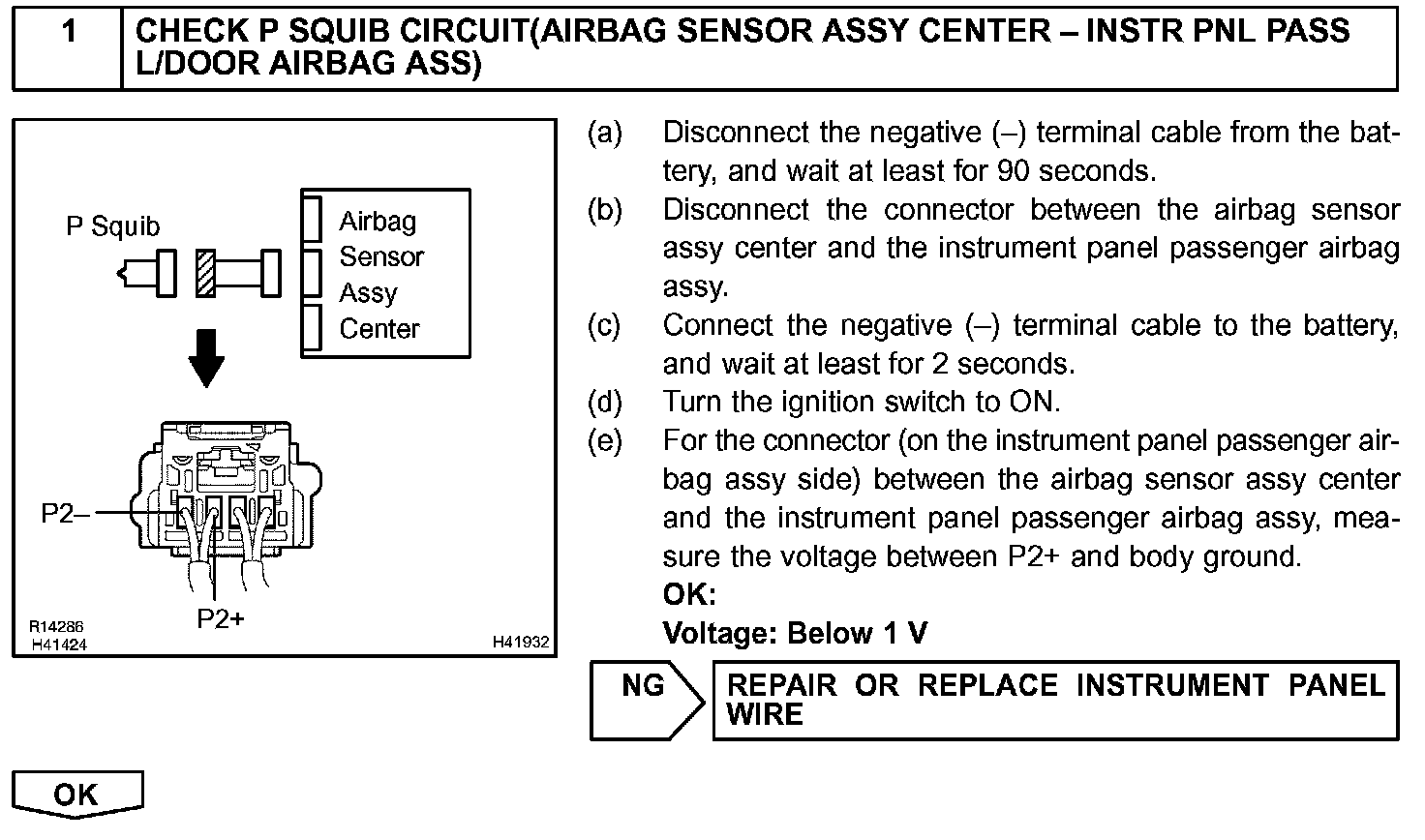

Step 1:

Step 2:

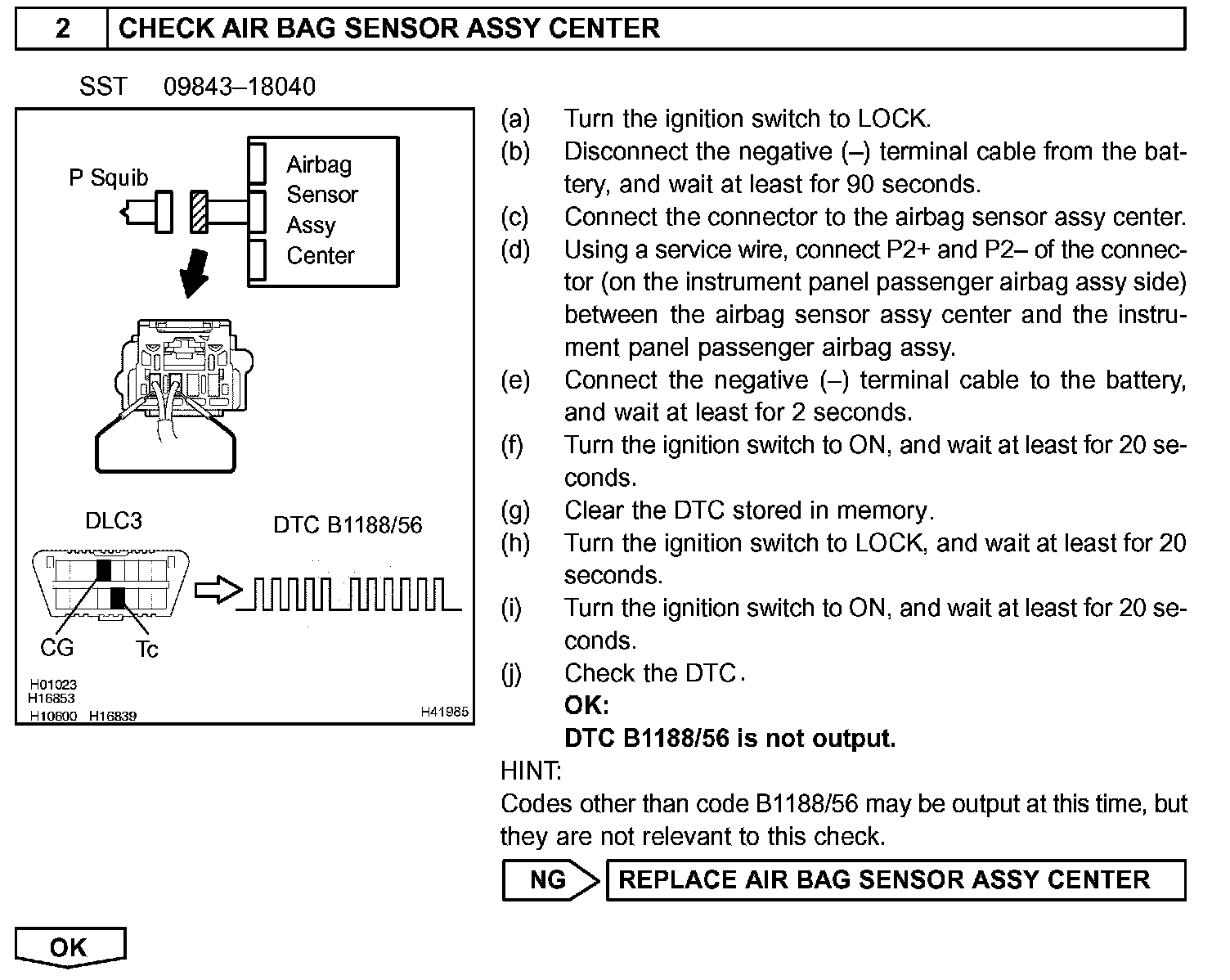

Step 3 - 4:

INSPECTION PROCEDURE
