ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch to OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the respective "DTC No." in the DTC chart.

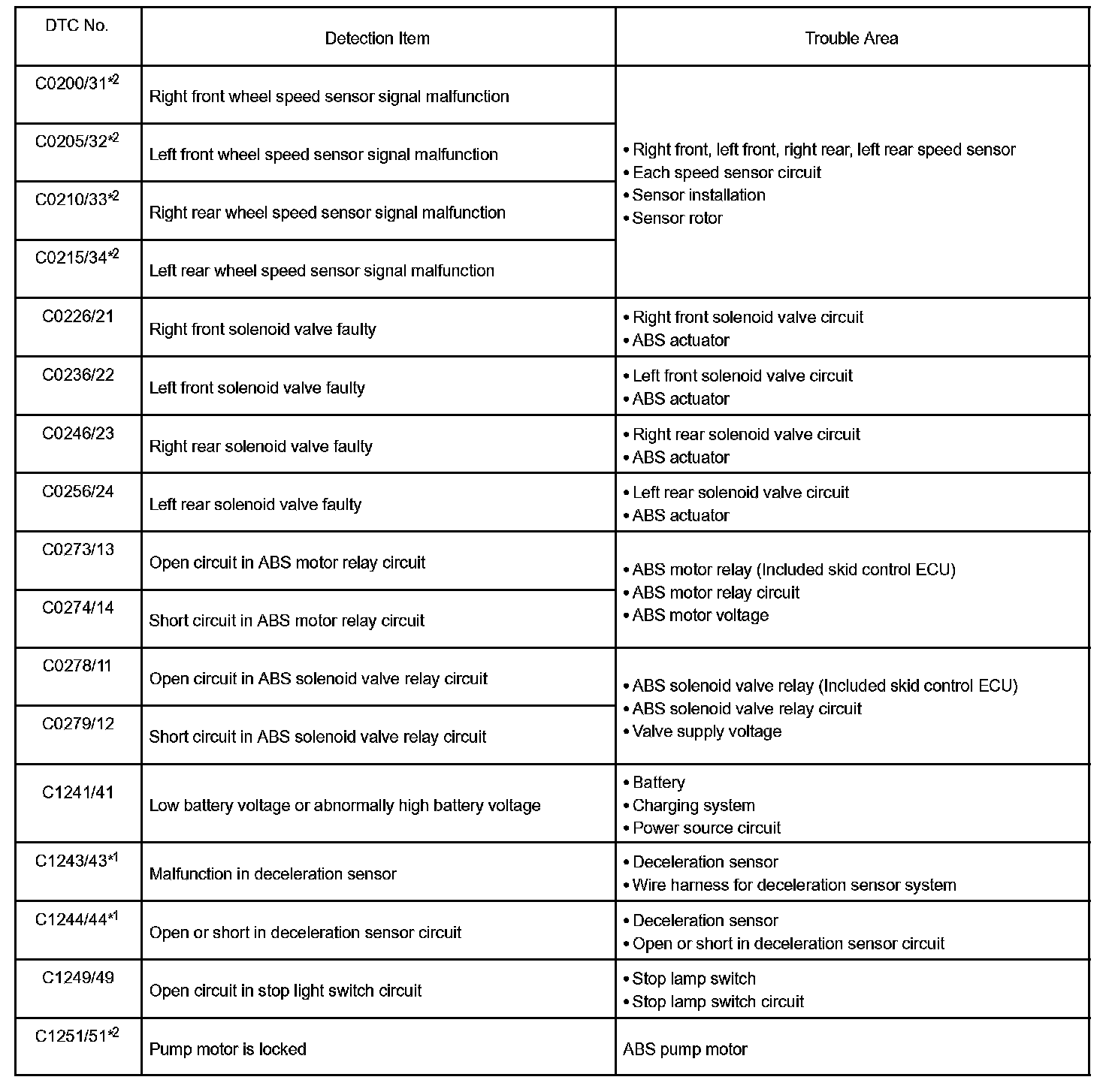

C0200/31 - C1251/51:

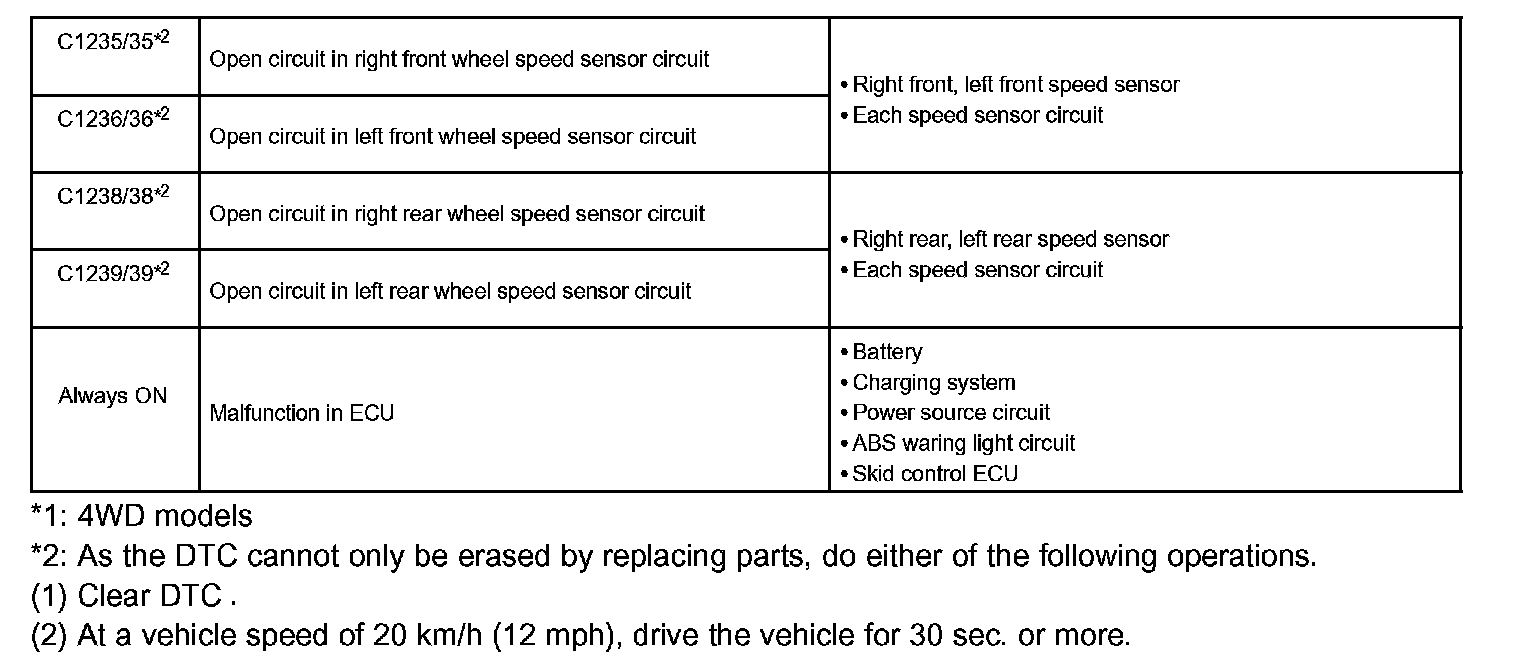

C1235/35 - Always ON:

DTC chart of ABS system

C1271/71 - C1279/79:

DTC of sensor check function
