Headlamp: Service and Repair

LH Headlamp Assy Components:

REPLACEMENT

1. REMOVE FRONT BUMPER COVER
2. REMOVE LH HEADLAMP ASSY




a. Remove the 3 bolts.
b. Pull out the headlight assy LH forward, then disconnect the bracket of body side.

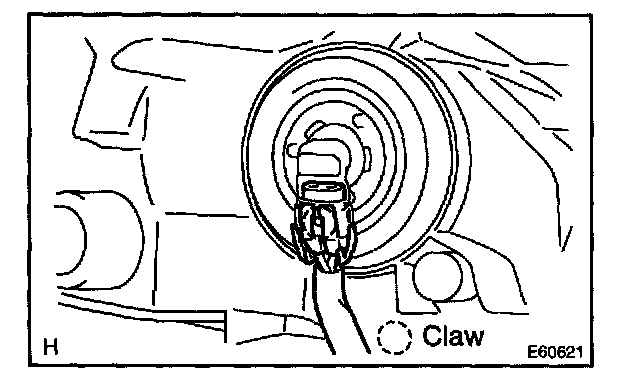

c. Release the 2 claws and disconnect the connectors as shown in the illustration, and remove the headlight assy LH.

3. PUT VEHICLE THESE CONDITIONS
4. ADJUST FOG LIGHT AIM Fog/Driving Lamp
5. ADJUST HEADLIGHT AIM ONLY Adjustments
