Side Air Bag

FRONT SEAT AIRBAG ASSY(VEHICLE NOT INVOLVED IN COLLISION)
a. Do a diagnostic system check.

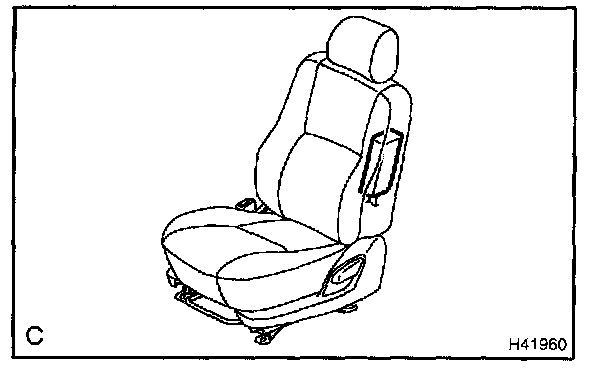

b. Do a visual check which includes the following item with the front seat airbag assy installed in the vehicle.
- Check cuts and cracks of the front seat airbag assy.
- Check cuts and cracks in wire harness, and for chipping in connectors.




FRONT SEAT AIRBAG ASSY(VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
a. Do a diagnostic system check.

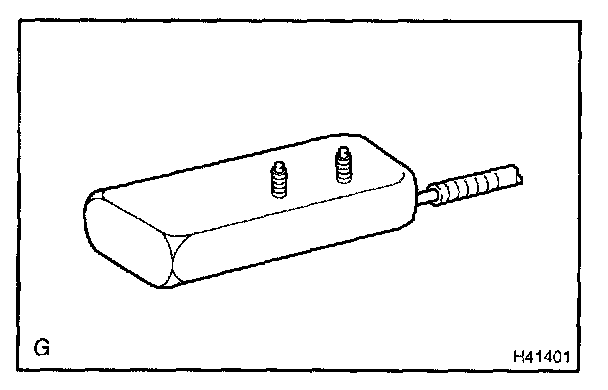

b. Do a visual check which includes the following items with the front seat airbag assy removed from the vehicle.
- Check cuts, minute cracks or marked discoloration on the front seat airbag assy.
- Check cuts and cracks in wire harness, and for chipping in connectors.
