Canada - Lighting - Fog Light Installation Procedure

Bulletin
2024

Issue Date
June 23, 2004

Market
Canada

Title:
FOG LIGHT INSTALLATION PROCEDURE

Model
'03 - '04 Matrix

New style fog lights have been developed for the Matrix. The front bumper has been modified to accommodate this change. In order to install the new style fog lights into the old bumper design, the following procedures must be followed.

APPLICABLE VEHICLES:
- 2003 - 2004 model year Matrix vehicles.

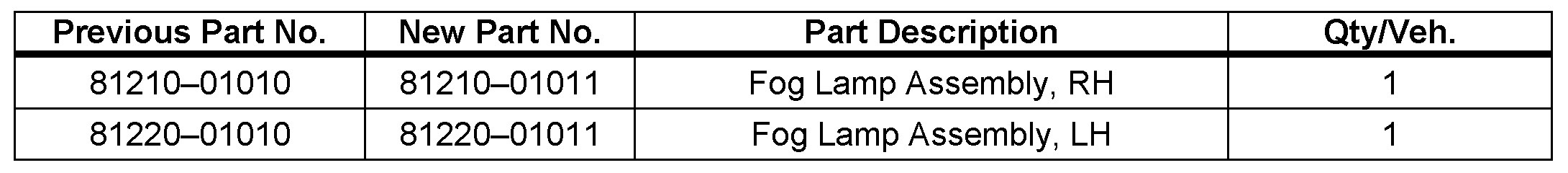

PARTS INFORMATION:







WARRANTY INFORMATION:


REPAIR PROCEDURE:

Install Front Fog Lights







1. Check that the fog light installation parts on the front bumper are the new shape.

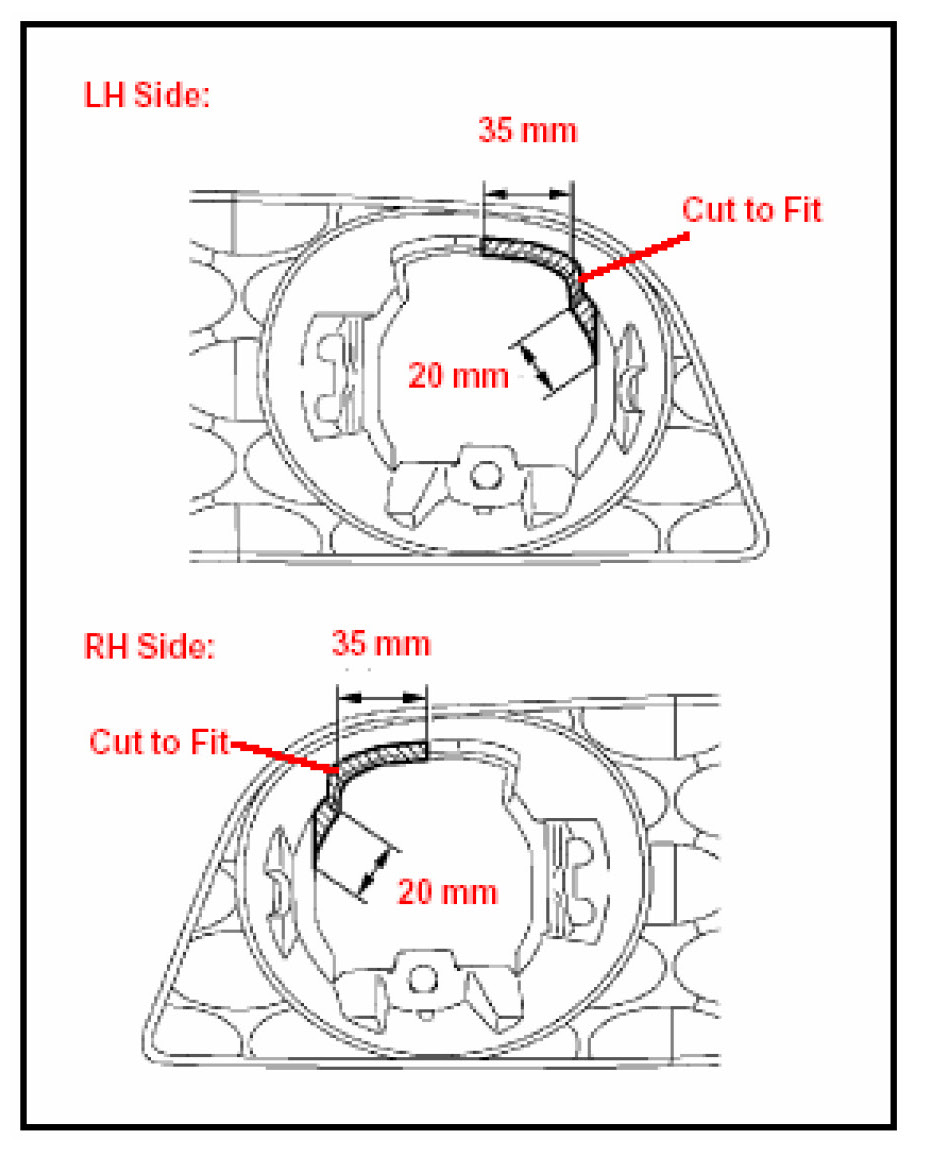

2. If the bumper is the previous design, cut off the part indicated in the illustration.
3. Install the fog light.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
