C0274

DTC C0274 B+ SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the motor relay ON and operates the ABS pump motor.

Wiring Diagram:

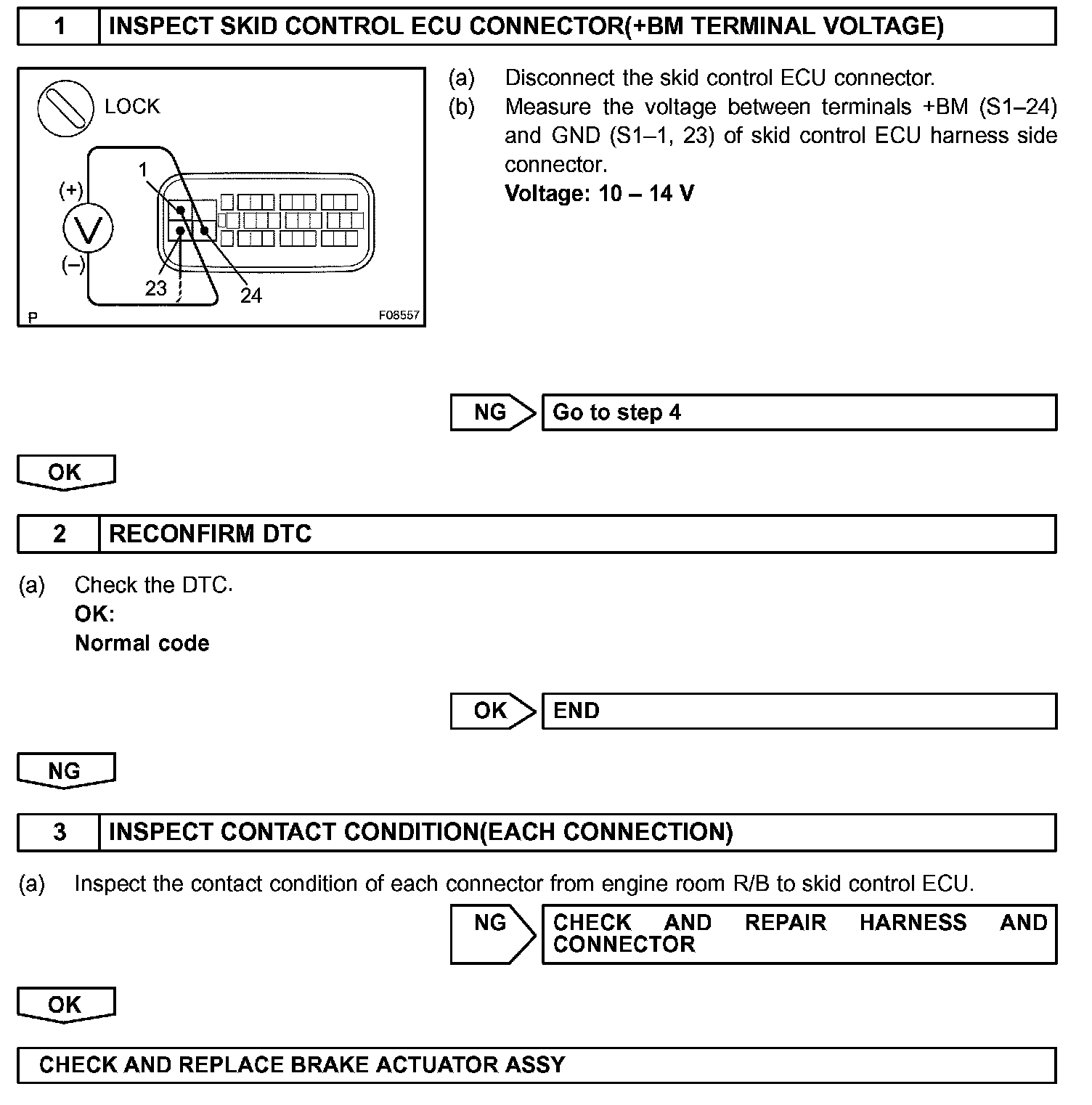

Step 1 - 3:

Step 4 - 5:

INSPECTION PROCEDURE
