A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System

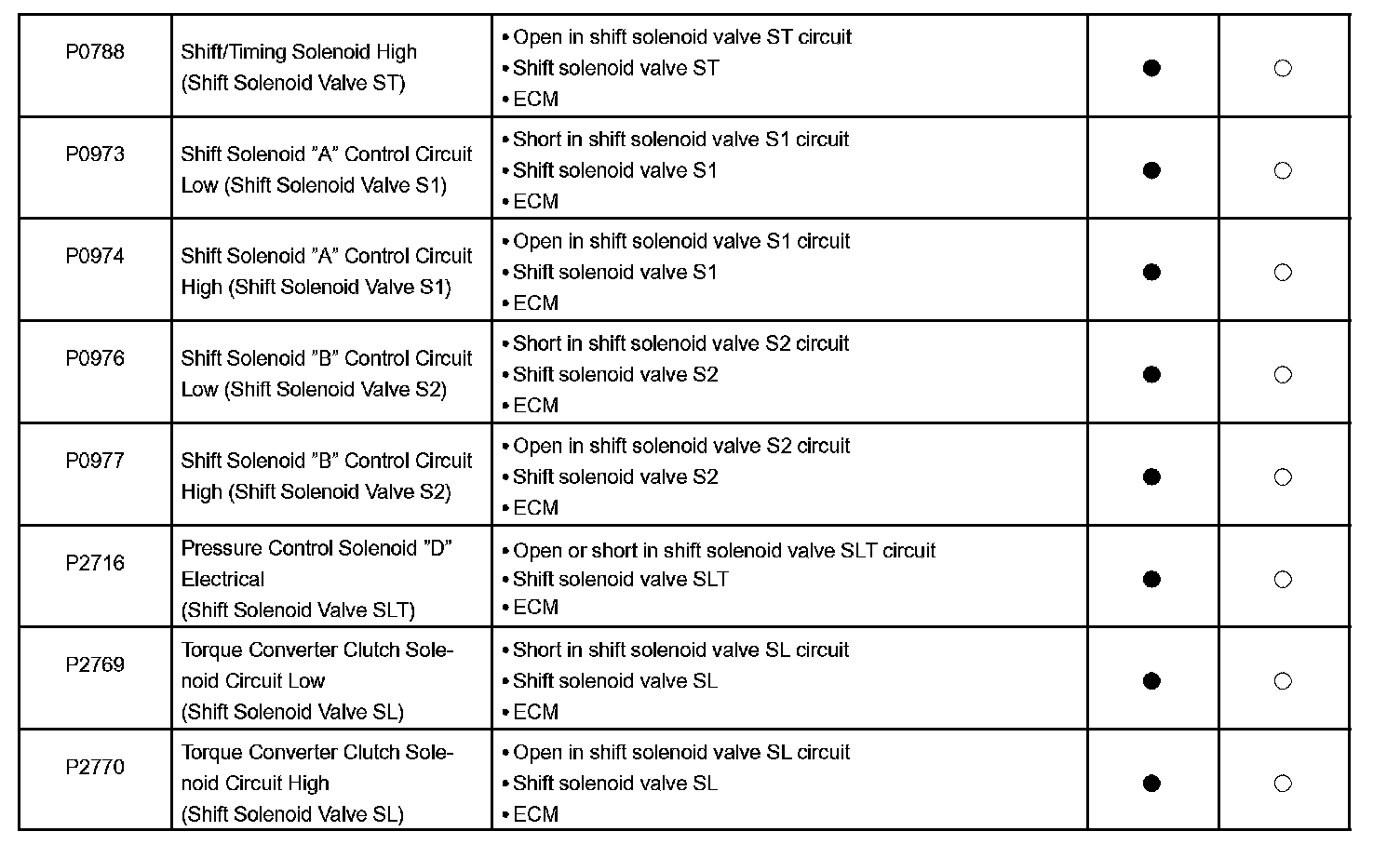

DIAGNOSTIC TROUBLE CODE CHART
P0500 - P0787:
P0788 - P2770:
If a DTC is displayed during the DTC check, check the circuit listed in the table.
