Home >> Toyota >> 2004 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case

Transfer Case

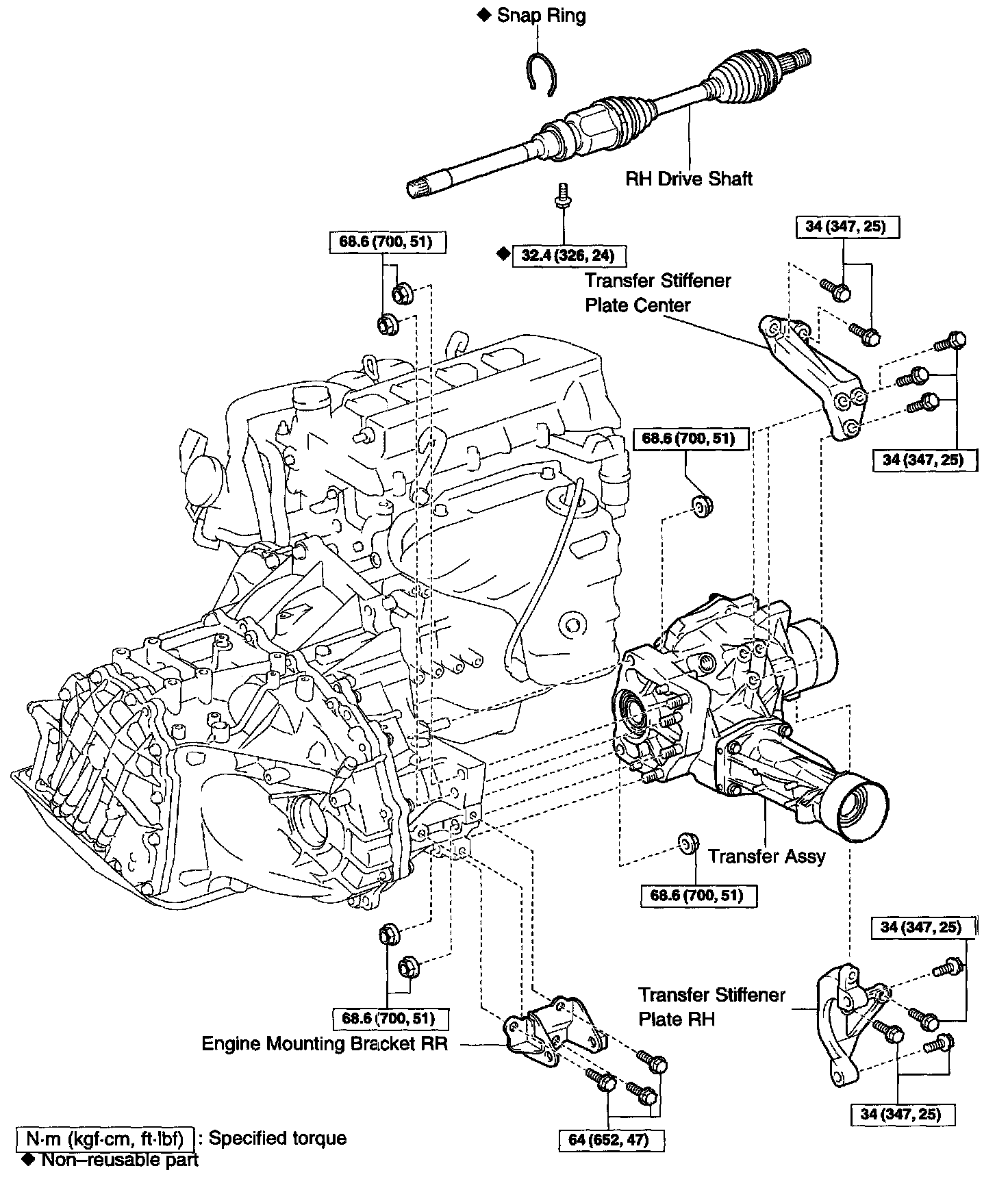

TRANSFER ASSY OVERHAUL W/ RELATED COMPONENTS
