Canada - A/T - U341F Solenoid Identification

Bulletin
TSB2293

Issue Date
2005-09-27

Market
Canada

Title
U341F TRANSMISSION SOLENOID IDENTIFICATION

Component
AUTOMATIC TRANSMISSION

Models
'03 - '05 Matrix (4WD)

INTRODUCTION:
This service bulletin provides information on the proper identification of the 5 solenoids used in the U341F transmission.

APPLICABLE VEHICLES:
- 2003 - 2005 model year Matrix vehicles equipped with 4 Wheel Drive.






TRANSMISSION SOLENOID IDENTIFICATION:






WARRANTY INFORMATION:

PARTS INFORMATION:

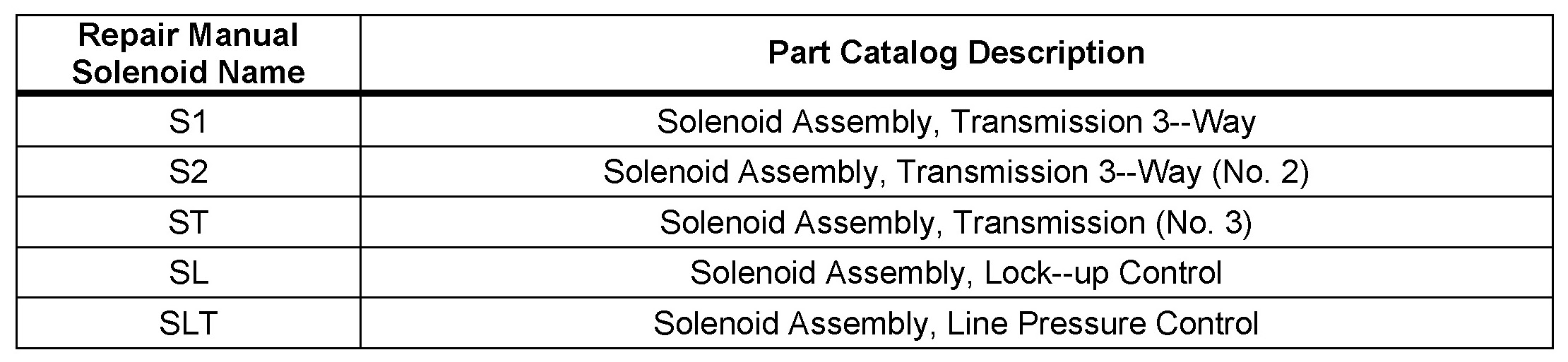

Provided a chart listing the repair manual name of each solenoid used in the U341F transmission as well as the part name description provided in the electronic parts catalog.

NOTE:
Part numbers have not been included due to possible future part number changes.
Refer to the parts catalog for proper current part number.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
