C1381

DTC C1381 MALFUNCTION IN POWER SUPPLY VOLTAGE YAW/DECELERATION SENSOR

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The yaw rate and deceleration sensor detect any gravity applied to the vehicle and transmits the signal to the skid control ECU via CAN communication.

Wiring Diagram:

Step 1 - 2:

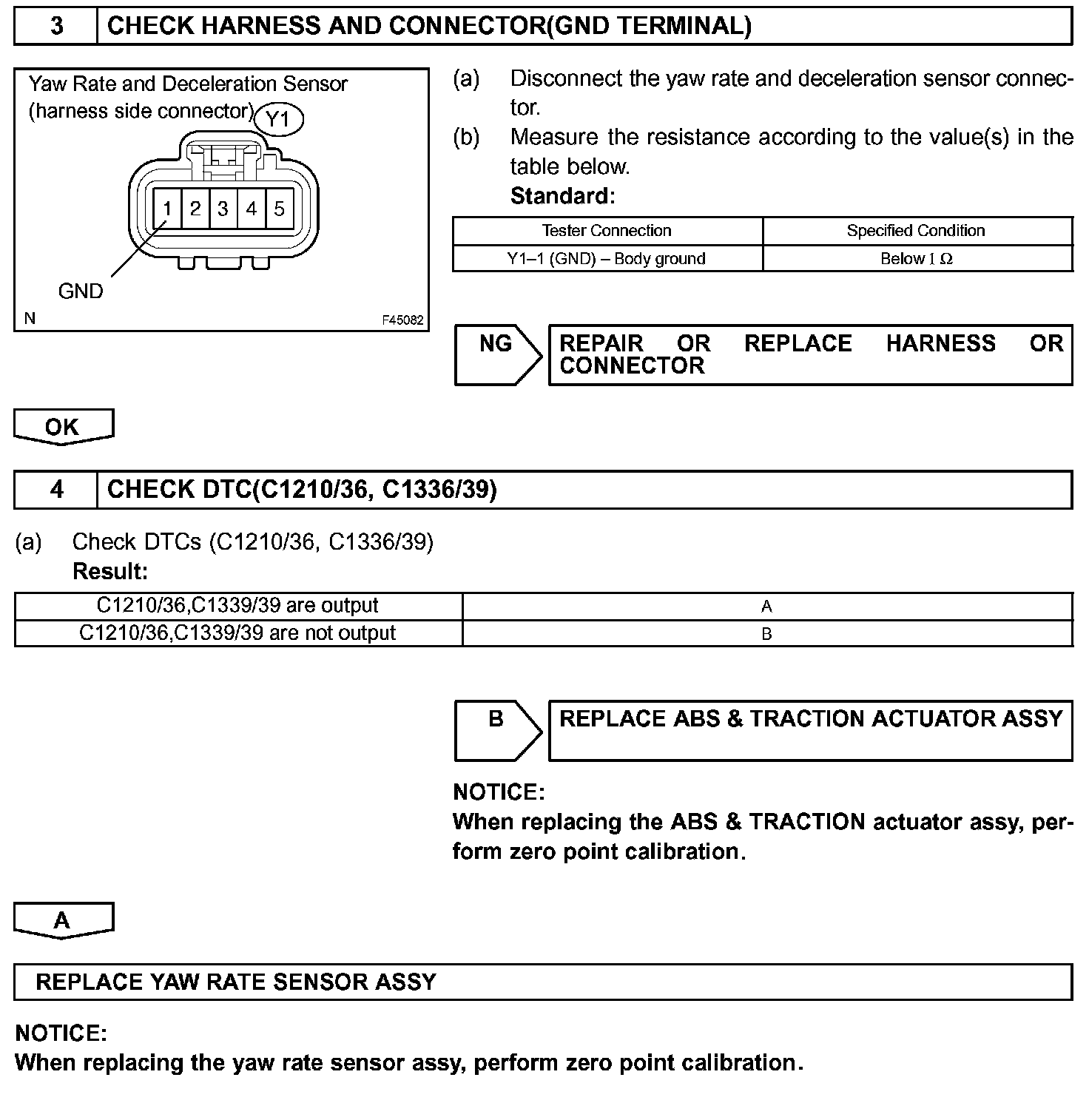

Step 3 - 4:

INSPECTION PROCEDURE

HINT: When U0121/94, U0123/62, U0124/95 or U0126/63 are output together with C1232/32 or C1334/34, inspect and repair the trouble areas indicated by U0121/94, U0123/62, U0124/95 or U0126/63 first.
