Navigation System: Service and Repair

Audio & Visual System - Part 1:

NAVIGATION RECEIVER ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
3. REMOVE CONSOLE PANEL SUB-ASSY UPPER
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER

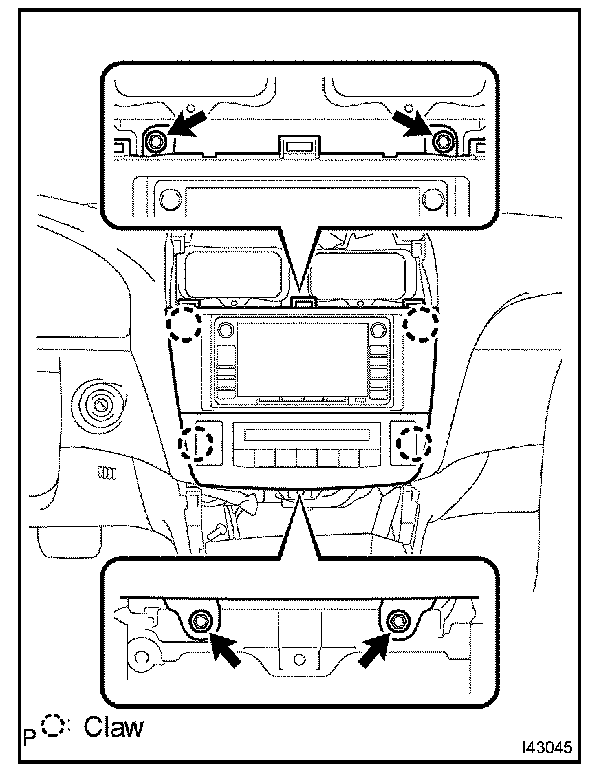

5. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY
a. Remove the 4 bolts.
b. Disconnect the connector.
c. Disengage the 4 claws and remove the center cluster integration panel assy.




6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
a. Remove the 4 bolts and instrument cluster finish panel assy center.




7. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 6 screws and radio receiver bracket No.1.




8. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 5 screws and radio receiver bracket No.1.

9. REMOVE NAVIGATION RECEIVER ASSY
