Clutch Switch: Service and Repair
CLUTCH SWITCH ASSYREPLACEMENT
HINT: Installation is in the reverse order of removal.
1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE COWL SIDE TRIM SUB ASSY LH
3. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
4. REMOVE CLUTCH SWITCH ASSY
a. Disconnect the connector.
b. Loosen the nut and remove the clutch switch assy.
5. INSTALL CLUTCH SWITCH ASSY
a. Insert the clutch switch assy by turning it until the bolt touches the cushion of the clutch pedal.

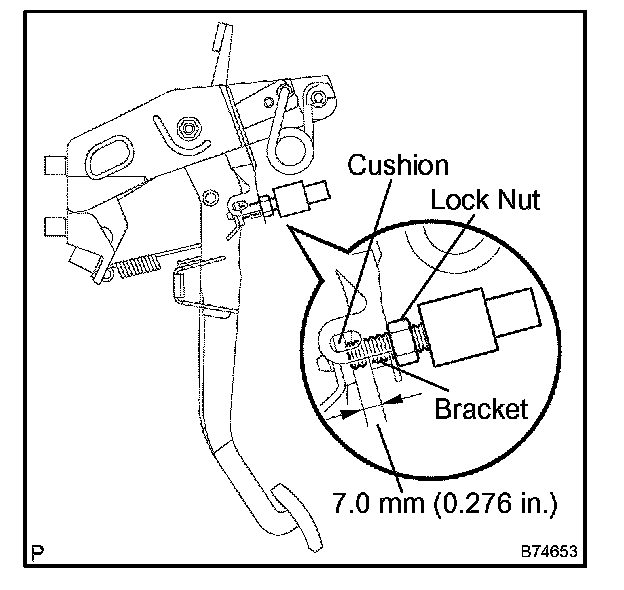

b. Adjust the clutch switch assy to the specified value between the cushion and the bracket as shown in the illustration.
c. Tighten the lock nut to fix the clutch switch assy.
