Multiple Junction Connector
Multiple Junction Connector
EA1 - EB1:

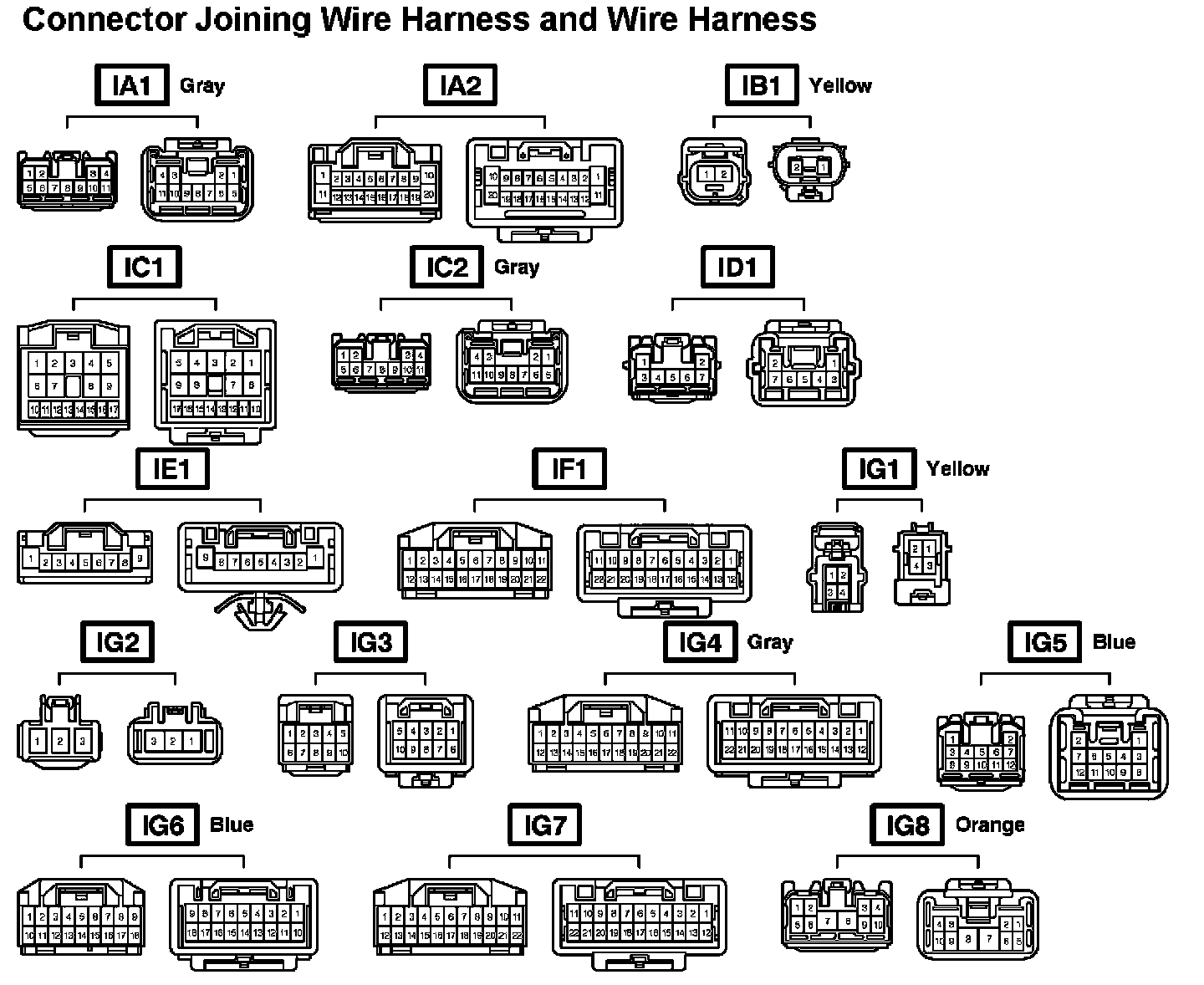

IA1 - IG8:

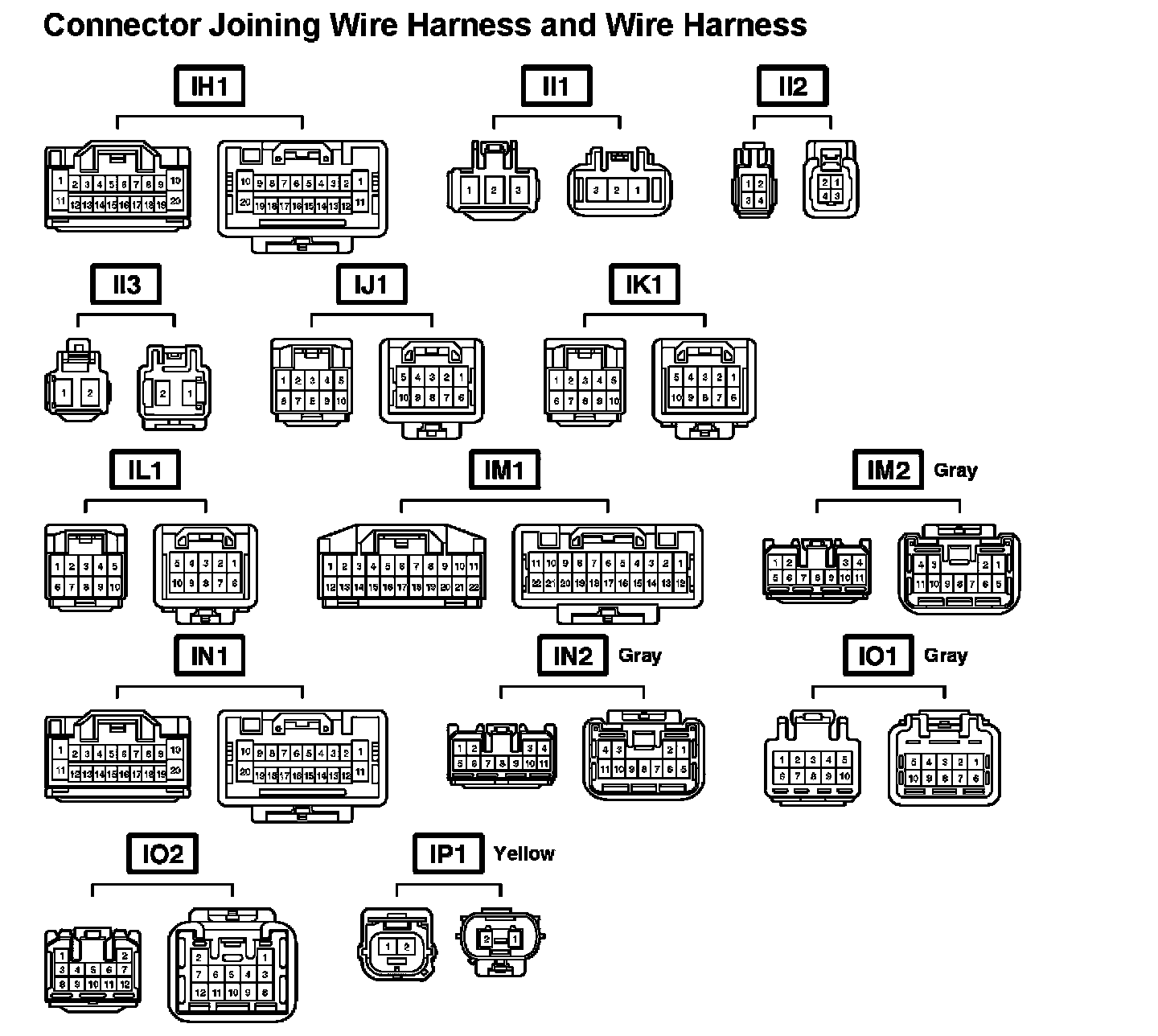

IH1 - IP1:
IA1 - IG8:

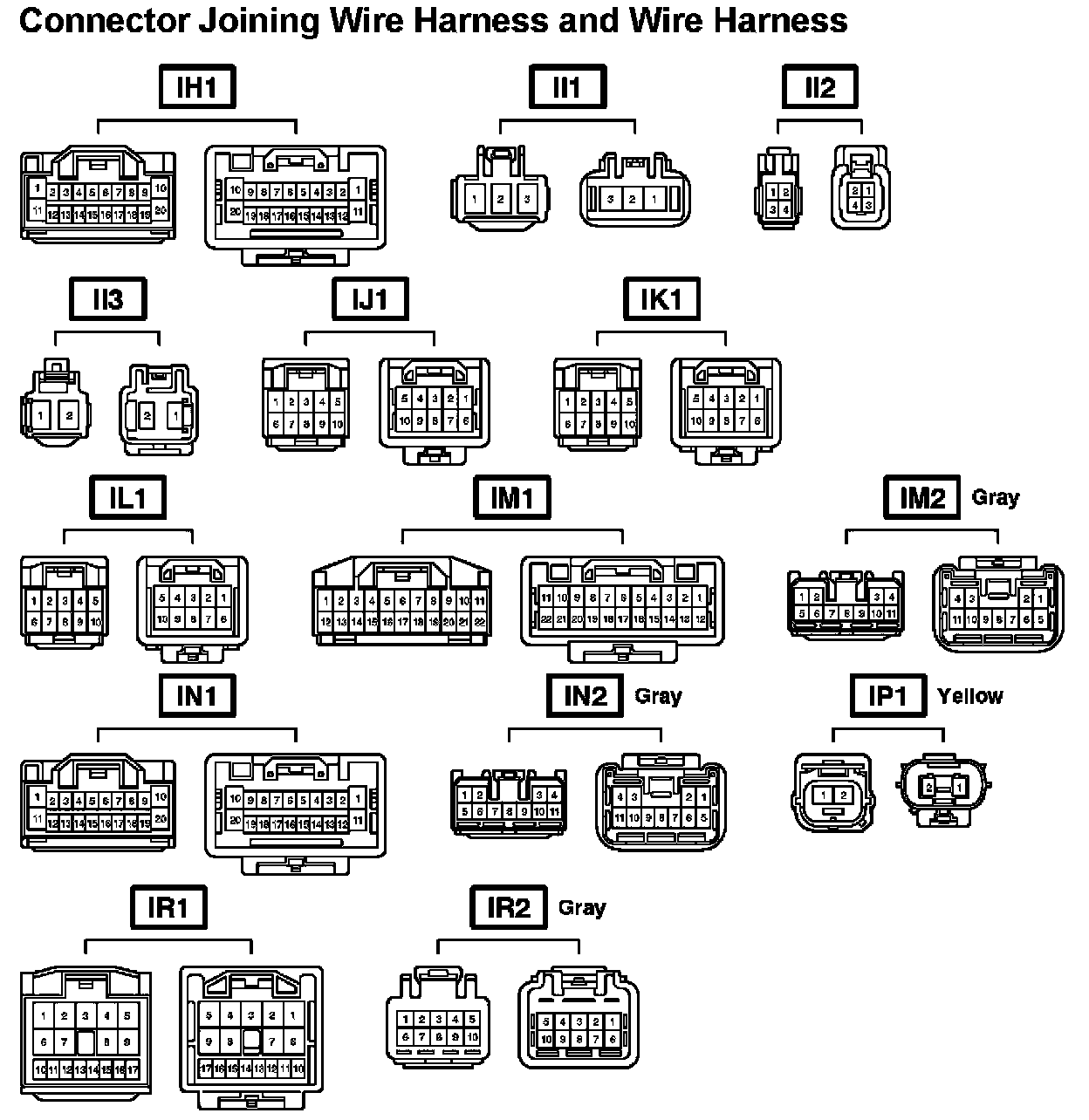

IH1 - IR2:
