Impact Sensor
Impact Sensor

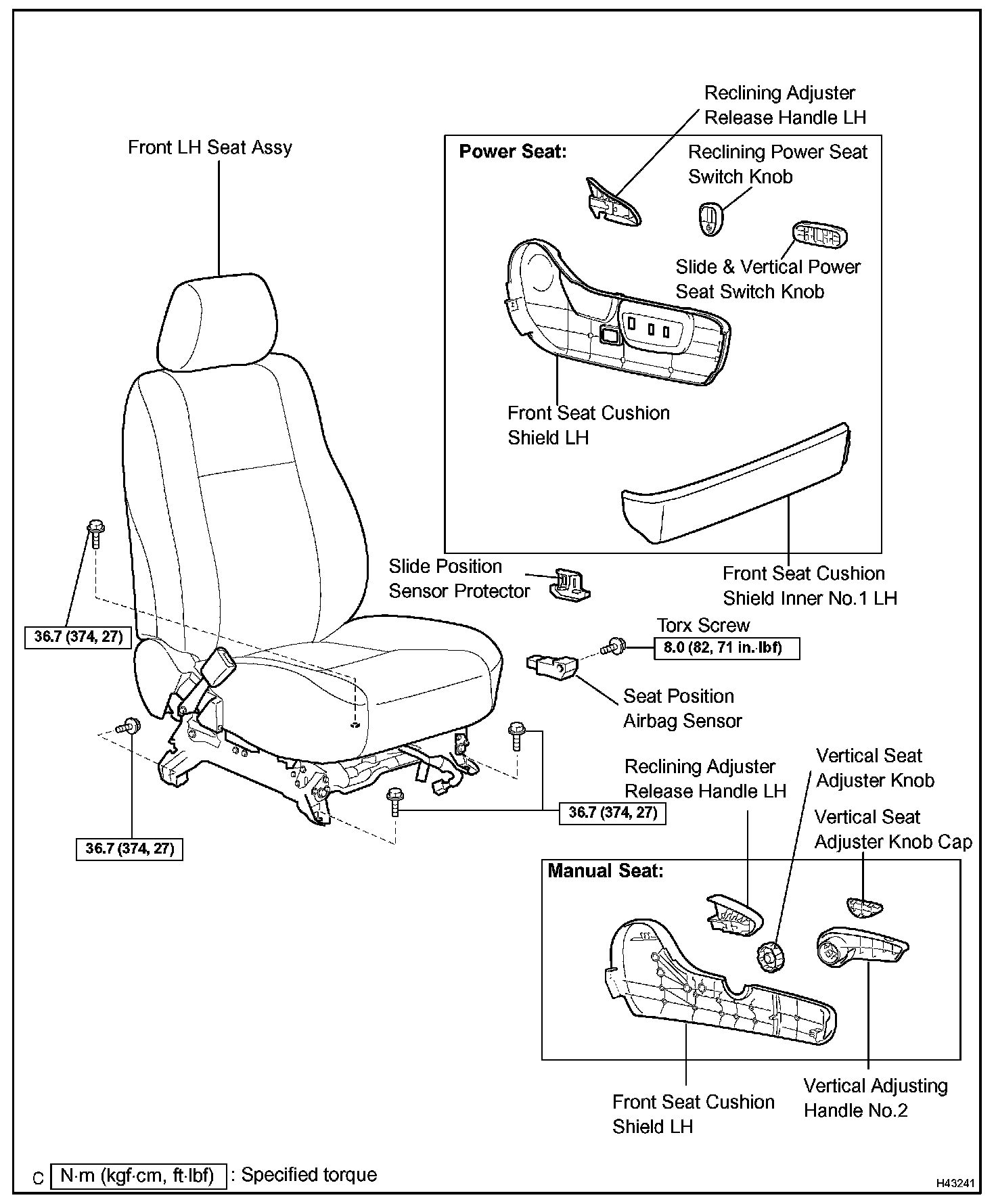

Seat Position Air Bag Sensor:
Airbag Sensor Front LH:
Side Air Bag Sensor Assy LH:
Air Bag Sensor Rear LH:
