Blower Motor: Service and Repair

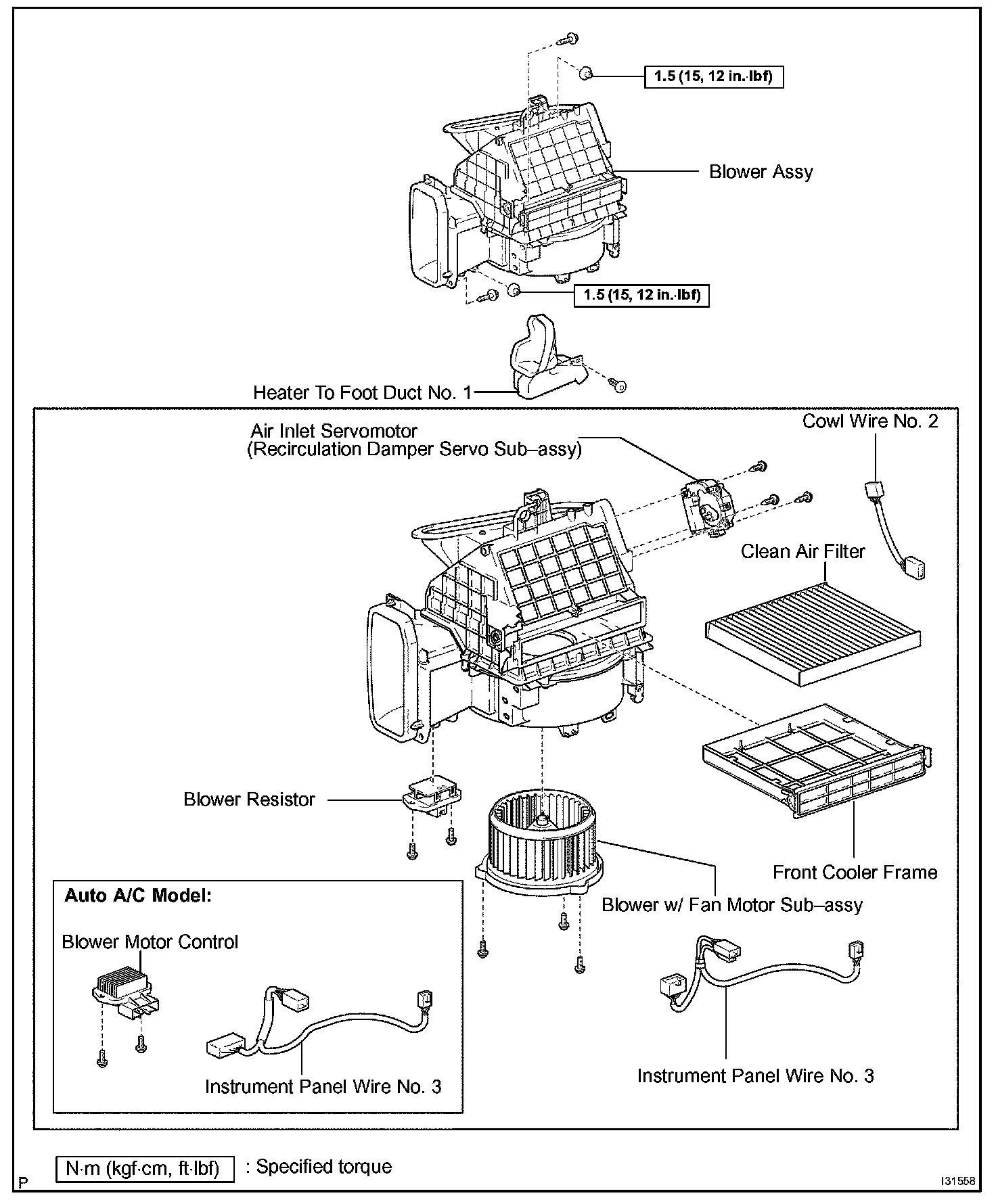

Blower Assy:

Instrument Panel/Meter - Part 1:

Instrument Panel/Meter - Part 2:

Instrument Panel/Meter - Part 3:

OVERHAUL

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
2. REMOVE HEATER TO FOOT DUCT NO.1
3. REMOVE STEREO COMPONENT AMPLIFIER ASSY (W/ STEREO COMPONENT AMPLIFIER)
4. REMOVE ECM (2AZ-FE ENGINE TYPE)
5. REMOVE ECM (3MZ-FE ENGINE TYPE)




6. REMOVE BLOWER ASSY
a. Disconnect the connectors.
b. Remove the screw, clamp and blower connector holder.




c. Disconnect the 5 wire harness clamps.




d. w/stereo component amplifier assy:
Disconnect the 2 wire harness clamps.

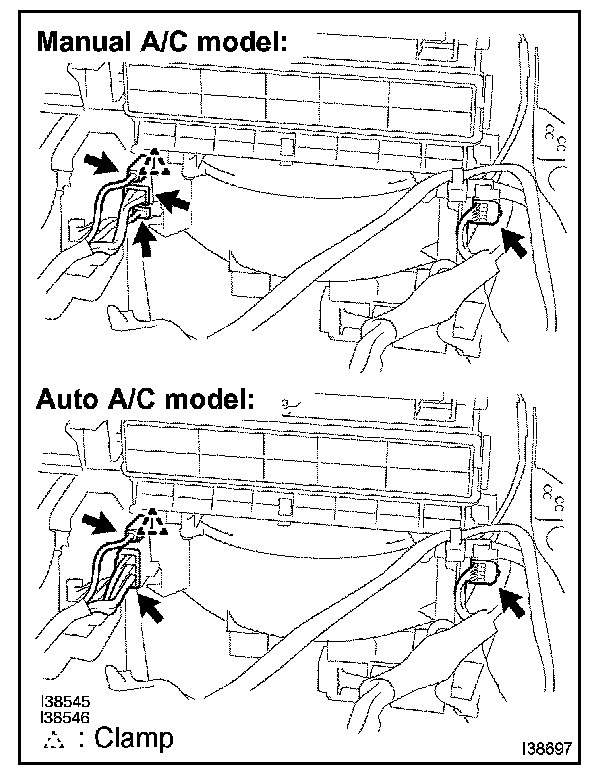

e. Manual A/C model:
Disconnect the 4 connectors and remove the clamp.
f. Auto A/C model:
Disconnect the 3 connectors and remove the clamp.




g. Remove the 2 screws, 2 nuts and blower assy.




7. REMOVE CLEAN AIR FILTER
a. Release the 2 fitting claws and remove the air filter sub assy.




b. Remove the clean air filter from the front cooler frame.

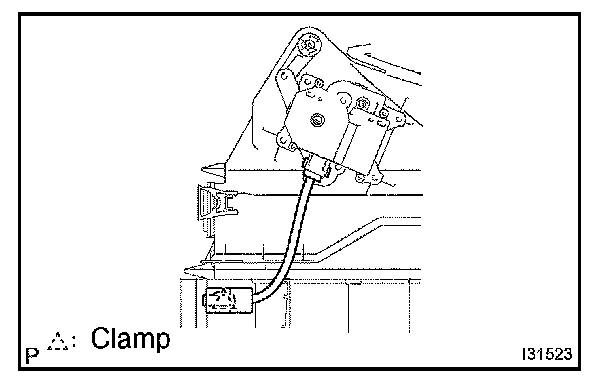

8. REMOVE COWL WIRE NO.2
a. Remove the clamp and cowl wire No. 2.

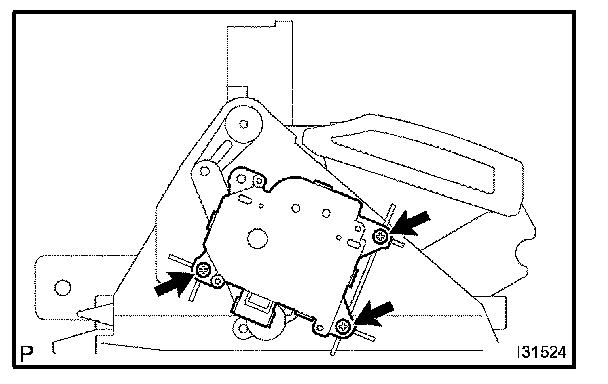

9. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY
a. Remove the 3 screws and air inlet servomotor (recirculation damper servo sub-assy).

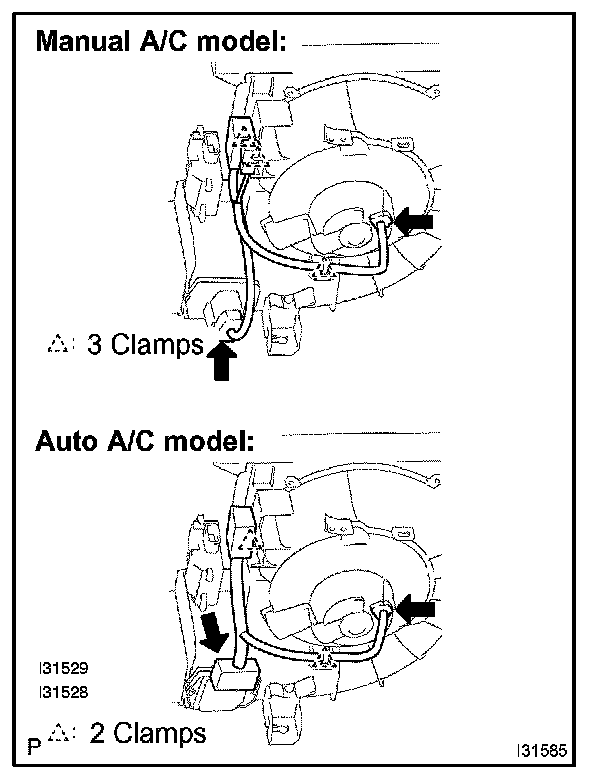

10. REMOVE INSTRUMENT PANEL WIRE NO.3
a. Manual A/C model:
Disconnect the 2 connectors and remove the 3 clamps and instrument panel wire No. 3.
b. Auto A/C model:
Disconnect the 2 connectors and remove the 2 clamps and instrument panel wire No. 3.

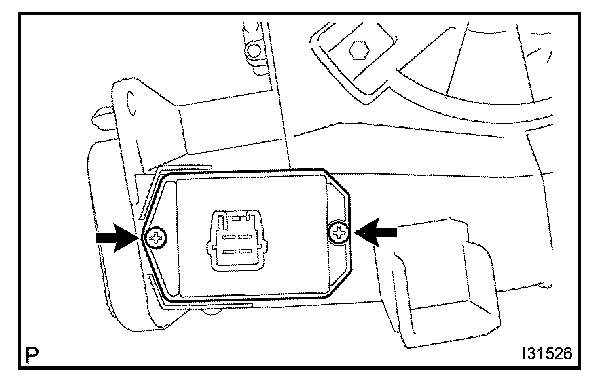

11. REMOVE BLOWER RESISTOR (MANUAL AIR CONDITIONING)
a. Remove the 2 screws and blower resistor.

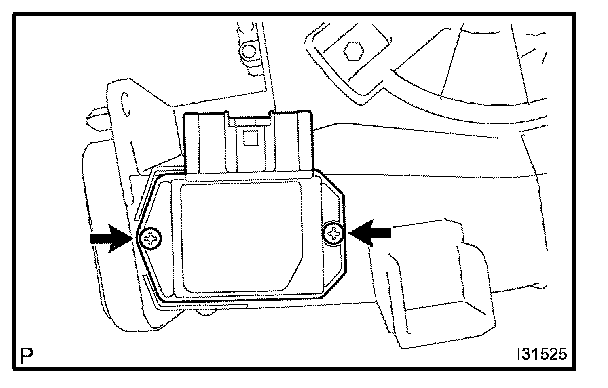

12. REMOVE BLOWER MOTOR CONTROL (AUTO AIR CONDITIONING)
a. Remove the 2 screws and blower motor control.




13. REMOVE BLOWER W/FAN MOTOR SUB-ASSY
a. Remove the 3 screws and blower w/ fan motor sub-assy.




14. INSTALL BLOWER ASSY
a. Install the blower assy with the 2 screws and 2 nuts.

Torque: 1.5 Nm (15 kgf.cm, 12 in.lbf) (NUT)




b. Manual A/C model:
Install the clamp and connect the 4 connectors.
c. Auto A/C model: Install the clamp and connect the 3 connectors.




d. w/stereo component amplifier assy:
Install the 2 wire harness clamps.




e. Install the 5 wire harness clamps.




f. Install the blower connector holder with the screw and clamp.
g. Connect the connectors.

15. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
