Cabin Air Filter / Purifier: Service and Repair

REPLACE AIR CONDITIONING FILTER
(a) Remove the glove compartment assembly.

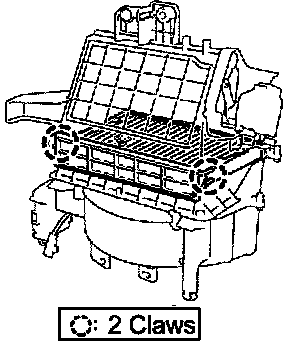

(b) Release the 2 fitting claws and remove the air filter sub assy.

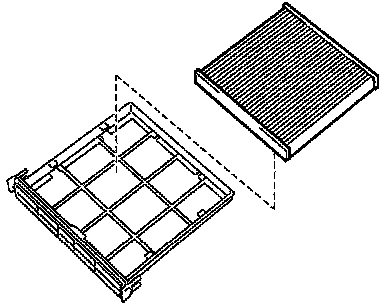

(c) Remove the filter from the filter case.
(d) Replace the filter with a new one.
(e) The installation procedures are the removal procedures in reverse order.
