Compressor HVAC: Service and Repair
Cooler Compressor Assy (3MZ-FE):
REPLACEMENT
1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
2. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
3. REMOVE GENERATOR ASSY
4. REMOVE GENERATOR BELT ADJUSTING BAR

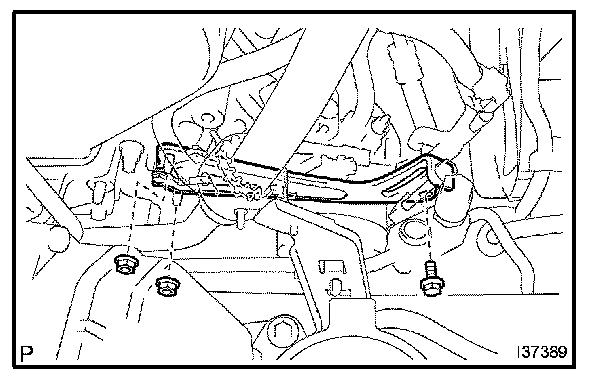

a. Remove the 2 nuts, bolt and generator belt adjusting bar.
5. DISCONNECT COOLER REFRIGERANT DISCHARGE HOSE NO.1
a. Remove the nut and disconnect the cooler refrigerant discharge hose No.1.
b. Remove the O-ring from the cooler refrigerant discharge hose No.1.
NOTE: Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.
6. DISCONNECT COOLER REFRIGERANT SUCTION HOSE NO.1

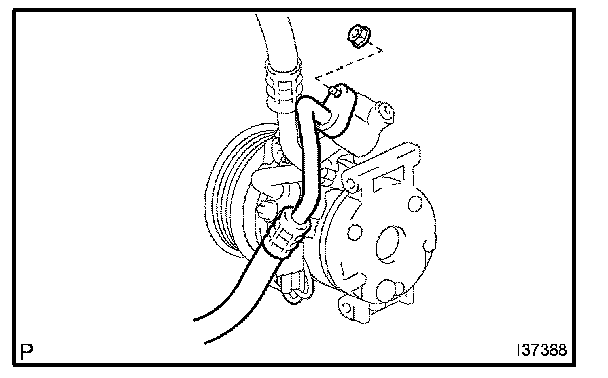

a. Remove the nut and disconnect the cooler refrigerant suction hose No.1.
b. Remove the O-ring from the cooler refrigerant suction hose No.1.
NOTE: Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.
7. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
a. Disconnect the connector and clamp.
b. Remove the bolt, nut and cooler compressor bracket.
c. Remove the 3 bolts and compressor and magnetic clutch.
8. REMOVE MAGNET CLUTCH ASSY
a. Remove the screw, earth wire and cooler compressor bracket.
b. Remove the 2 bolts and the bracket.
c. Place the compressor and magnetic clutch in a vise.
NOTE: Do not get the bracket and harness caught in the vise.
d. Using SST, hold the magnet clutch hub.
SST 95047-10400
e. Remove the bolt, magnet clutch hub and magnet clutch washer.
HINT: There is no set number of magnet clutch washers since they are used for adjusting.

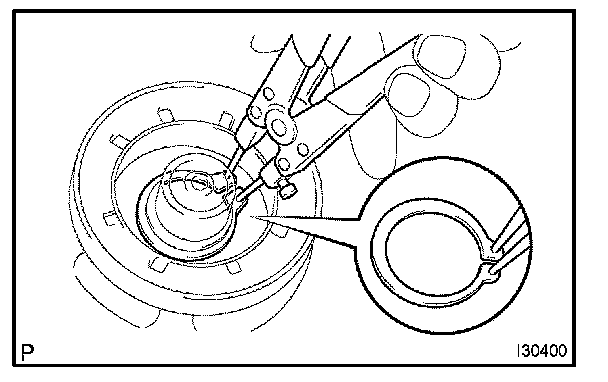

f. Using a snap ring expander, remove the snap ring and magnet clutch rotor.
NOTE: Do not damage the seal cover of the bearing when removing the snap ring.
g. Disconnect the connector.
h. Using a snap ring expander, remove the snap ring and magnet clutch starter.
9. INSTALL MAGNET CLUTCH ASSY

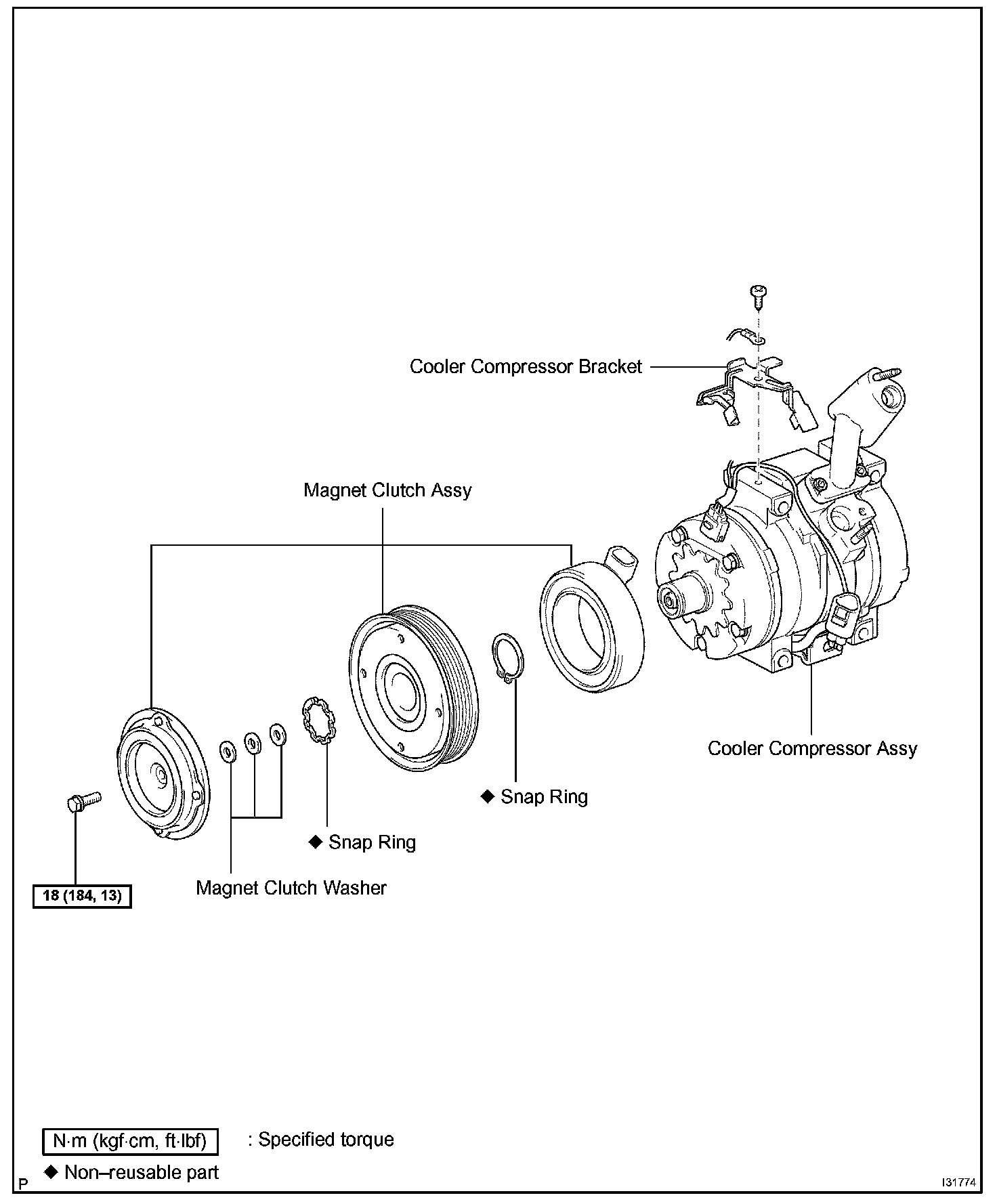

a. Matching the parts shown in the illustration and install the magnet clutch starter.
b. Using a snap ring expander, install a new snap ring with the chamfered side facing up.
NOTE: Do not damage the seal cover of the bearing when installing the snap ring.
c. Connect the connector.
d. Using a snap ring expander, install the magnet clutch rotor and a new snap ring with the chamfered side facing up.
NOTE:
- Do not expand the snap ring by more than 30.5 mm when installing it.
- Do not damage the seal cover of the bearing when installing the snap ring.
e. Install the magnet clutch washer and magnet clutch hub.
NOTE: Do not change the combination of the magnet clutch washers used before disassembly.
f. Using SST, hold the magnet clutch hub and install the bolt.
SST 95047-10400
Torque: 18 Nm (184 kgf.cm, 13 ft.lbf)
NOTE: Make sure that there is no foreign matter or oil on the compressor shaft, bolt, and clutch hub.
10. INSPECT MAGNETIC CLUTCH CLEARANCE

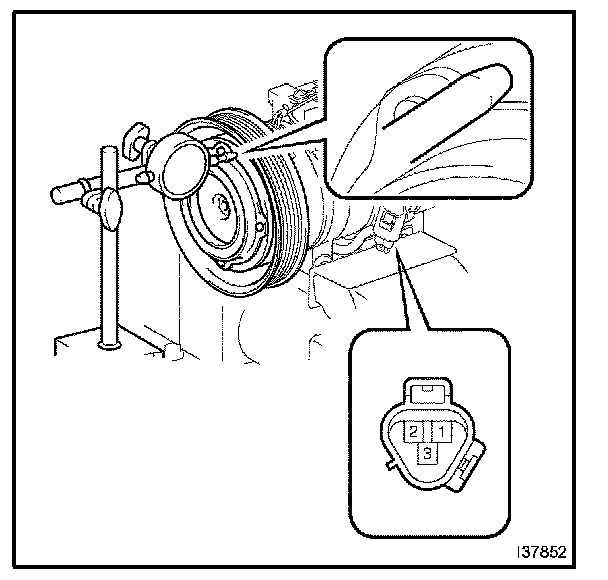

a. Set the dial indicator to the magnet clutch hub.
b. Connect the battery positive lead to terminal 3 of the magnet clutch connector and the negative lead to the earth wire. Turn the magnet clutch on and off and measure the clearance.
Standard clearance:
0.35 to 0.60 mm (0.014 to 0.023 in.)
If the measured value is not within the standard range, remove the magnet clutch hub and adjust it with magnet clutch washers.
NOTE: Adjustment shall be performed with 3 or less magnet clutch washers.
c. Remove the compressor and magnetic clutch from the vise.
d. Install the bracket with the 2 bolts.
11. ADJUST COMPRESSOR OIL
a. When replacing the compressor and magnetic clutch with a new one, after gradually removing the refrigerant gas from the service valve, drain the following amount of oil from the new compressor and magnetic clutch before installation.
Standard:
(Oil capacity inside new compressor and magnetic clutch: 120 + 15 cc (4.1 + 0.51 fl.oz.) ) - (Remaining oil amount in the removed compressor and magnetic clutch) = (Oil amount to be removed when replacing from the new compressor)
NOTE:
- When checking the compressor oil level, observe the precautions on the cooler removal/installation.
- Because compressor oil remains in the pipes of the vehicle, if a new compressor and magnetic clutch is installed without removing some oil inside, the oil amount becomes too much, preventing heat exchange in the refrigerant cycle and causing refrigerant failure.
- If the remaining oil in the removed compressor and magnetic clutch is too small in volume, check for oil leakage.
- Be sure to use ND-OIL 8 for compressor oil.
12. TEMPORARILY TIGHTEN COMPRESSOR AND MAGNETIC CLUTCH
a. Temporarily tighten the compressor and magnetic clutch with the bolt.
13. FULLY TIGHTEN COMPRESSOR AND MAGNETIC CLUTCH

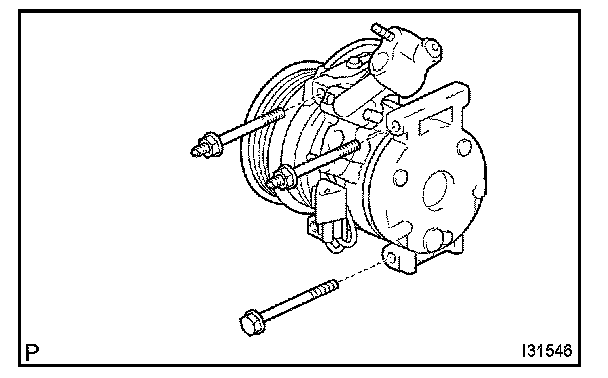

a. Tighten the compressor and magnetic clutch with the 3 bolts.
Torque: 25 Nm (250 kgf.cm, 18 ft.lbf)
NOTE: Tighten the bolts in the numerical order shown in the illustration to install the compressor and magnetic clutch.

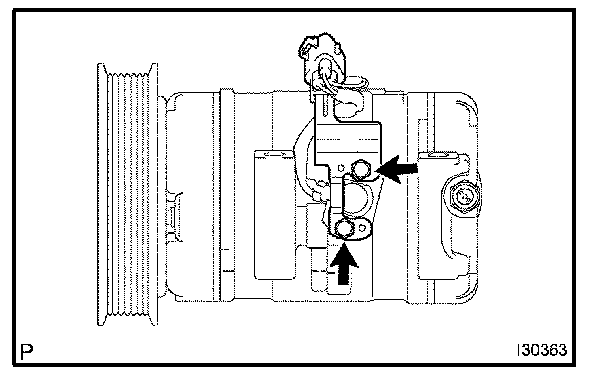

b. Install the cooler compressor bracket with the bolt and nut.
Torque: 25 Nm (250 kgf.cm, 18 ft.lbf) (Bolt (1))
NOTE: Tighten the bolts in the numerical order shown in the illustration to install the compressor and magnetic clutch.
c. Connect the connector.
14. INSTALL COOLER REFRIGERANT SUCTION HOSE NO.1
a. Remove the attached vinyl tape from the hose.
b. Sufficiently apply compressor oil to a new O-ring and fitting surface of the compressor and magnetic clutch.
Compressor oil: ND-OIL 8 or equivalent
c. Install the O-ring to the cooler refrigerant suction hose No.1.
d. Install the cooler refrigerant suction hose No.1 to the compressor and magnetic clutch with the nut.
Torque: 9.8 Nm (100 kgf.cm, 87 in.lbf)
15. INSTALL COOLER REFRIGERANT DISCHARGE HOSE NO.1
a. Remove the attached vinyl tape from the hose.
b. Sufficiently apply compressor oil to a new O-ring and fitting surface of the compressor and magnetic clutch.
Compressor oil: ND-OIL 8 or equivalent
c. Install the O-ring to the cooler refrigerant discharge hose No.1.
d. Install the cooler refrigerant discharge hose No.1 to the compressor and magnetic clutch with the nut.
Torque: 9.8 Nm (100 kgf.cm, 87 in.lbf)
16. INSTALL GENERATOR ASSY
17. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
18. CHARGE REFRIGERANT
SST 07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
Specified amount: 550 ± 50 g (19.39 ± 1.76 oz.)
19. WARM UP ENGINE
20. INSPECT LEAKAGE OF REFRIGERANT
