System Information

System Diagram:

SYSTEM DIAGRAM

1. GENERAL
a. The air conditioning system in the '04 CAMRY SOLARA has the following features:
- A compact, lightweight, and low-noise swash plate type compressor has been adopted.
- The air conditioning ECU is equipped with a self-diagnosis function. If there is a malfunction in the system, it stores the DTCs (Diagnostic Trouble Codes) in its memory and the air conditioning switch indicator blinks.
- The compressor and water temperature sensor are connected to the ECM.
- The A/C amplifier receives the vehicle speed signal from the combination meter.

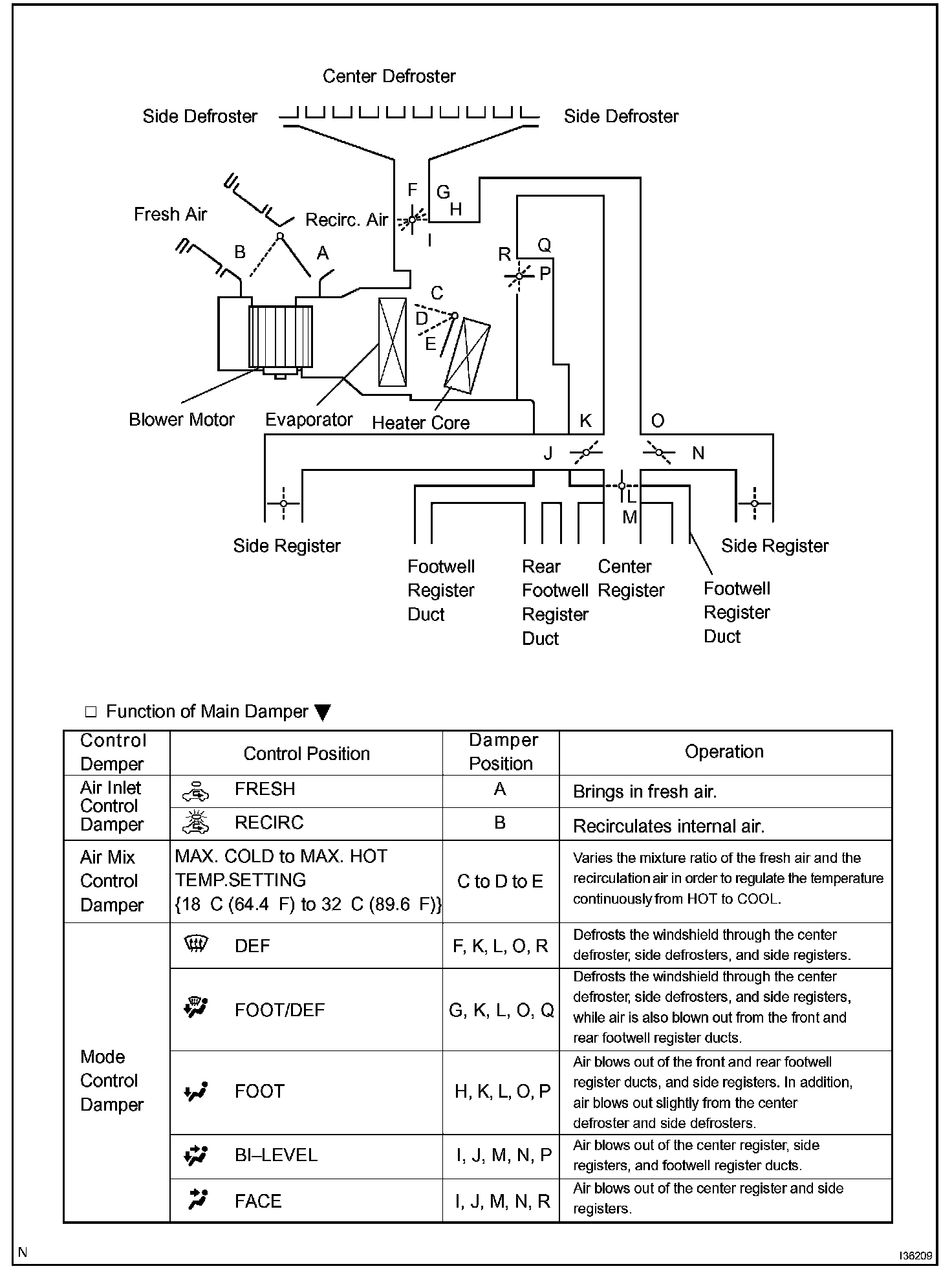

Model Position And Damper Operation:

2. MODEL POSITION AND DAMPER OPERATION

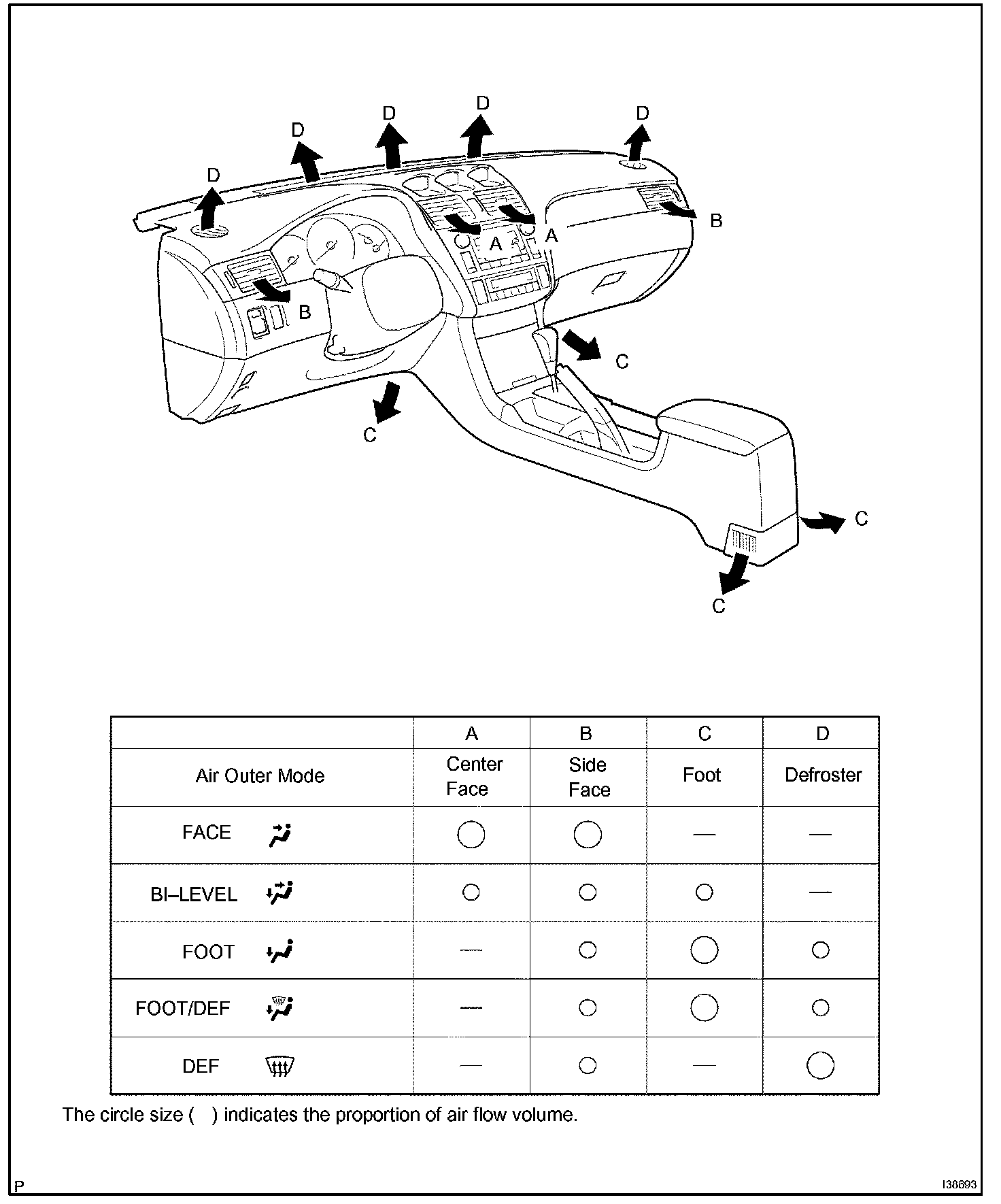

Air Outlets And Air Volume Rations:

3. AIR OUTLETS AND AIR VOLUME RATIONS
