CLOCK ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
6. REMOVE COMBINATION METER ASSY




7. REMOVE CLOCK ASSY

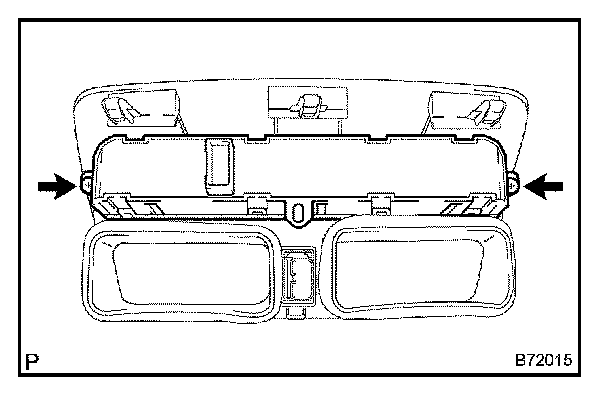

a. Remove the 2 screws and the clock assy.
