System Description

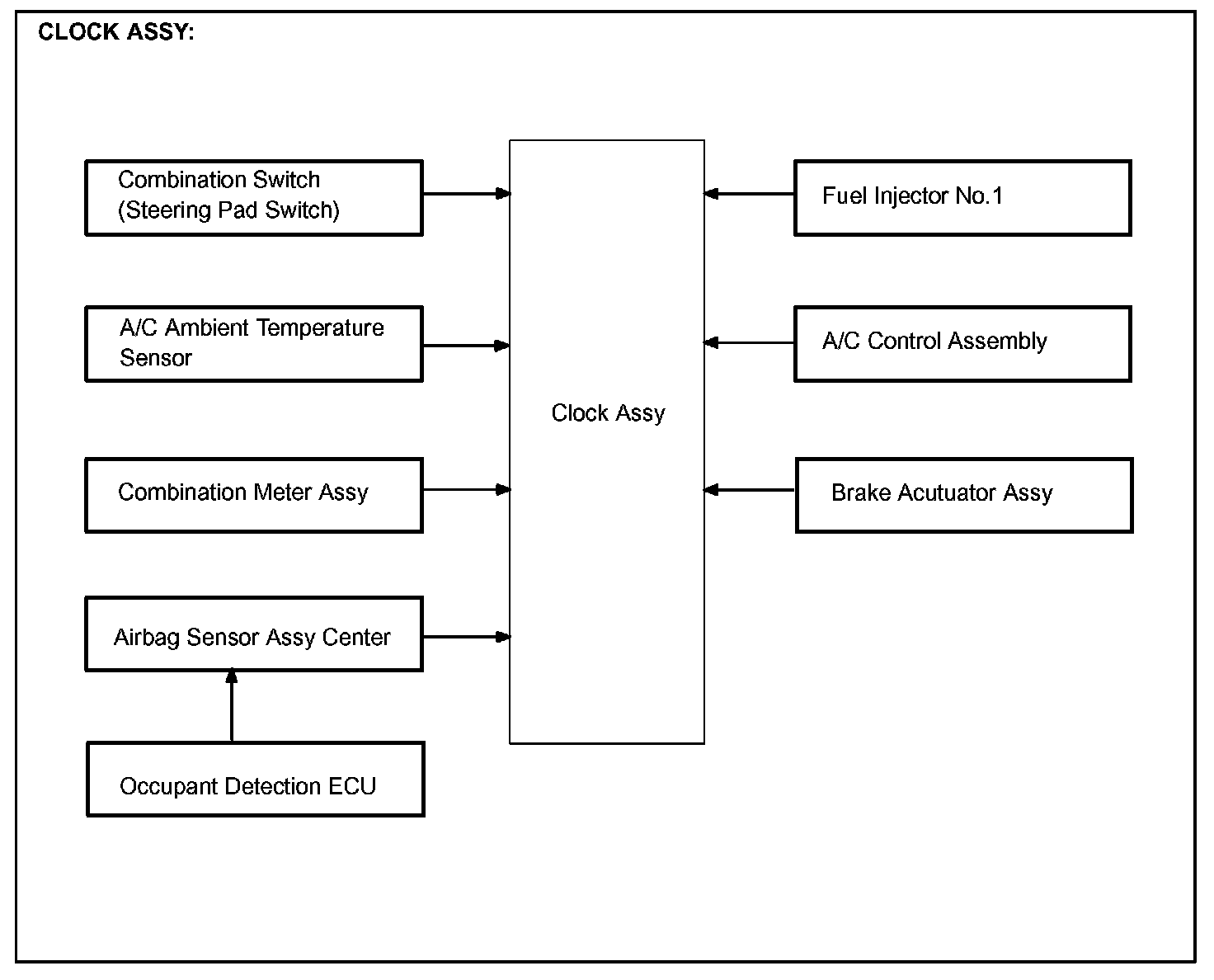

System Diagram Part 1:

System Diagram Part 2:

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

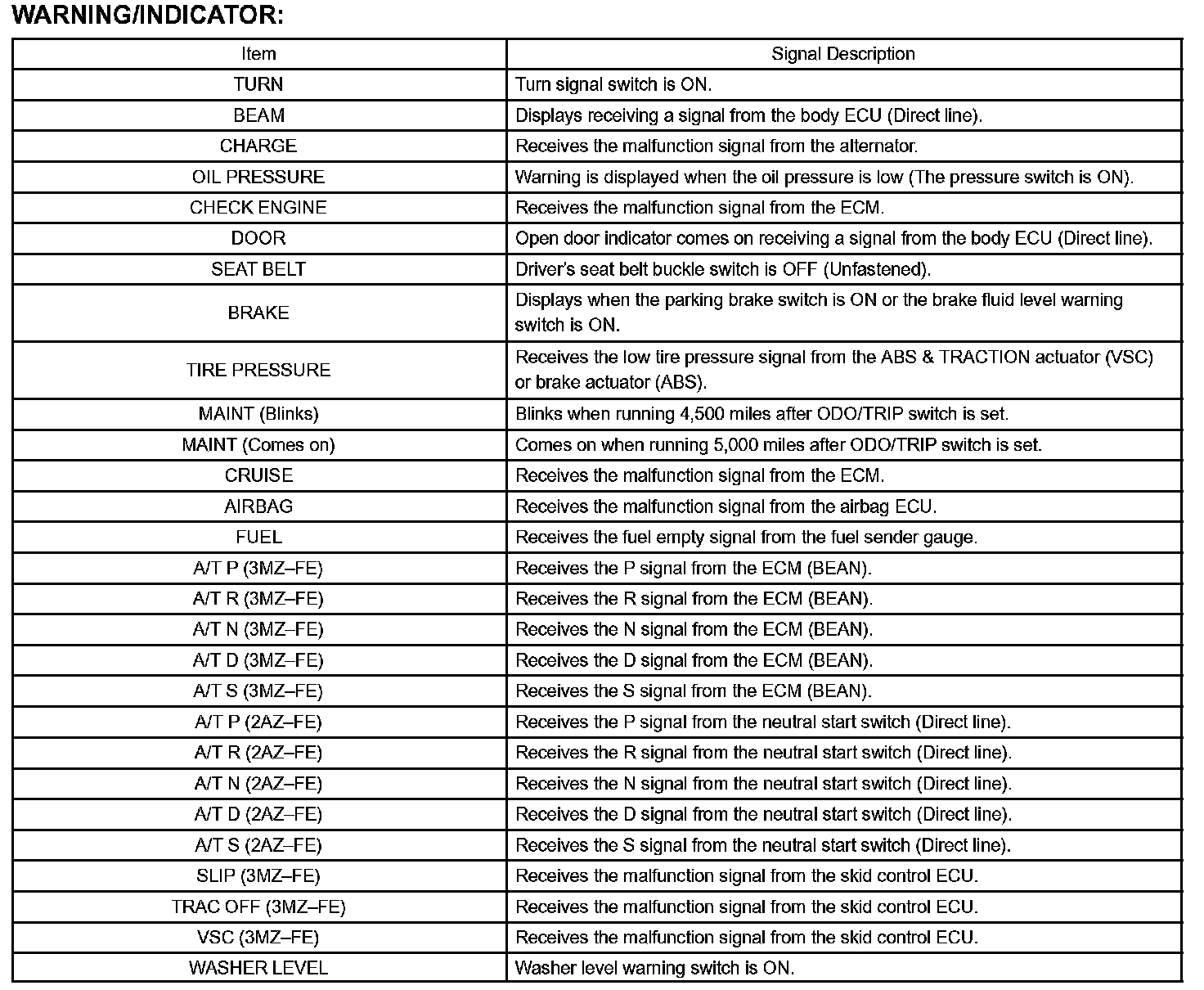

1. METER GAUGE AND WARNING/INDICATOR

2. THE COMBINATION METER IN CAMRY SOLARA HAS THE FOLLOWING FEATURES:

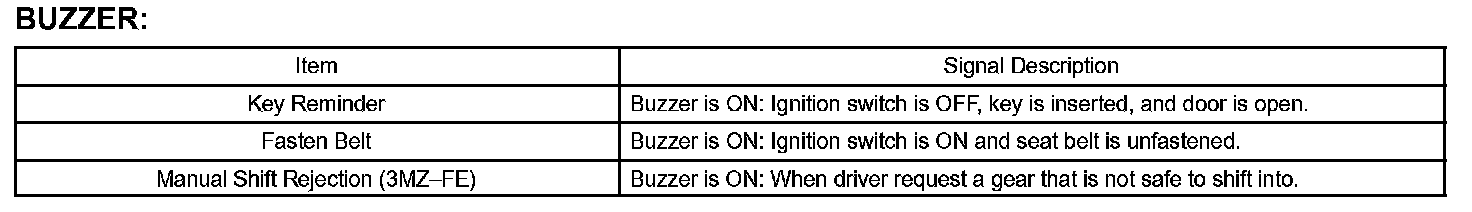

a. Built-in buzzer for the reminder system (light, key, and seat belt)
b. Integrated rheostat, trip and odometer knobs.
- Rotate knob to adjust interior illumination.
- Press and release knob to scroll through trip "A", trip "B", and odometer features.
- Press and hold the trip knob to reset trip meter functions.

c. Oil maintenance indicator
- 4,500 miles after ODO/TRIP switch is set, the maintenance indicator begins to blink for 15 seconds after the ignition switch is turned to the ON position.
- 5,000 miles after ODO/TRIP switch is set, the maintenance indicator comes on.
- Press and hold the trip knob to reset the oil maintenance indicator.

d. Clock (Multifunction display)
- The following are the features: Instant fuel consumption, Average fuel consumption, Distance to empty, Average speed, Elapsed time, Clock, Outside temperature
- Press "H" and "M" buttons at the same time (within 240 ms of each other) to switch between Fahrenheit and Celsius.
- Press and release the "DISP" switch on the steering wheel to scroll through trip computer functions.
- Press and hold the "DISP" switch on the steering wheel for 0.6 seconds or more to reset the stored values.
